SECO Parts and Equipment

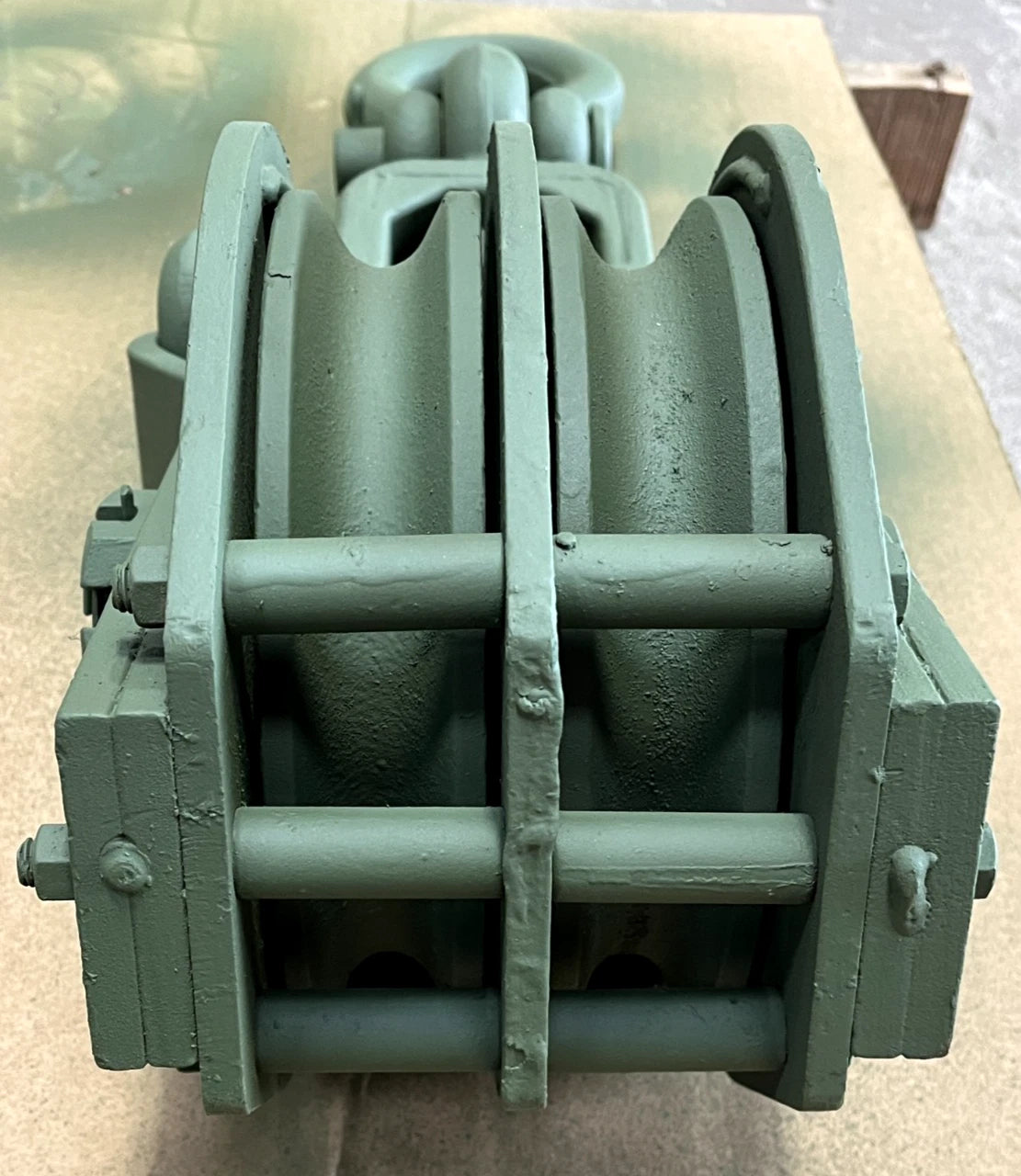

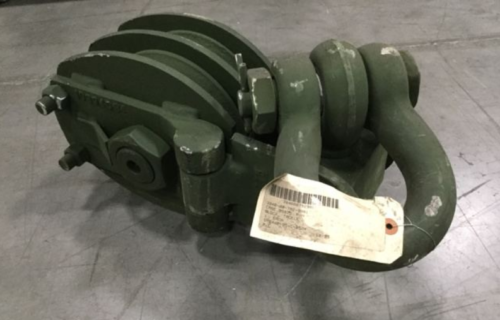

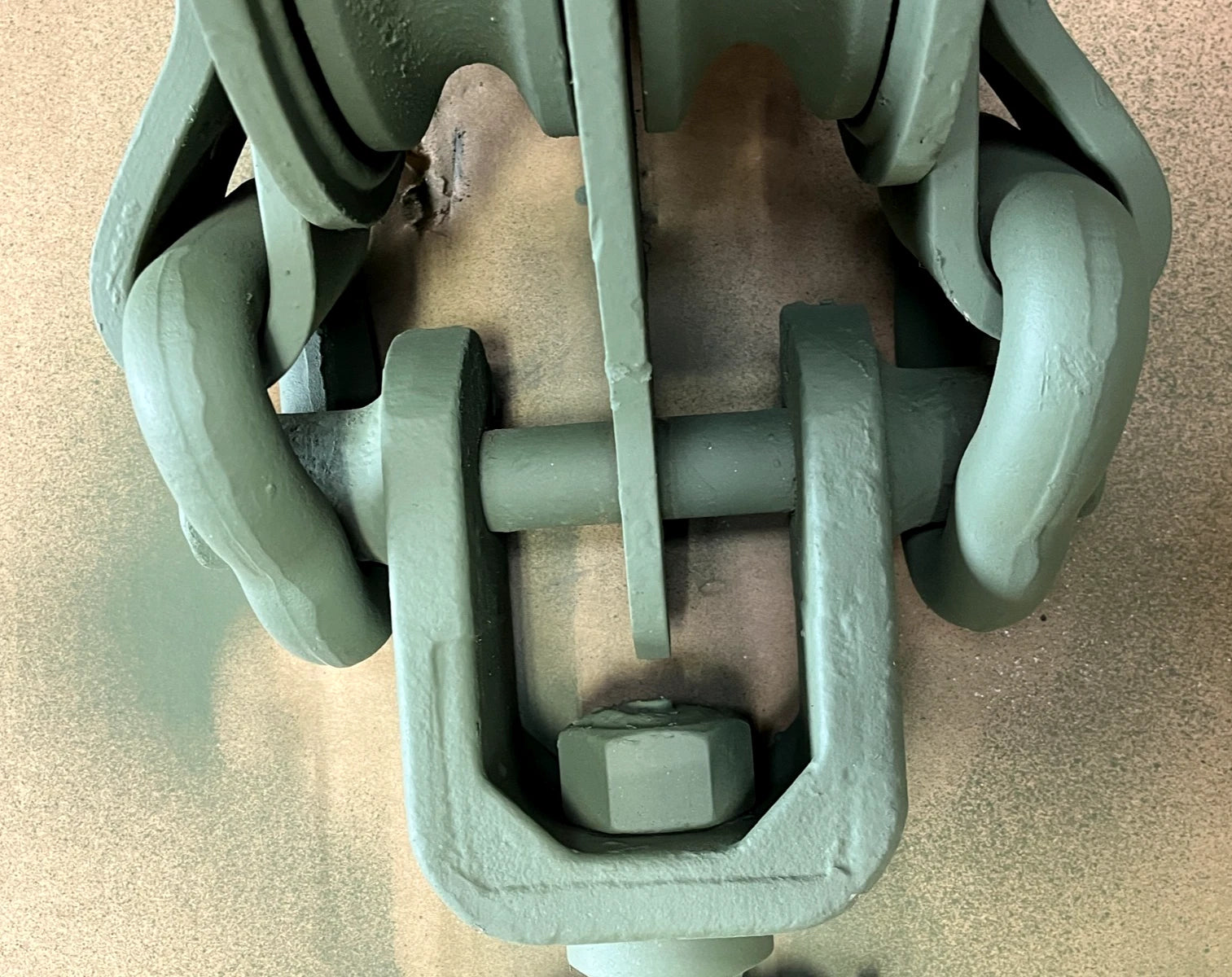

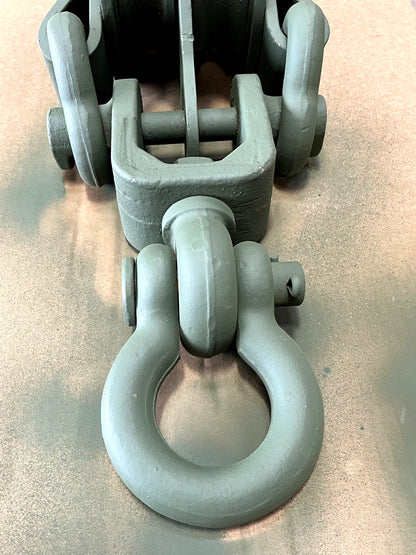

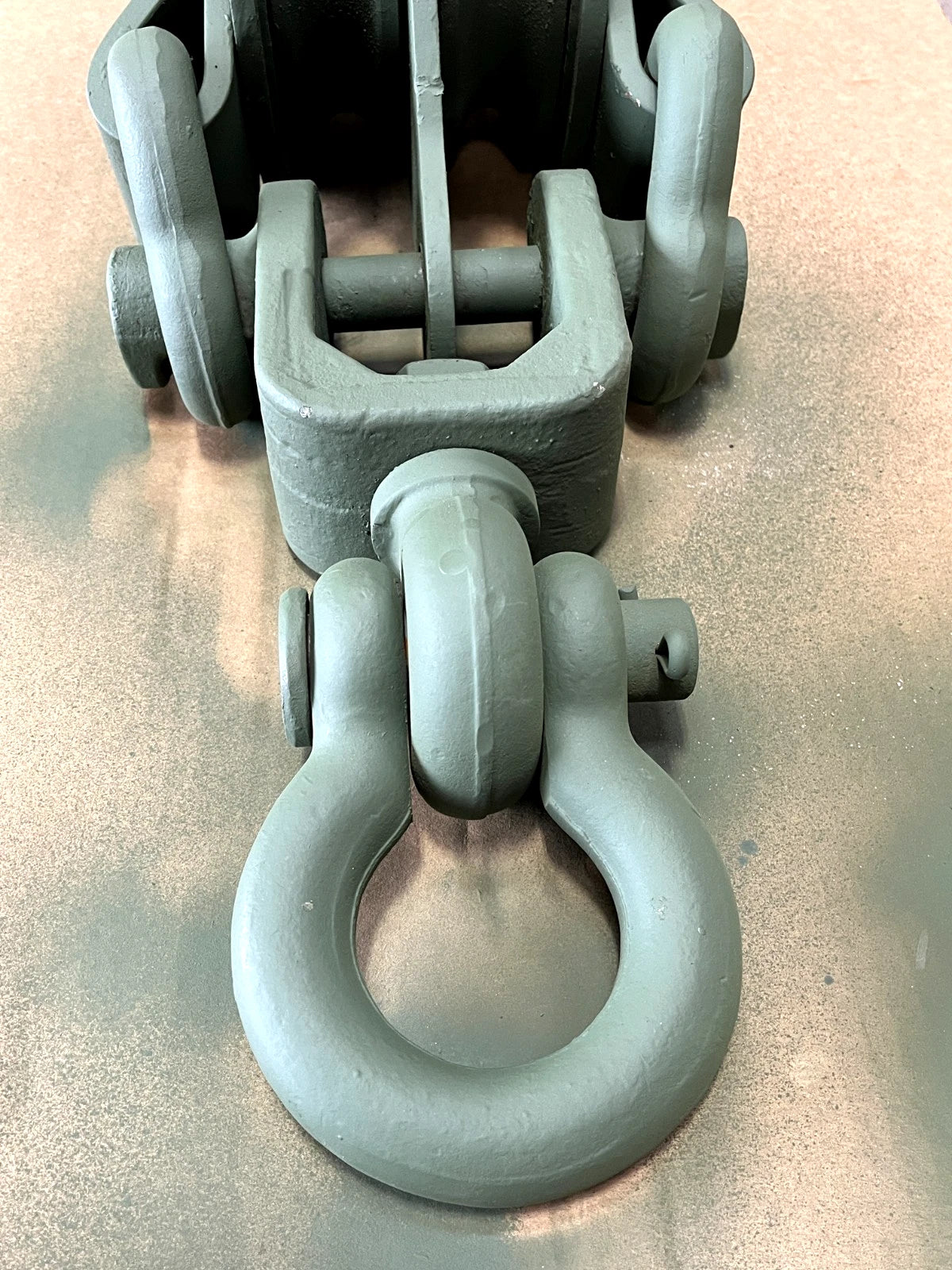

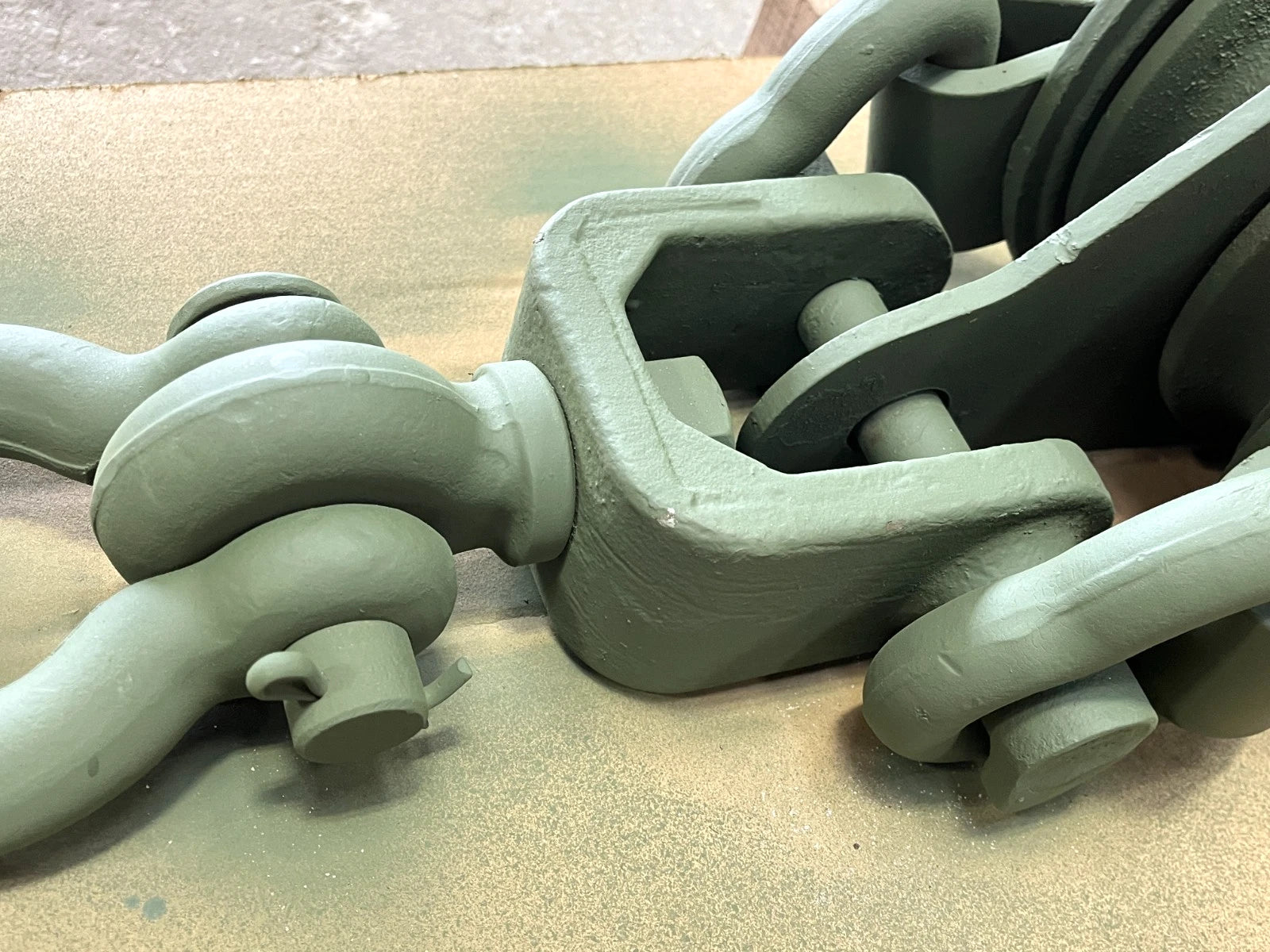

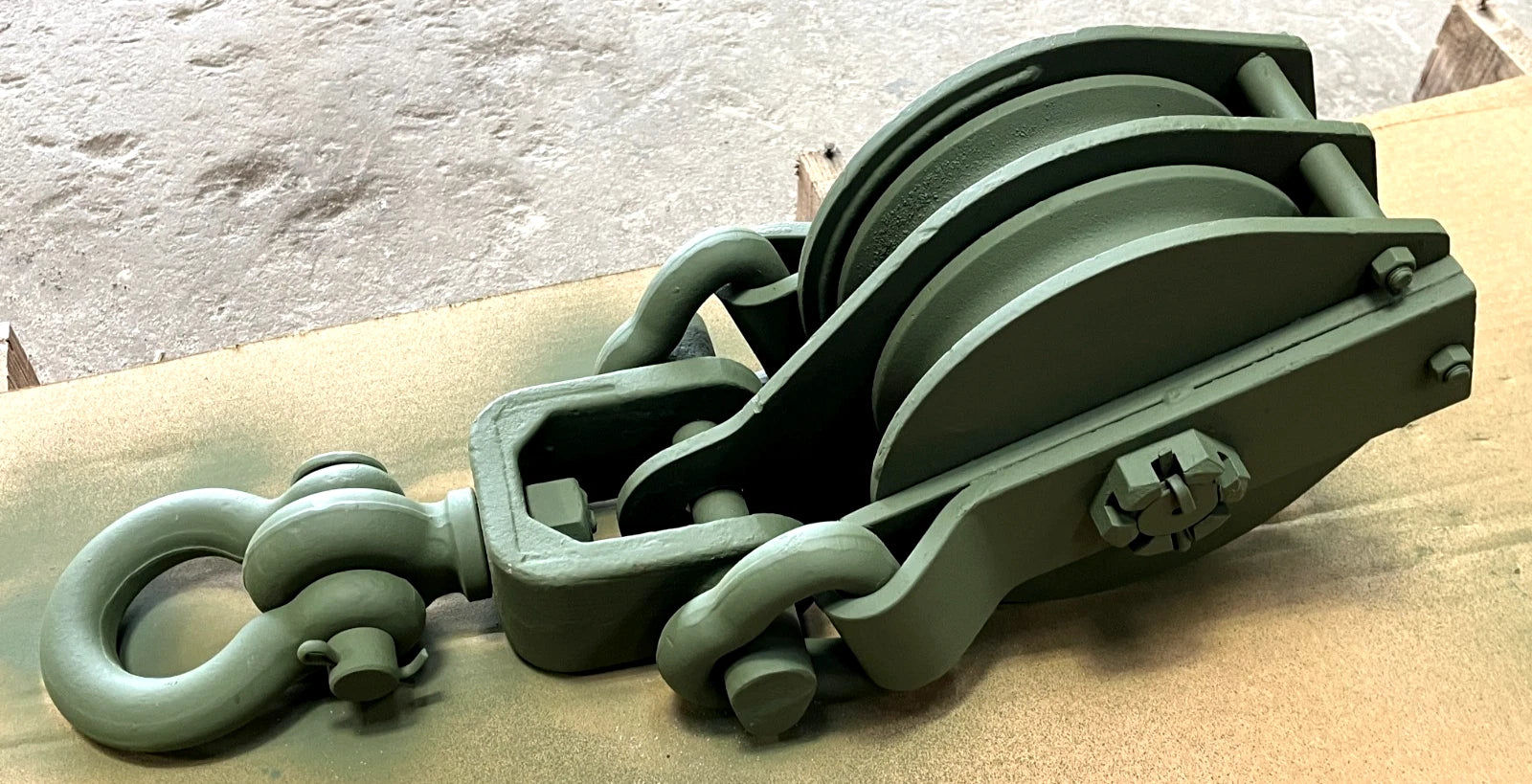

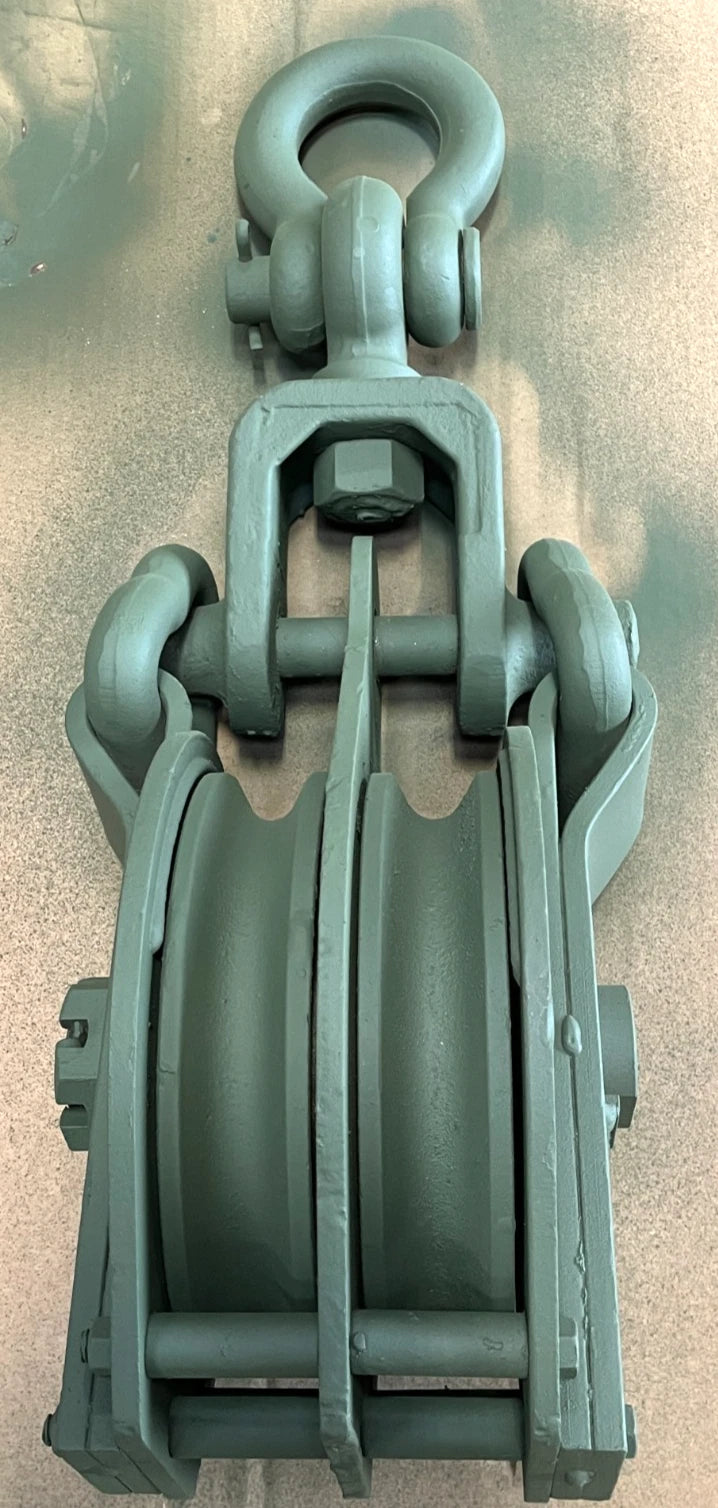

5/8 X 8 INCH DOUBLE SHEAVE SNATCH BLOCK 50,000 Pound Capacity 10884778
5/8 X 8 INCH DOUBLE SHEAVE SNATCH BLOCK 50,000 Pound Capacity 10884778
Couldn't load pickup availability
5/8 X 8 INCH DOUBLE SHEAVE SNATCH BLOCK 50,000 Pound Capacity 10884778
New Block and Tackle Heavy Duty Military Truck
5/8 X 8 INCH DOUBLE SHEAVE BLOCK
Please note: Freight is a flat fee of the amount charged when shipped to either a commercial address or freight terminal. Residential shipping is available, but will cost $100 more. Freight prices are subject to change depending on delivery address.
BEARING TYPE ROLLER
MAXIMUM LOAD RATING 50000.0 POUNDS
BLOCK TYPE REGULAR
SHEAVE QUANTITY 2
TACKLE ACCOMMODATED TYPE WIRE ROPE
ANTITOPPLING DEVICE NOT INCLUDED
SHELL LENGTH 9.000 INCHES NOMINAL
SHEAVE OUTSIDE DIAMETER 7.750 INCHES NOMINAL
CENTER PIN DIAMETER 2.000 INCHES NOMINAL
SHEAVE BEARING LUBRICATION METHOD PRESSURE GREASE FITTING
MAXIMUM TACKLE DIAMETER ACCOMMODATED 0.625 INCHES
TACKLE LOCKING DEVICE NOT INCLUDED
ATTACHMENT STYLE DRILLED SWIVEL EYE AND SHACKLE
MATERIAL AND LOCATION STEEL OVERALL
SURFACE TREATMENT AND LOCATION PAINTED OVERALL
SPECIAL FEATURES OLIVE DRAB COLOR
STYLE DESIGNATOR OVAL PATTERN
