AIRCRAFT A-10 THUNDERBOLT II WESCO HL746-14-23 STEEL PIN-RIVET 5320-01-505-3075

SPS TECHNOLOGIES HL746-14-23 Pin-Rivet (NSN 5320-01-505-3075)

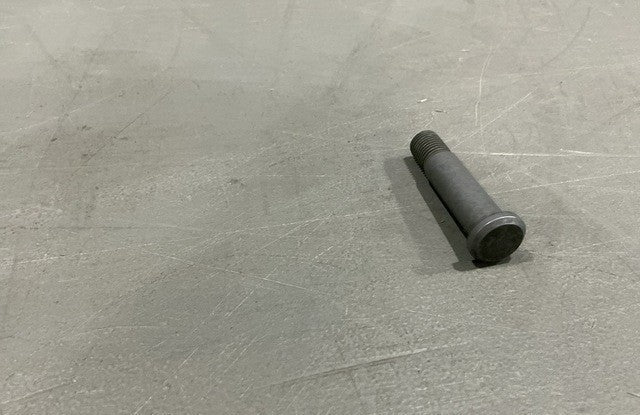

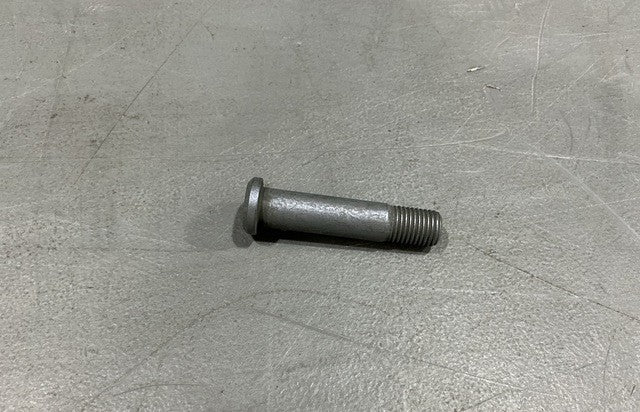

SPS Technologies HL746-14-23 steel Hi-Lok style pin-rivet with solid film lubricant coating.

Part Information

• Manufacturer: SPS Technologies, LLC
• Part Number: HL746-14-23
• NSN: 5320-01-505-3075

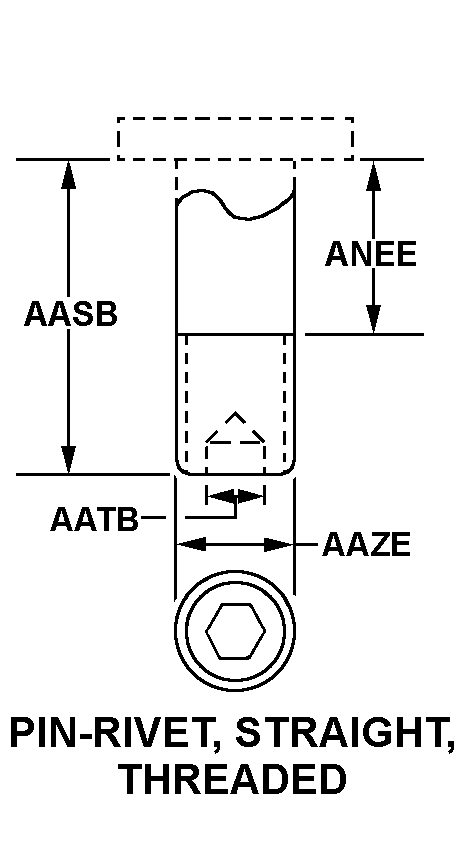

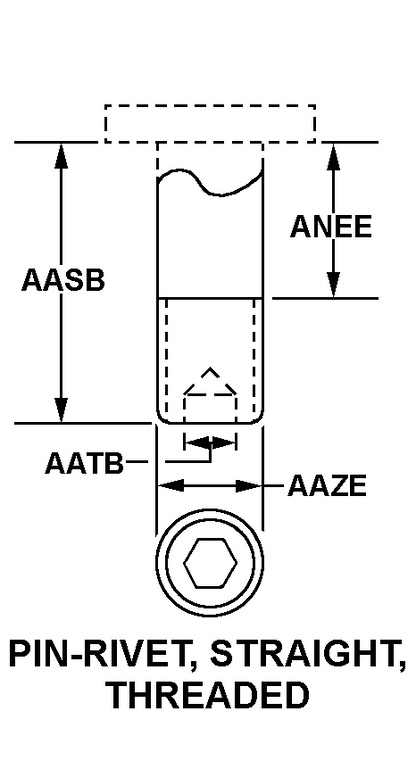

Specifications

• Material: Steel Comp XM-13 (per A-A-59629)
• Thread: 0.4375" nominal, 20 TPI, UNJF, Class 3A, right-hand
• Shank Diameter: 0.4516"–0.4526"
• Fastener Length: 2.505"–2.525"
• Grip Length: 1.870"–1.880"
• Head Height: 0.150"–0.160"
• Head Major Diameter: 0.641"–0.676"
• Width Between Flats: 0.233"–0.253"
• Double Shear Strength: 40,300 PSI
• Lubrication: Solid film

Technical References

• TB 11-5820-890-20-49
• TM-9-2350-277-24P

Applications

• A-10 Thunderbolt II aircraft
