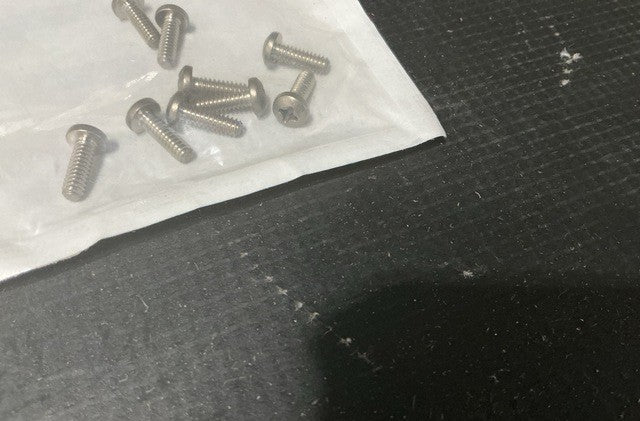

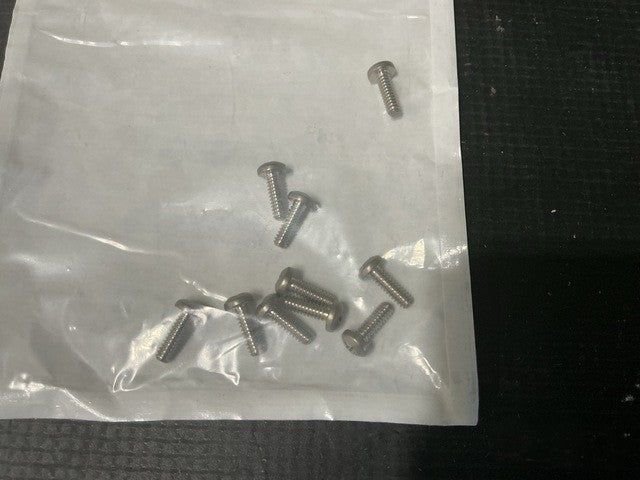

Aircraft A-6E Intruder FS2002-06/206C Machine Screw 965812-206C | NSN 5305-00-316-7741
Aircraft A-6E Intruder FS2002-06/206C Machine Screw 965812-206C | NSN 5305-00-316-7741
Regular price
$107.10 USD
Regular price
Sale price
$107.10 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5305-00-316-7741 Specs and cross-references for NSN 5305-00-316-7741 (opens in a new tab) ↗
ALL MANUFACTURERS INC AOL4167-206 Machine Screw (NSN 5305-00-316-7741)
Externally threaded machine screw, UNJC thread series, right-hand thread.
Part Information
- Manufacturer: All Manufacturers, Inc.
- Part Number: AOL4167-206
- NSN: 5305-00-316-7741
Specifications
- Thread: 0.138 in nominal diameter, 32 threads per inch, UNJC, Class 3A, right-hand
- Thread Length: 0.345–0.438 in
- Fastener Length: 0.407–0.438 in
- Head Diameter: 0.256–0.270 in
- Head Height: 0.087–0.097 in
- Material: Iron Alloy 660 (A-A-5737)
- Surface Treatment: Passivate (MIL-F-14072, E300)
- Minimum Tensile Strength: 160,000 PSI
