Aircraft A10 Grumman MIL-DTL-83298 Nonmetallic Hose MIL-H-83297 | NSN 4720-00-421-1321
Aircraft A10 Grumman MIL-DTL-83298 Nonmetallic Hose MIL-H-83297 | NSN 4720-00-421-1321
Regular price
$103.93 USD
Regular price
Sale price
$103.93 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4720-00-421-1321 Specs and cross-references for NSN 4720-00-421-1321 (opens in a new tab) ↗
4720PL0947309 Nonmetallic Hose (NSN 4720-00-421-1321)

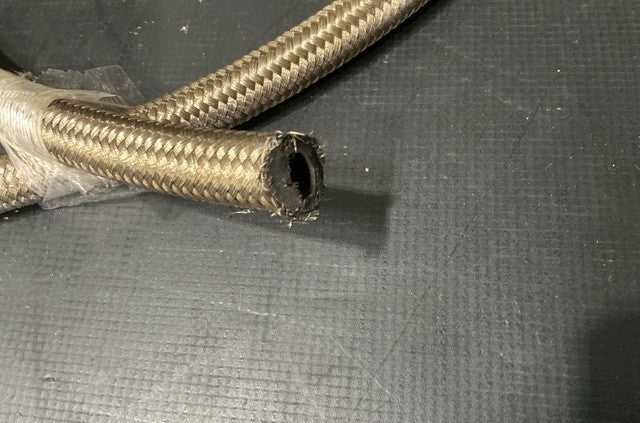

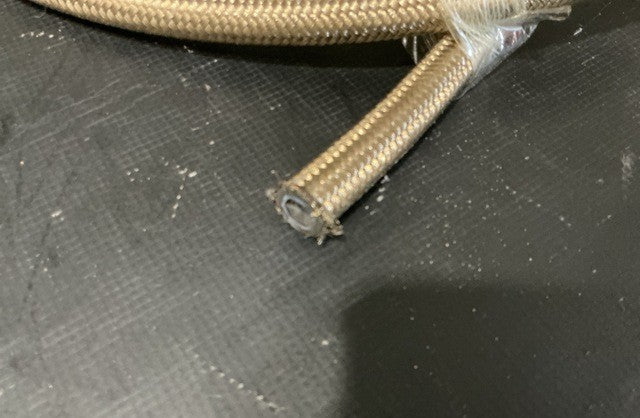

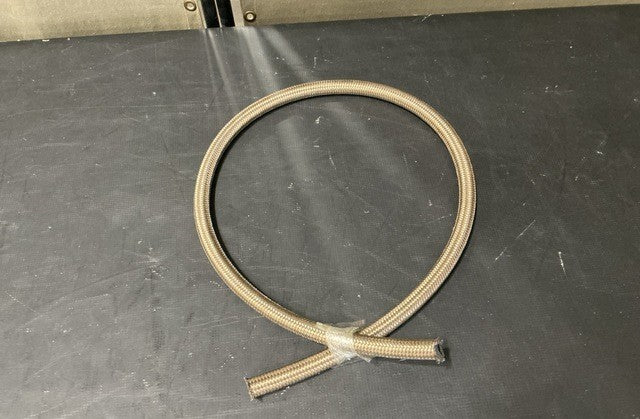

PTFE-tube nonmetallic hose with stainless steel braided outer layer, manufactured to MIL-H-83297.
Part Information
- Part Number: 4720PL0947309
- NSN: 4720-00-421-1321
Specifications
- Inside Diameter: 0.425 in minimum
- Outside Diameter: 0.742 in maximum
- Minimum Bend Radius: 5.750 in
- Operating Pressure: 3,000 PSI maximum
- Burst Pressure: 14,000 PSI
- Hydrostatic Test Pressure: 6,000 PSI
- Temperature Range: -67°F to 400°F
- Tube Material: PTFE (Polytetrafluoroethylene)
- Outer Layer: Braided corrosion-resistant steel wire
- Exterior Color: Natural
- Environmental Protection: Oil and corrosion resistant
- Interior Surface: Smooth
- Specification: MIL-H-83297
- Size: 8
