AIRCRAFT AWACS E-3A DPQ7900-8F-A-2 PANEL FASTENER 581R984H08 5325-01-033-4447
AIRCRAFT AWACS E-3A DPQ7900-8F-A-2 PANEL FASTENER 581R984H08 5325-01-033-4447
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5325-01-033-4447 Specs and cross-references for NSN 5325-01-033-4447 (opens in a new tab) ↗

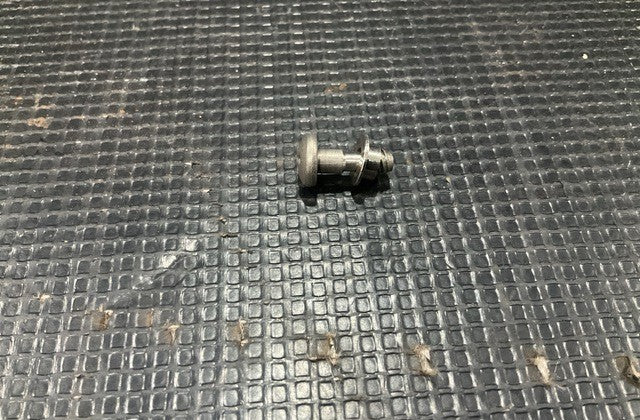

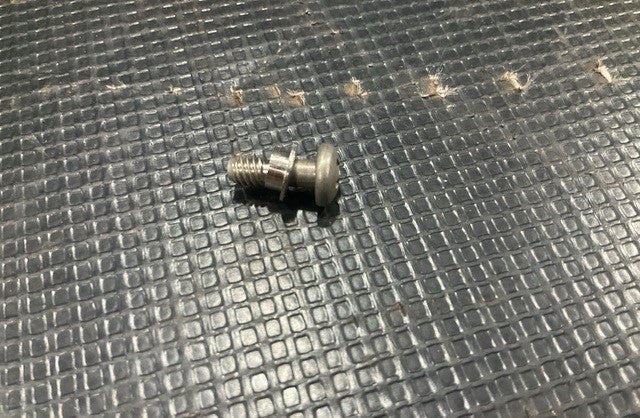

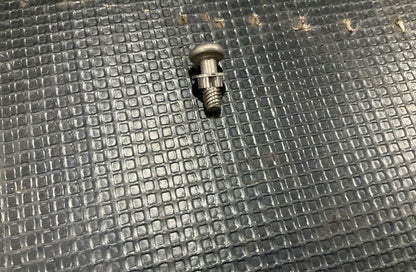

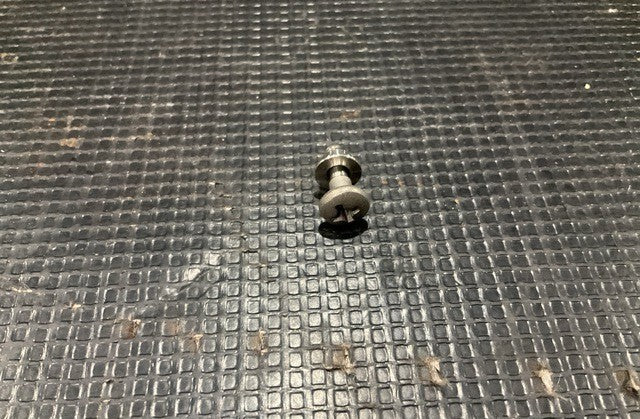

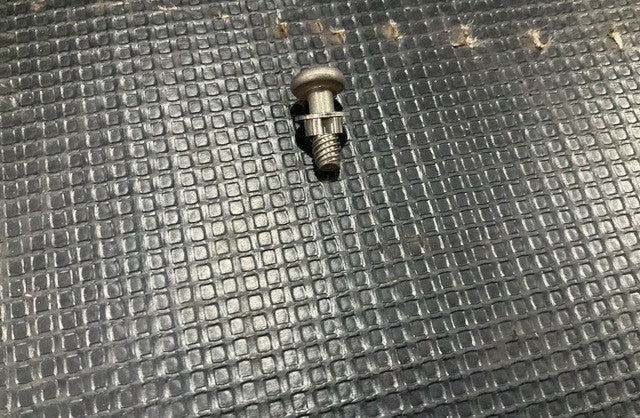

NORTHROP GRUMMAN 581R984H08 Panel Fastener (NSN 5325-01-033-4447)
Steel panel fastener with passivated sleeve, quarter-turn screw type.
Part Information
- Manufacturer: Northrop Grumman Systems Corporation
- Part Number: 581R984H08
- NSN: 5325-01-033-4447
Specifications
- Material: Steel, AMS 5735 / AMS 5736 / AMS 5737
- Screw: Steel, QQ-S-763, Class 304
- Sleeve: Passivated, QQ-P-35
- Overall length: 0.560 in ±0.025 in
- Sleeve diameter: 0.304–0.324 in
- Head diameter: 0.215 in
- Head length: 0.085 in
- Thread: 0.164-32 UNC 3A
- Thread length: 0.180 in ±0.010 in
- Shank diameter: 0.117–0.122 in
