AIRCRAFT B-1 SUPPORT EQUIPMENT 3483 PIPE TO TUBE STRAIGHT ADAPTER 4730010932564

PARKER-HANNIFIN 46F-4-6 Straight Pipe-to-Tube Adapter (NSN 4730-01-093-2564)

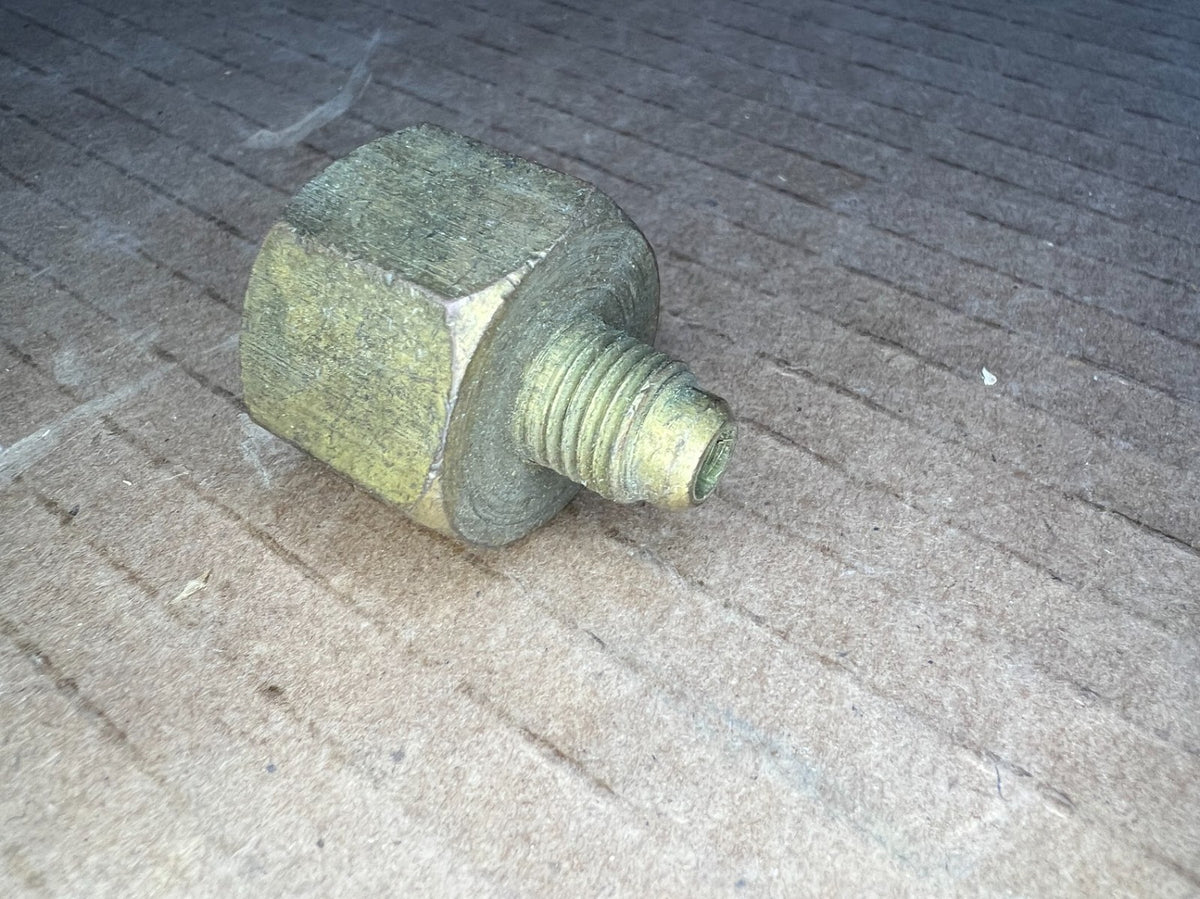

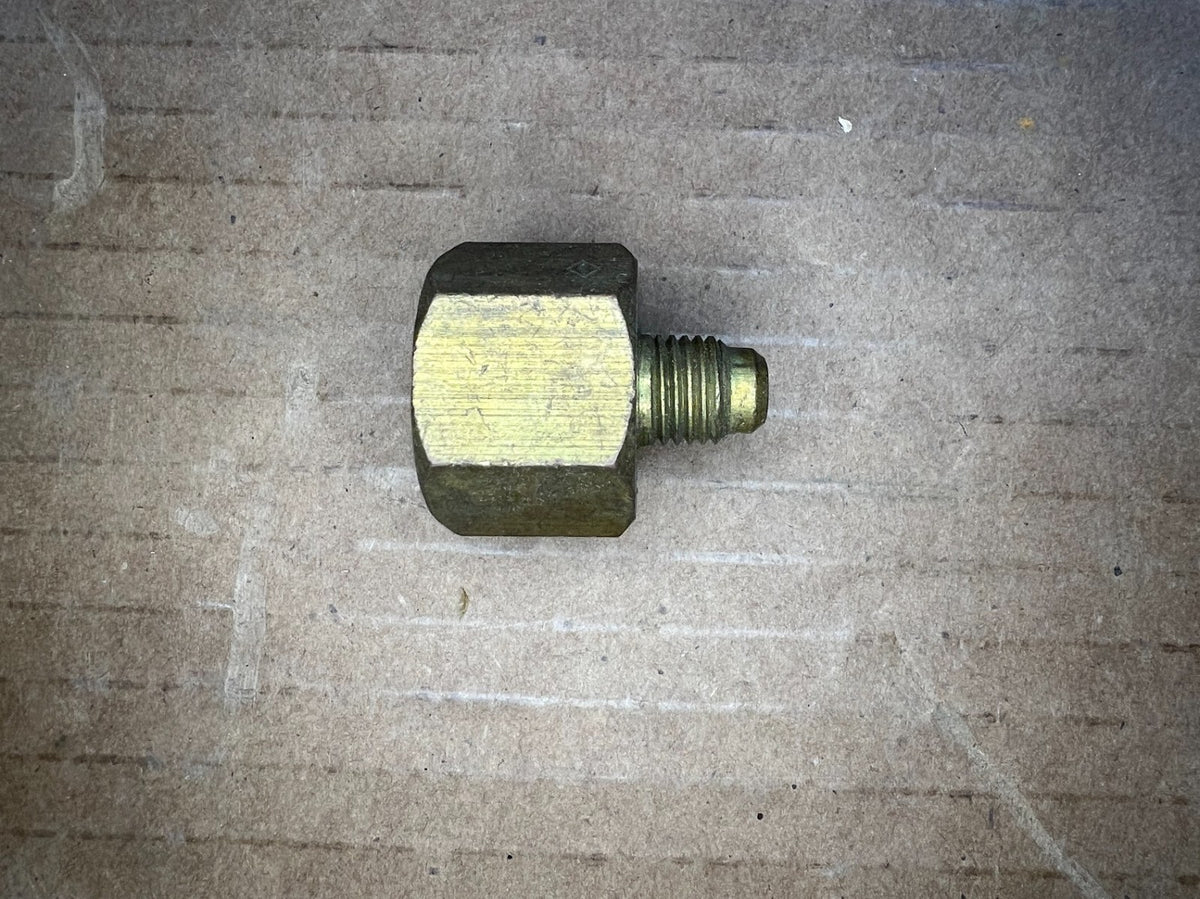

Copper alloy straight adapter with external UNF tube thread on one end and internal NPTF pipe thread on the other.

Part Information

• Manufacturer: Parker-Hannifin Corp
• Part Number: 46F-4-6
• NSN: 4730-01-093-2564

Specifications

• Thread Class: 2A

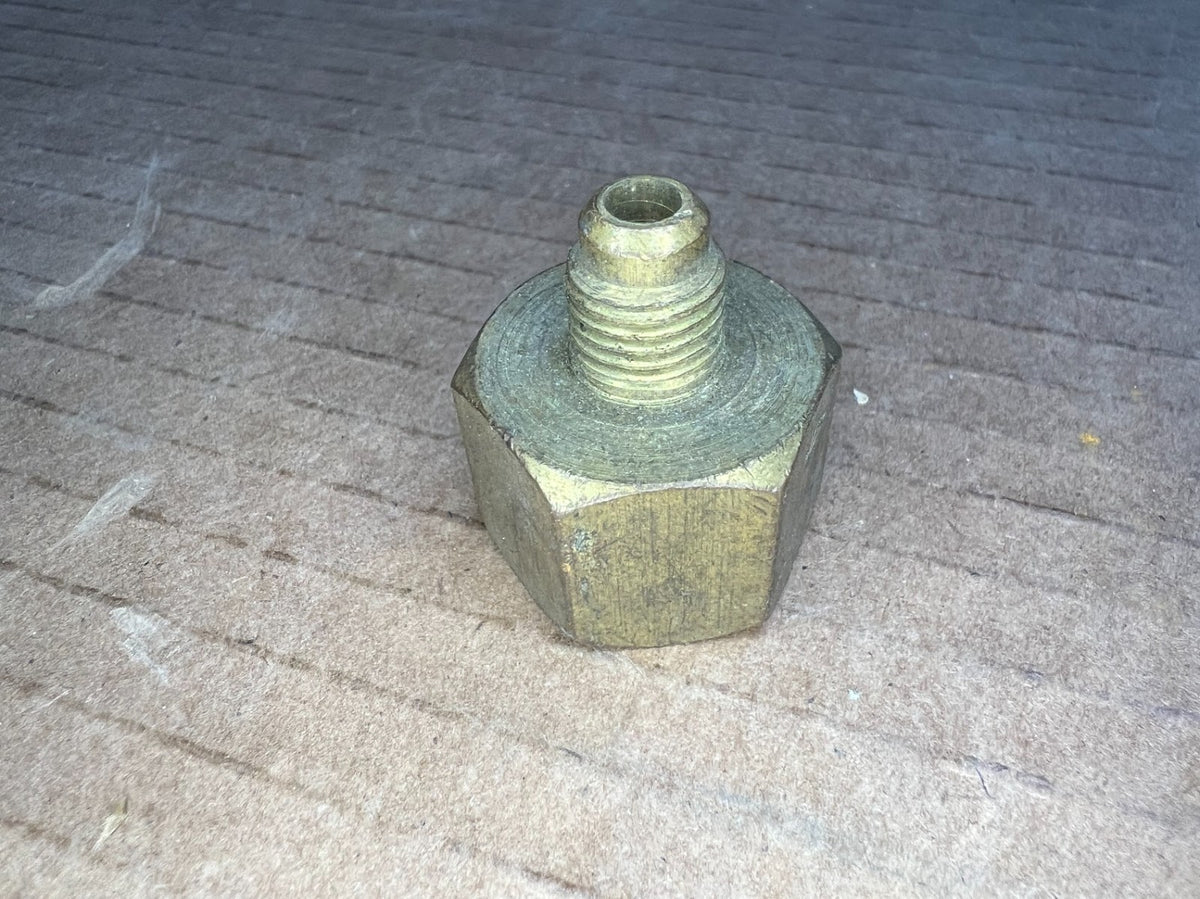

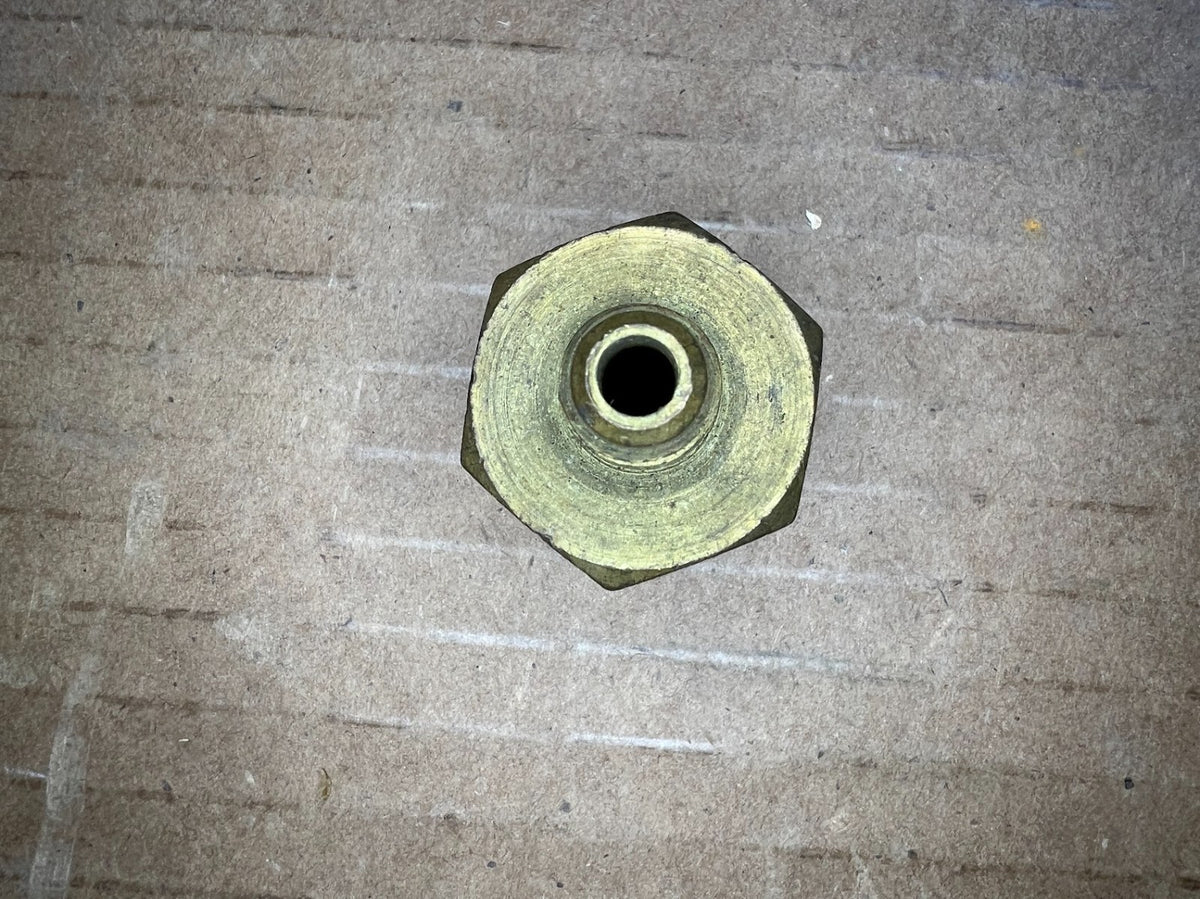

• First End: Threaded external tube, UNF, 0.438 in nominal thread size, 45° seat angle, accommodates 0.250 in OD tube

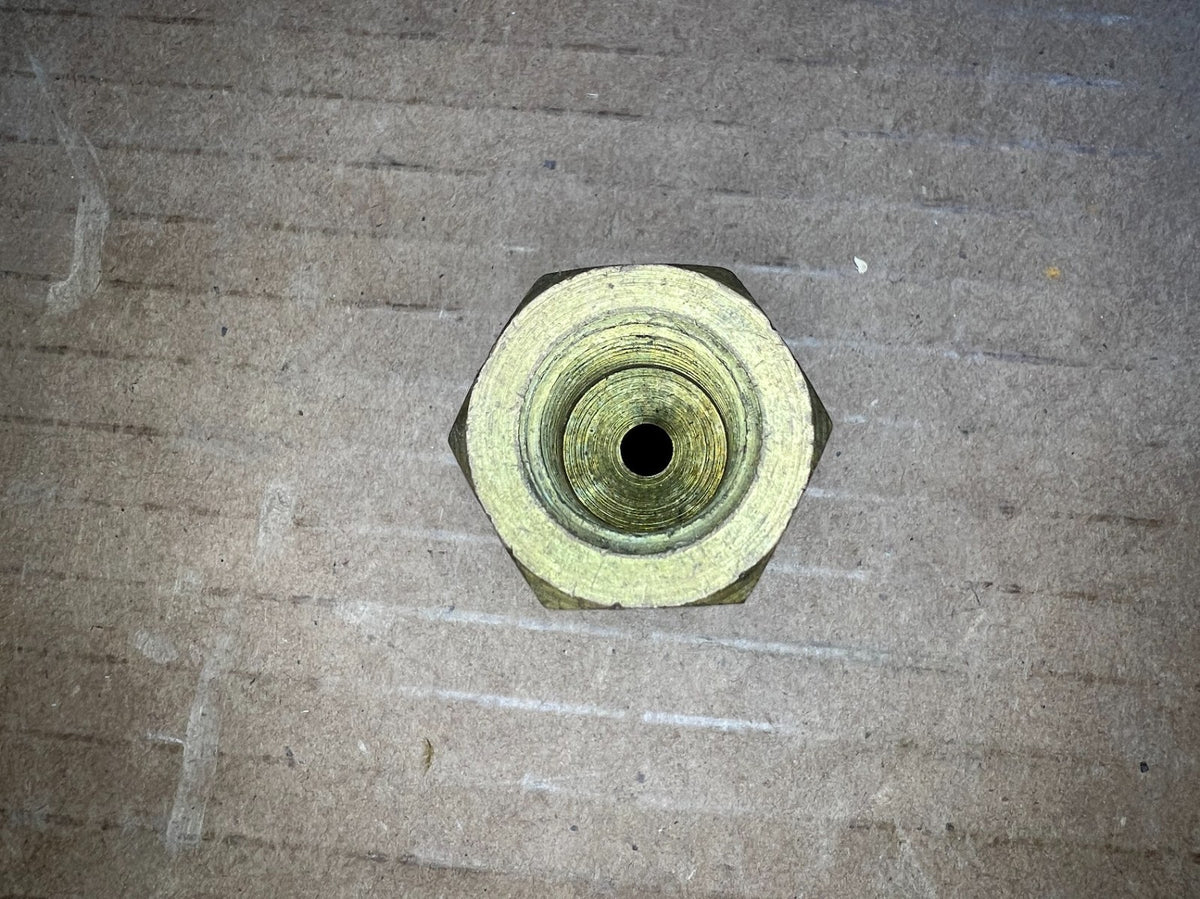

• Second End: Threaded internal pipe, NPTF, 0.375 in nominal thread size

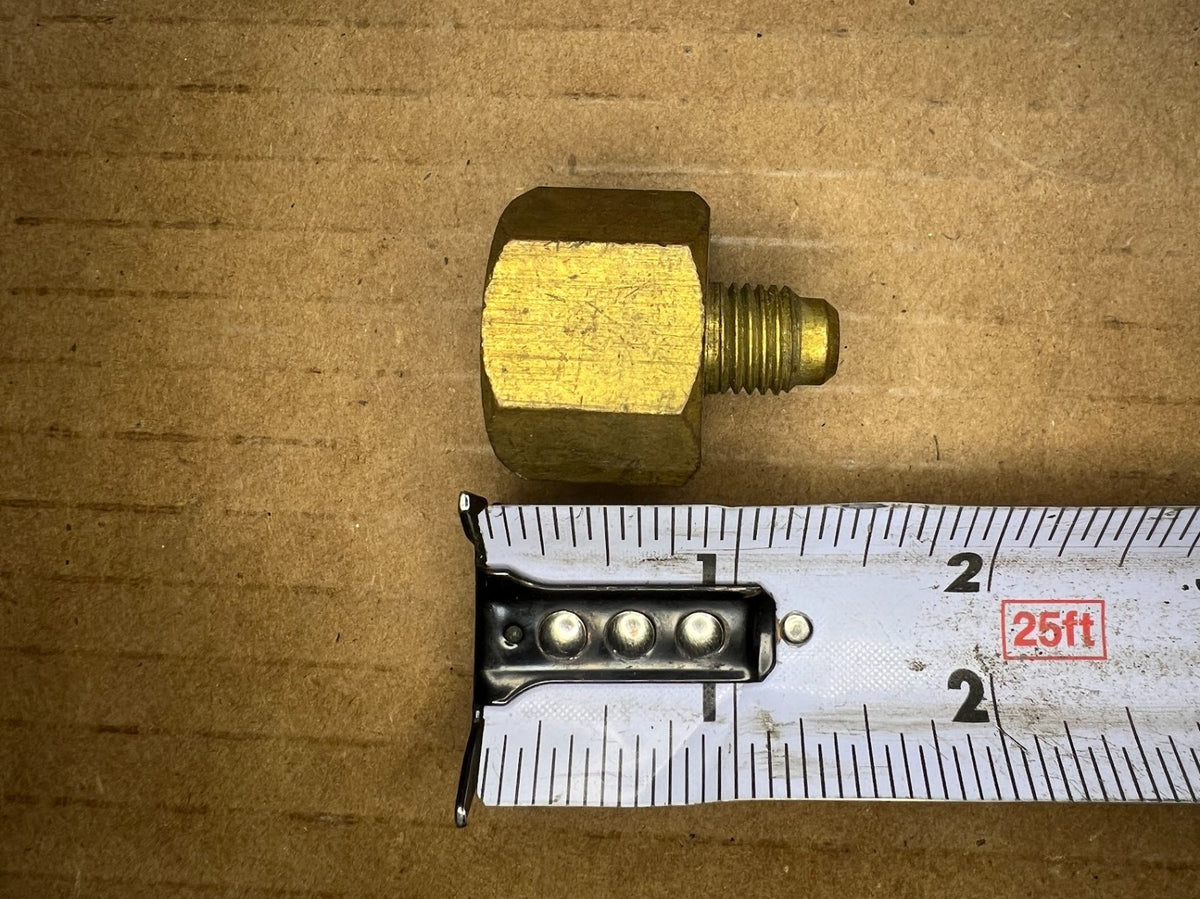

• Overall Length: 1.260 in
• Material: Copper Alloy 360 or Copper Alloy
• Max Operating Pressure: 3800 PSI
• Max Operating Temp: 250°F
• Media: Refrigeration compound, salt water
