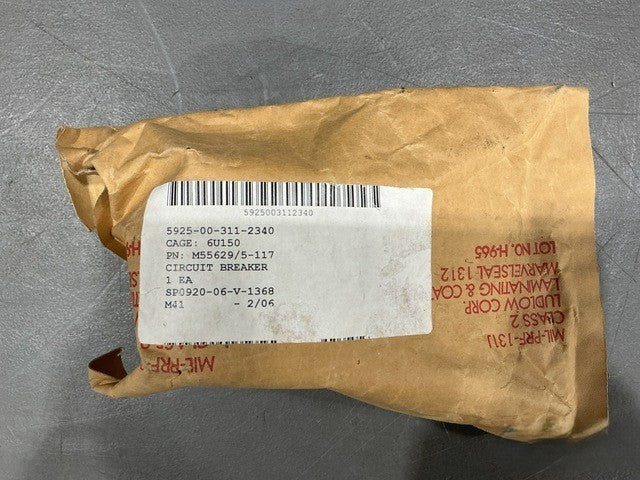

AIRCRAFT B-52 SUPPORT EQUIPMENT M55629/5-117 CIRCUIT BREAKER 5925-00-311-2340

EATON CORP HEINEMANN PRODUCTS AM333MG6-30-120-15-400 CIRCUIT BREAKER (5925-00-311-2340)

3-pole circuit breaker, magnetic trip with time delay, toggle actuator at each pole, for B-52 aircraft support equipment.

Part Information

• Manufacturer: Eaton Corp Heinemann Products
• Part Number: AM333MG6-30-120-15-400
• NSN: 5925-00-311-2340
• End Item: B-52

Specifications

• Pole Quantity: 3
• Maximum Continuous Load Current Rating per Pole: 30.0 A AC
• Operating Voltage per Pole: 240.0 V AC
• Maximum Interrupting Capacity per Pole: 1000.0 A AC
• Frequency: 400 Hz
• Trip Release Method: Magnetic, Time Delay
• Reset Method: Manual
• Main Contact Tripping Mechanism: Trip Free
• Manual Actuator: Toggle (3), Trip-Reset
• Arc Quenching Method: Magnetic Blowout
• Case Material: Plastic
• Thread: 0.138 in, 32 TPI, UNC
• Terminal Type: Threaded Stud (6)
• Specification: 81349-IL-C-55629 TO 5
