Aircraft C/KC-135 Ultra Industries 8760611 Steel Pad Eye | NSN 5340-01-307-8043 USA
Aircraft C/KC-135 Ultra Industries 8760611 Steel Pad Eye | NSN 5340-01-307-8043 USA
Regular price
$111.21 USD
Regular price
Sale price
$111.21 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5340-01-307-8043 Specs and cross-references for NSN 5340-01-307-8043 (opens in a new tab) ↗

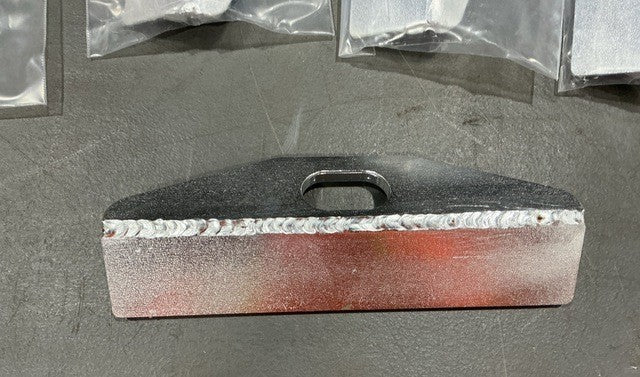

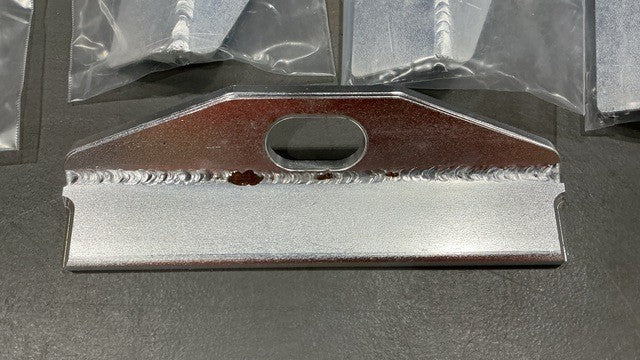

8760611-10 PAD EYE (NSN 5340-01-307-8043)
Steel pad eye, 4130 steel, cadmium and chromate plated, for the C/KC-135.
Part Information
- Design Control Activity: United States Air Force
- Part Number: 8760611-10
- NSN: 5340-01-307-8043
- End Item: C/KC-135
Specifications
- Material: Steel Comp 4130 (QQ-S-627)
- Surface Treatment: Cadmium and Chromate (QQ--416,TYE 2,CLASS 2)
- Overall Length: 6.500 in
- Overall Width: 1.300 in
- Eye Stock Thickness: 0.250 in
- Pad Thickness: 0.250 in
- Length, Plate End to Eye Centerline: 3.250 in
- Eye Inside Long Diameter: 1.250 in
- Eye Inside Short Diameter: 0.750 in
