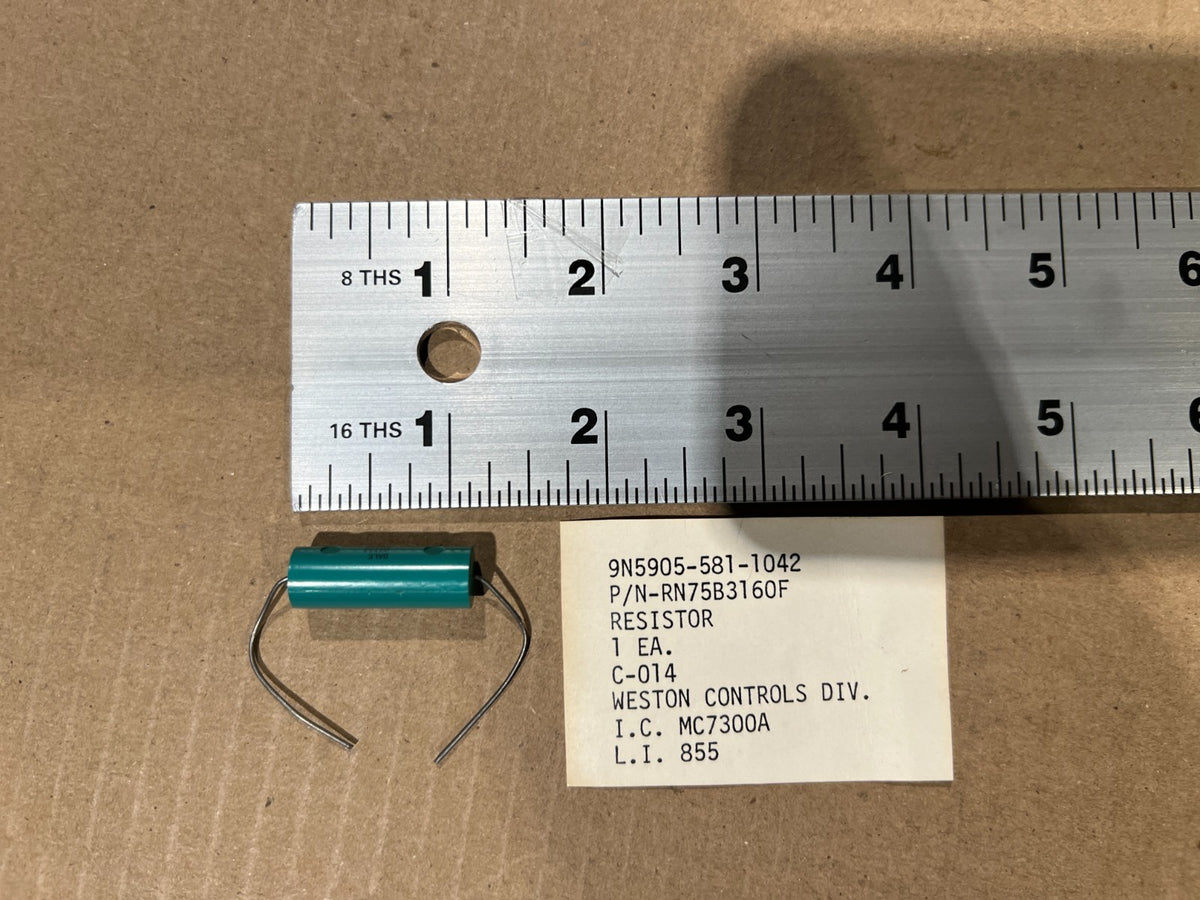

AIRCRAFT E-2C HAWKEYE RN75B3160F FILM FIXED RESISTOR MILR10509 5905-00-581-1042

MILR10509 Fixed Film Resistor (5905-00-581-1042)

Fixed film resistor, 316 ohms, for the E-2C Hawkeye.

Part Information

• Design Control Activity: Military Specifications
• Part Number: MILR10509
• NSN: 5905-00-581-1042
• End Item: E-2C Hawkeye
• CAGE Code: 81349

Specifications

• Electrical Resistance: 316 ohms
• Resistance Tolerance: ±1%
• Power Dissipation Rating: 1.0 W (free air)
• Body Diameter: 0.375 in nominal
• Body Length: 1.062 in nominal
• Temperature Coefficient of Resistance: -500 to 500 ppm/°C
• Temp Range of Temp Coefficient: -55°C to 150°C
• Ambient Temp at Zero Percent Rated Power: 150°C
• Ambient Temp at Full Rated Power: 70°C
• Enclosure Type: Encapsulated
• Terminal Type: Wire Lead
• Specification: MIL-R-10509
