Aircraft E-3A Awacs NAS77A5-020N Sleeve Bushing NAS77A5-20N | NSN 3120-01-061-8081 USA
Aircraft E-3A Awacs NAS77A5-020N Sleeve Bushing NAS77A5-20N | NSN 3120-01-061-8081 USA
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 3120-01-061-8081 Specs and cross-references for NSN 3120-01-061-8081 (opens in a new tab) ↗

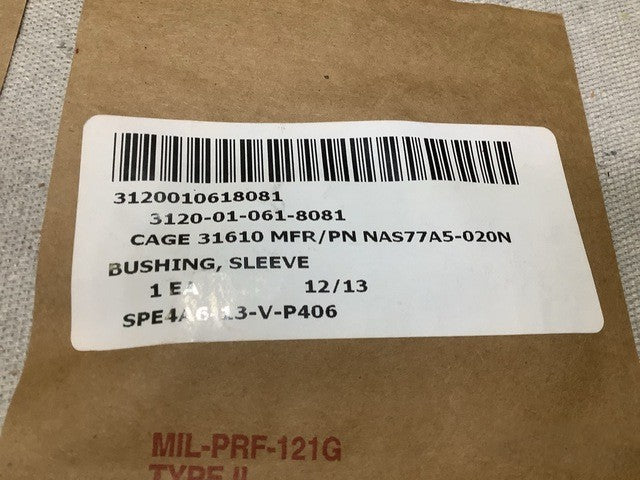

NAS77A5-020N Sleeve Bushing (NSN 3120-01-061-8081)
Copper alloy 642 sleeve bushing, cadmium plated, for the E-3A AWACS.
Part Information
- Design Control Activity: National Aerospace Standards
- Part Number: NAS77A5-020N
- NSN: 3120-01-061-8081
- End Item: E-3A AWACS
Specifications
- Overall Length: 0.2520–0.2670 in
- Body Outside Diameter: 0.4381–0.4386 in
- Body Inside Diameter: 0.3125–0.3140 in
- Flange Outside Diameter: 0.5520–0.5720 in
- Flange Width: 0.0570–0.0620 in
- Material: Copper Alloy 642, QQ-C-465
- Surface Treatment: Cadmium, QQ--416,TY 2,CL 2
- Reference Standard: 80205-NAS77
