AIRCRAFT F-16 GLENAIR 16VU116-3 E SPECIAL PURPOSE CABLE ASSEMBLY 6150-01-503-3550

LOCKHEED MARTIN CORPORATION 16VU116 Special Purpose Cable Assembly (6150-01-503-3550)

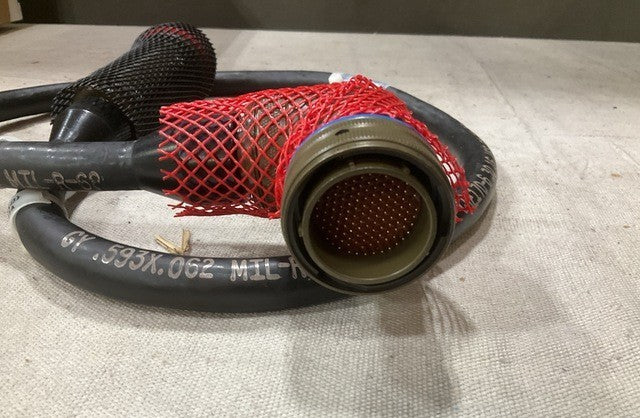

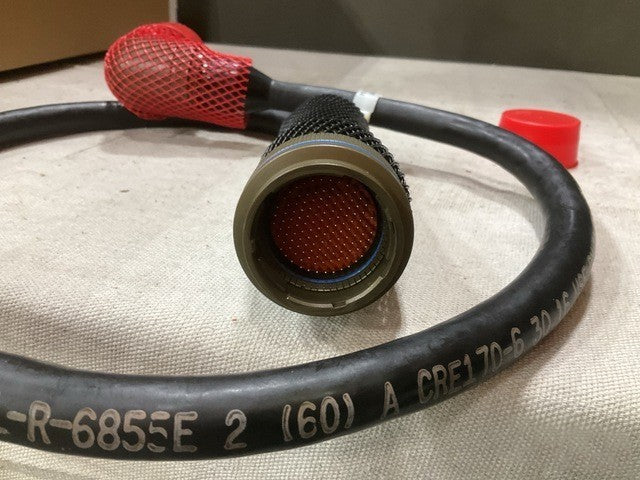

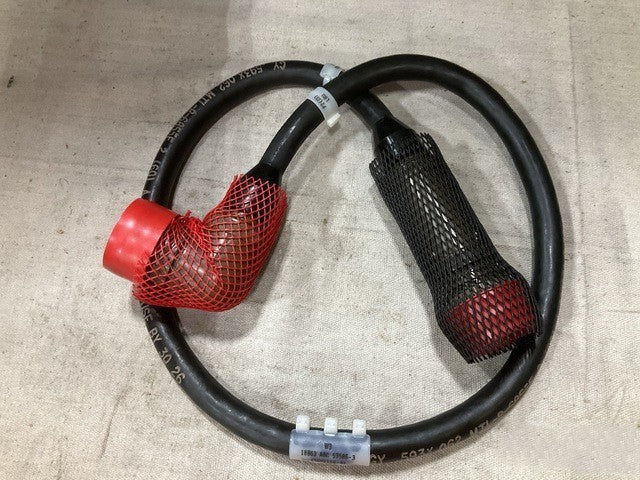

Special purpose electrical cable assembly, 48 inches overall length, terminated on both ends with connector plugs, for the F-16.

Part Information

• Manufacturer: Lockheed Martin Corporation
• Part Number: 16VU116
• NSN: 6150-01-503-3550
• End Item: F-16

Specifications

• Overall Length: 48.000 inches
• Termination Type: Both ends, all conductors, connector plug
• Conductor Quantity: 46
• Strand Quantity per Conductor: 19
• Conductor Form: All conductors stranded
• Round Conductor Size: First conductor AWG 24
• Round Conductor Size: Second conductor AWG 22
• Strand AWG Size per Conductor: 34
• Strand AWG Size per Conductor: 36
• Material: Core conductor, all conductors - Copper
• Material: First position primary insulation, all conductors - Plastic cross-linked modified ethylene tetrafluoroethylene
• Surface Treatment: Core conductor, all conductors - Tin
