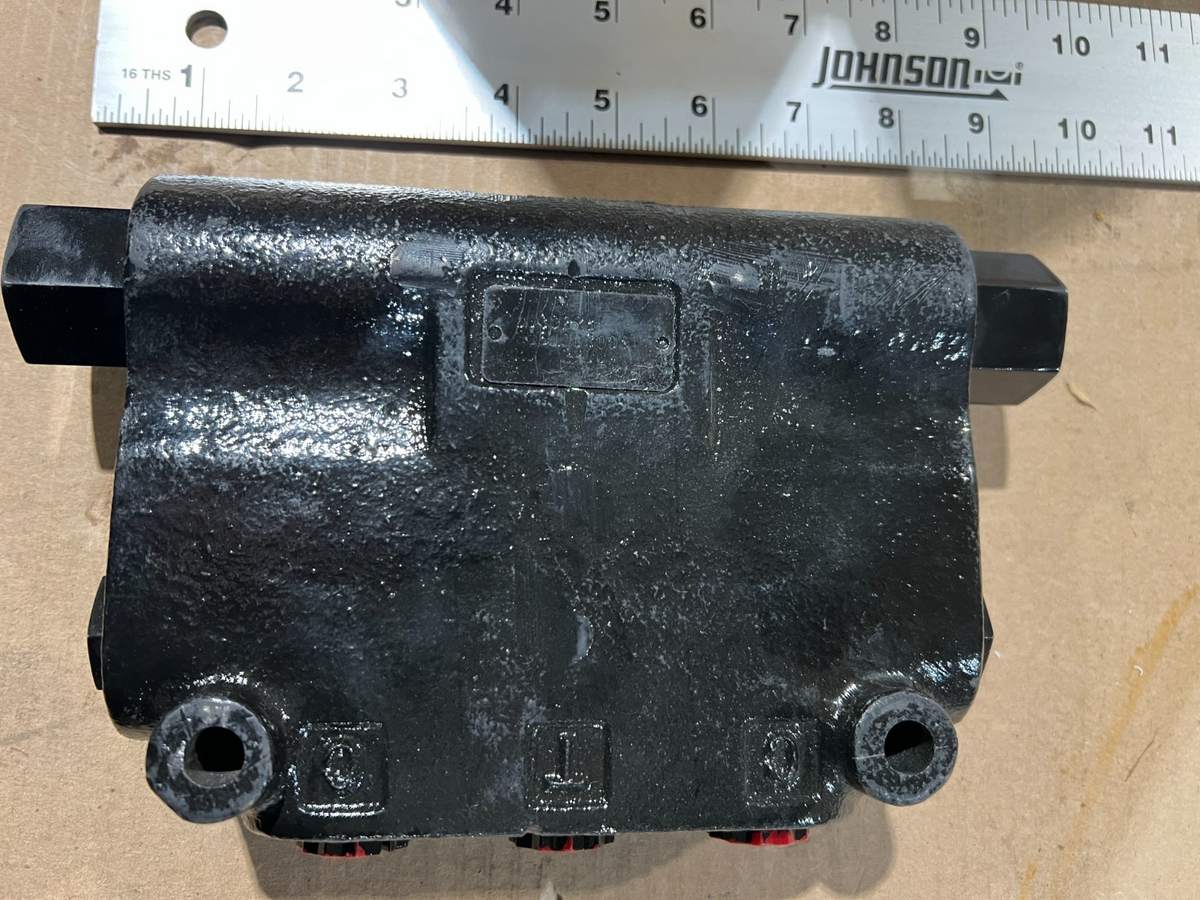

• Selector Valve F/A-18 NSN 2530-01-436-1330

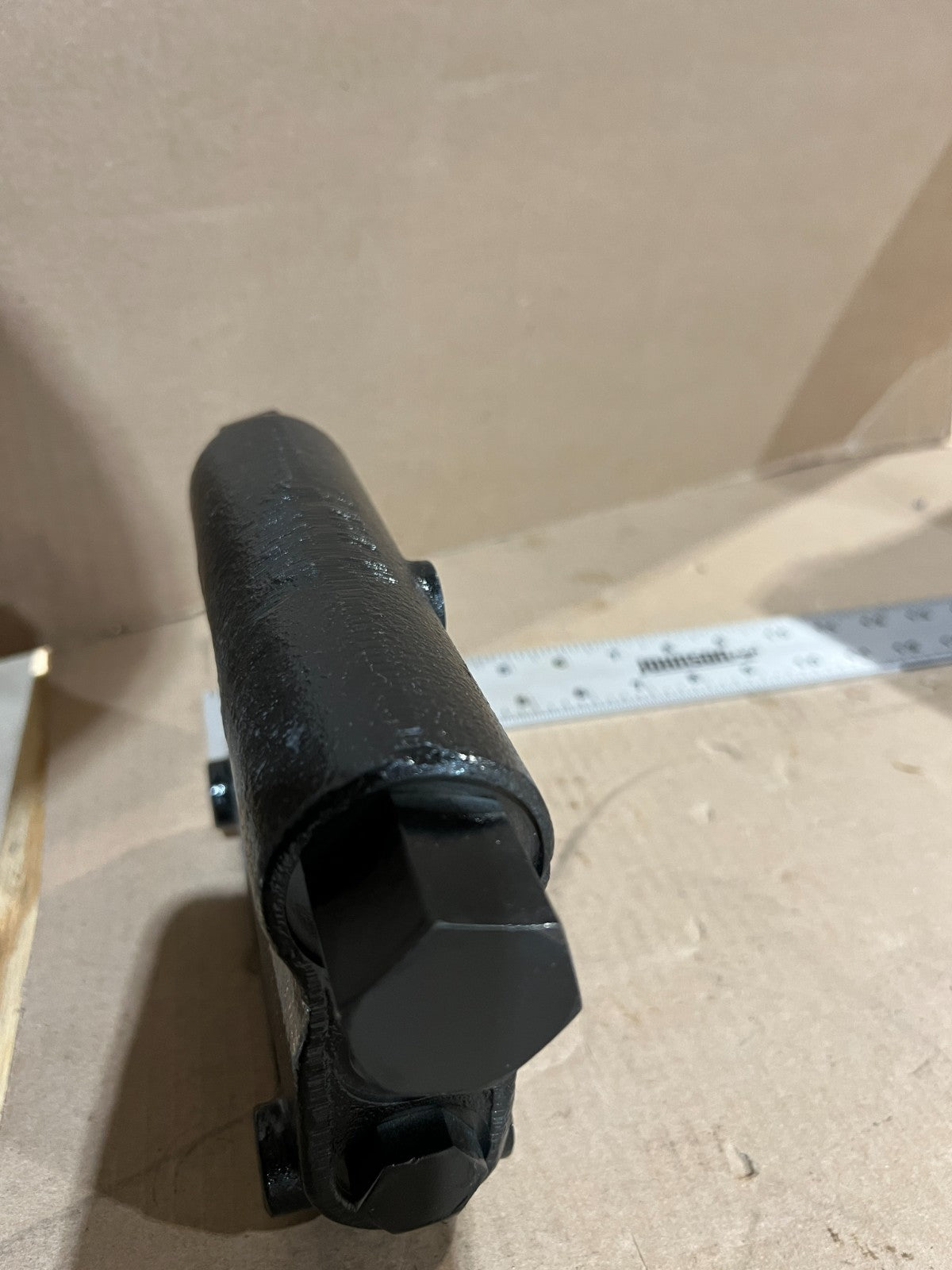

  • Selector Valve F/A-18 NSN 2530-01-436-1330 - photo 2

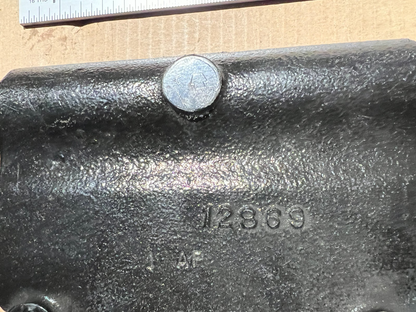

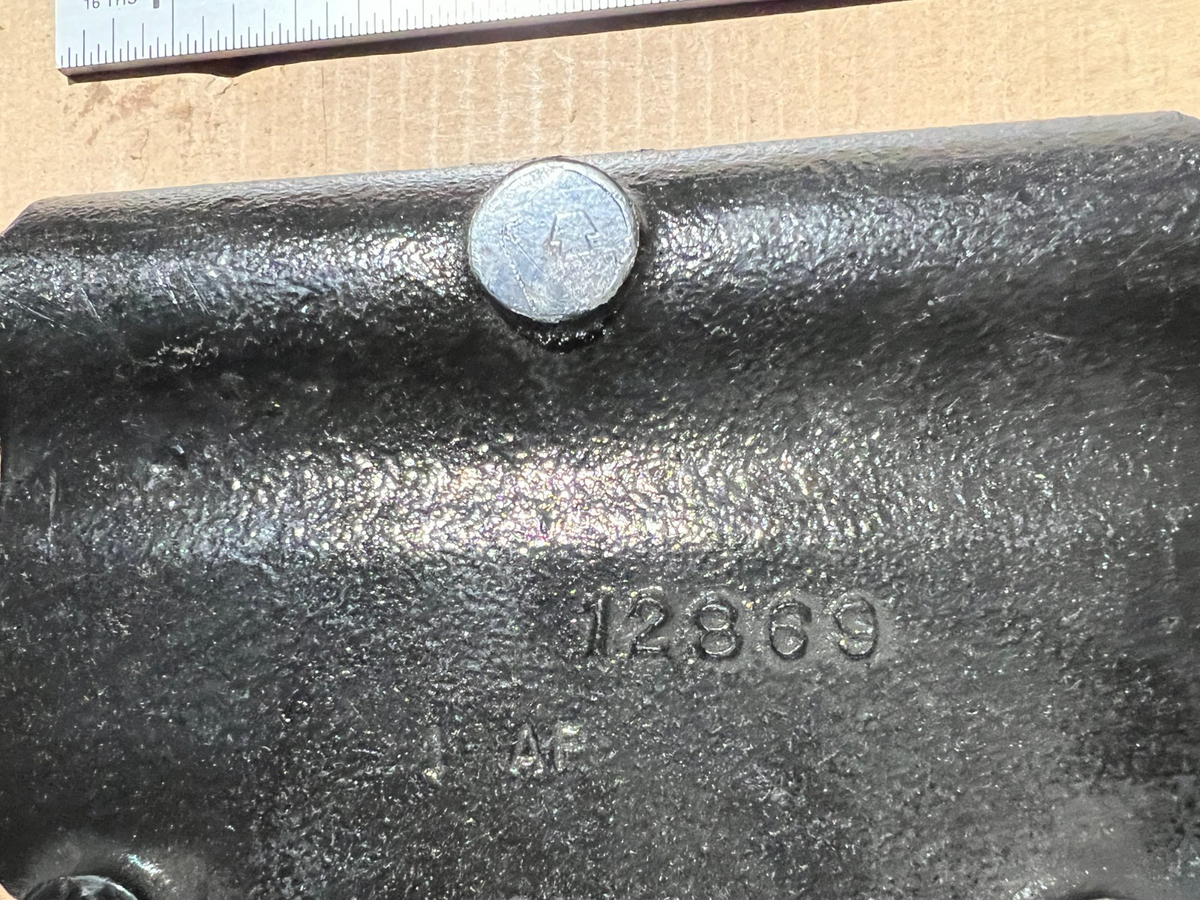

  • Selector Valve F/A-18 NSN 2530-01-436-1330 - photo 3

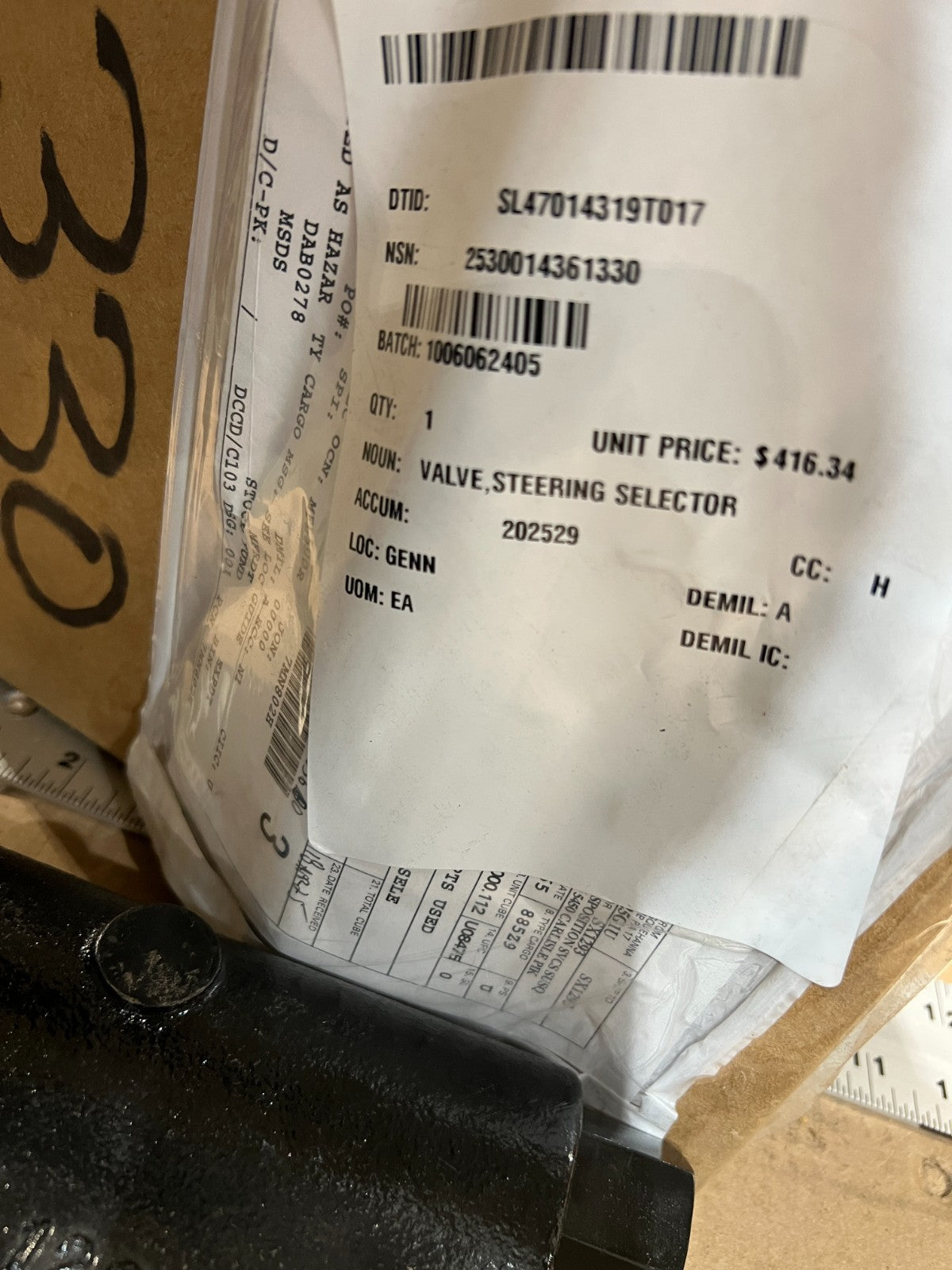

  • Selector Valve F/A-18 NSN 2530-01-436-1330 - photo 4
1 4

SECO Parts and Equipment

AIRCRAFT F/A-18 HORNET 1741AS345 HYD STEERING SELECTOR VALVE 2530-01-436-1330

AIRCRAFT F/A-18 HORNET 1741AS345 HYD STEERING SELECTOR VALVE 2530-01-436-1330

$8,245.58 USD
$8,245.58 USD
Sale Sold out
Shipping calculated at checkout.

NSN 2530-01-436-1330 Specs and cross-references ↗

1741AS345 Steering Selector Valve (2530-01-436-1330)

Hydraulic steering selector valve, 3 ports 0.875 in.-14UNF-2B, rated 2200 psi, for the F/A-18 Hornet.

Part Information

  • Design Control Activity: Naval Air Systems Command
  • Part Number: 1741AS345
  • NSN: 2530-01-436-1330
  • End Item: F/A-18 Hornet

Specifications

  • Operating Pressure: 2200 PSI hydraulic fluid
  • Ports: 3 ports, 0.875 in.-14UNF-2B
  • Mounting Holes: 2 mounting holes, 0.408 in. dia
  • Cushioning: Max cushioning
