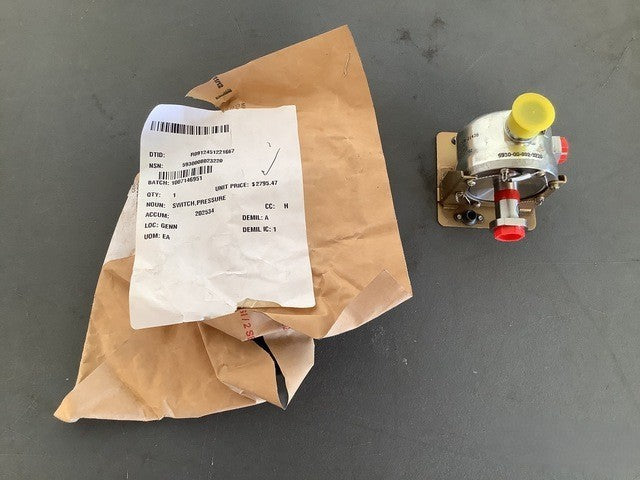

Aircraft Orion P-3 HYDRA-ELECTRIC 72005 Pressure Switch 634209-3 5930008023220

LOCKHEED MARTIN CORP 634209-3 Gage Pressure Switch (5930-00-802-3220)

Dustproof gage pressure switch for the Orion P-3.

Part Information

• Manufacturer: Lockheed Martin Corp
• Part Number: 634209-3
• NSN: 5930-00-802-3220
• End Item: Orion P-3
• CAGE Code: 98897

Specifications

• Pressure Switch Type: Gage
• Media: Liquid
• Thread Class: 3B
• Nominal Thread Size (Single Pressure Connection): 0.4375 in, UNF
• Mounting Method: Bracket(s)
• Longest Horizontal Distance Between Mounting Centers: 2.250 in nominal
• Operating Temp Rating: -65.0°F to 250.0°F
• Proof Pressure: 120.00 PSI
• Sensing Element Burst Pressure: 180.00 PSI
• Contact Arrangement: Pole, Single Throw, Normally Closed, Momentary Action - 1
• Contact Load Current Rating: 1.0 A resistive
• Contact Voltage Rating: 28.0 VDC
• Contact Stimulus Rating: Actuation 23.00 PSI / Deactuation 19.50 PSI
• Pressure Connector Type: Gasket Seal, Threaded Internal
• Terminal Type: Connector, Receptacle
• Hazardous Location Protection: Dustproof
