Aircraft Phantom F-4 4CV668S 3000 PSI Hyd Check Valve AN6249-6 | NSN 4820-00-529-3201
Aircraft Phantom F-4 4CV668S 3000 PSI Hyd Check Valve AN6249-6 | NSN 4820-00-529-3201
Regular price
$1,395.00 USD
Regular price
Sale price
$1,395.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4820-00-529-3201 Specs and cross-references for NSN 4820-00-529-3201 (opens in a new tab) ↗

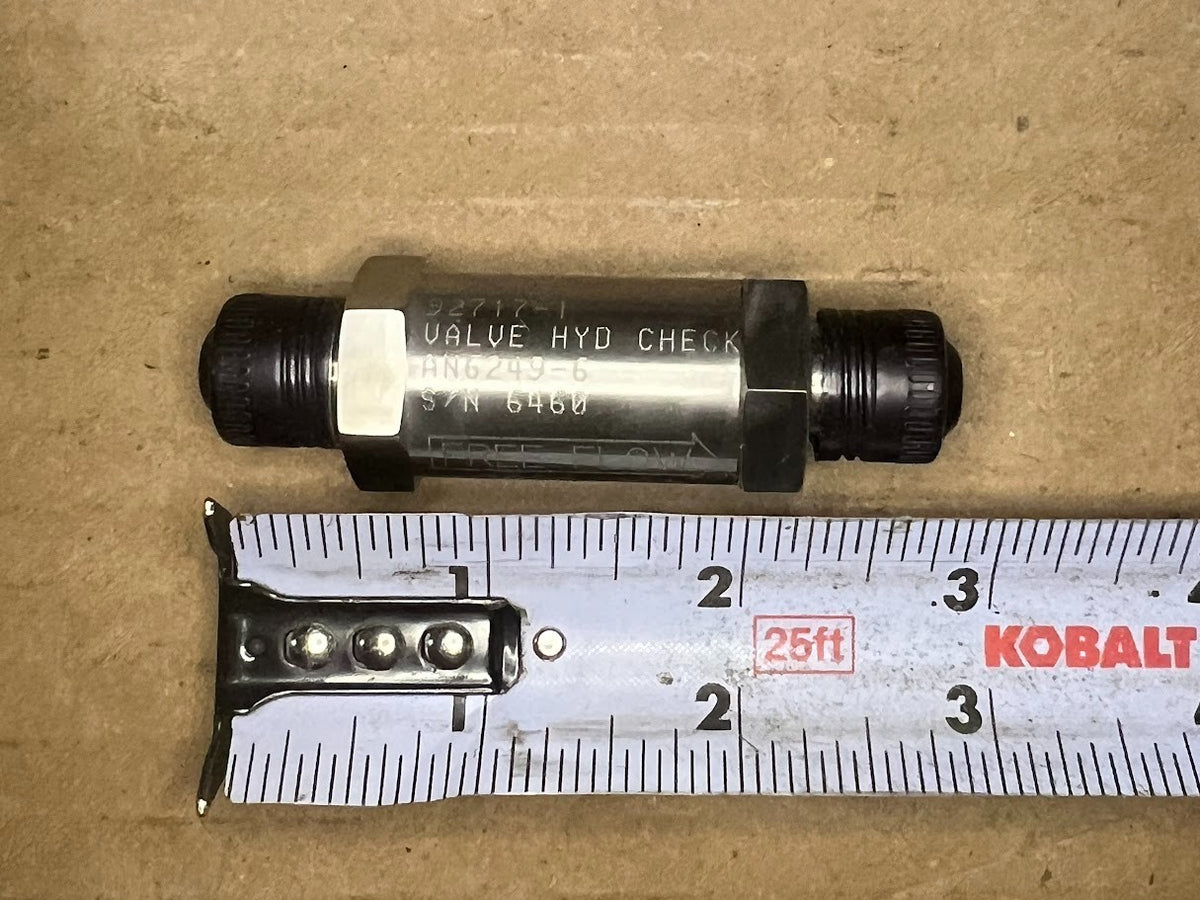

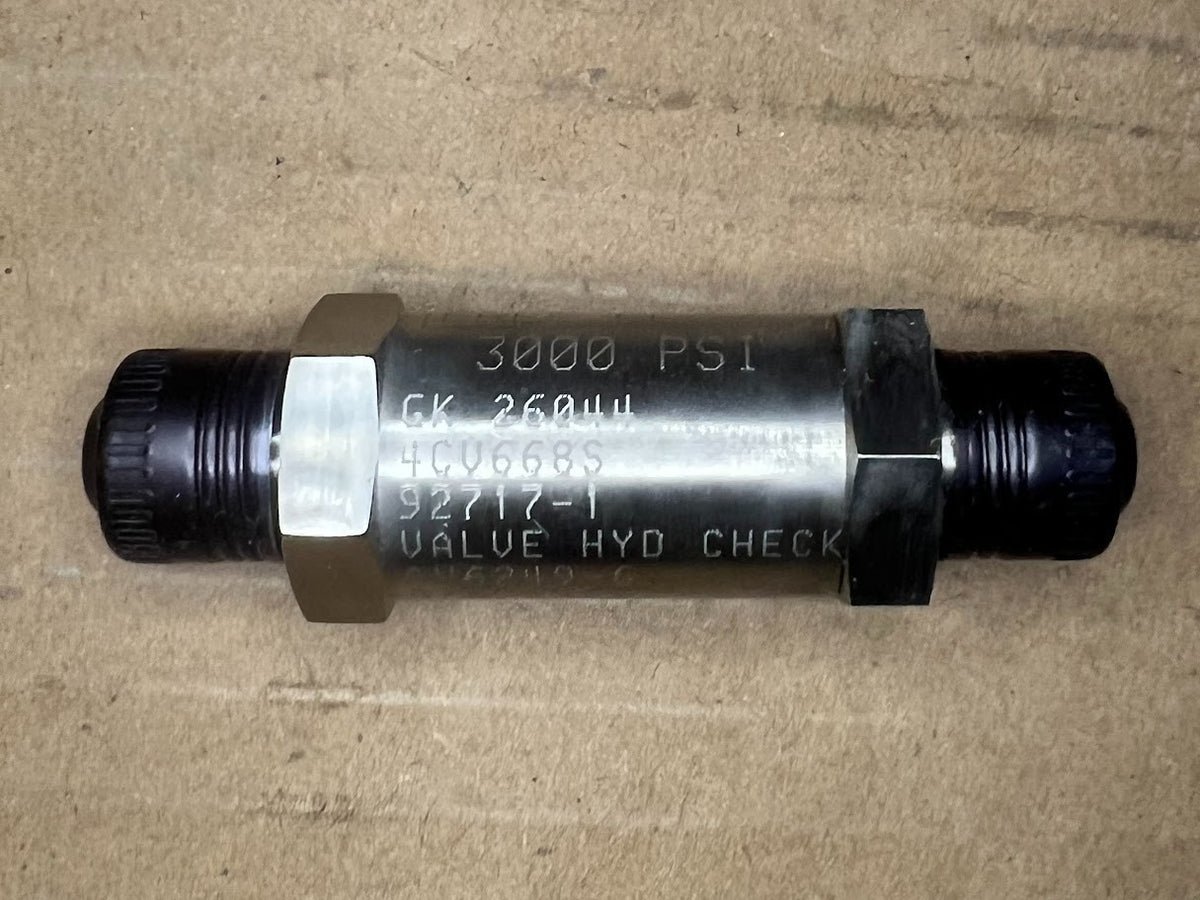

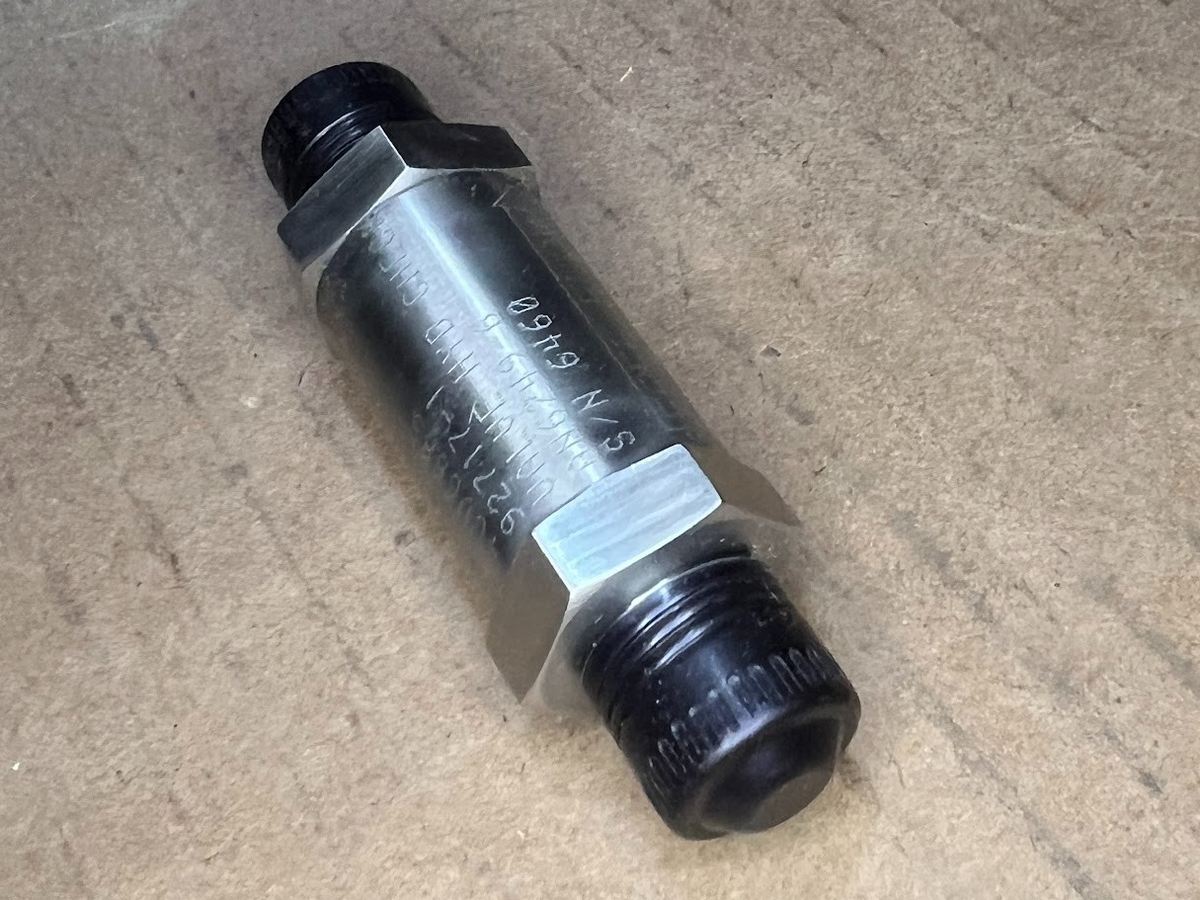

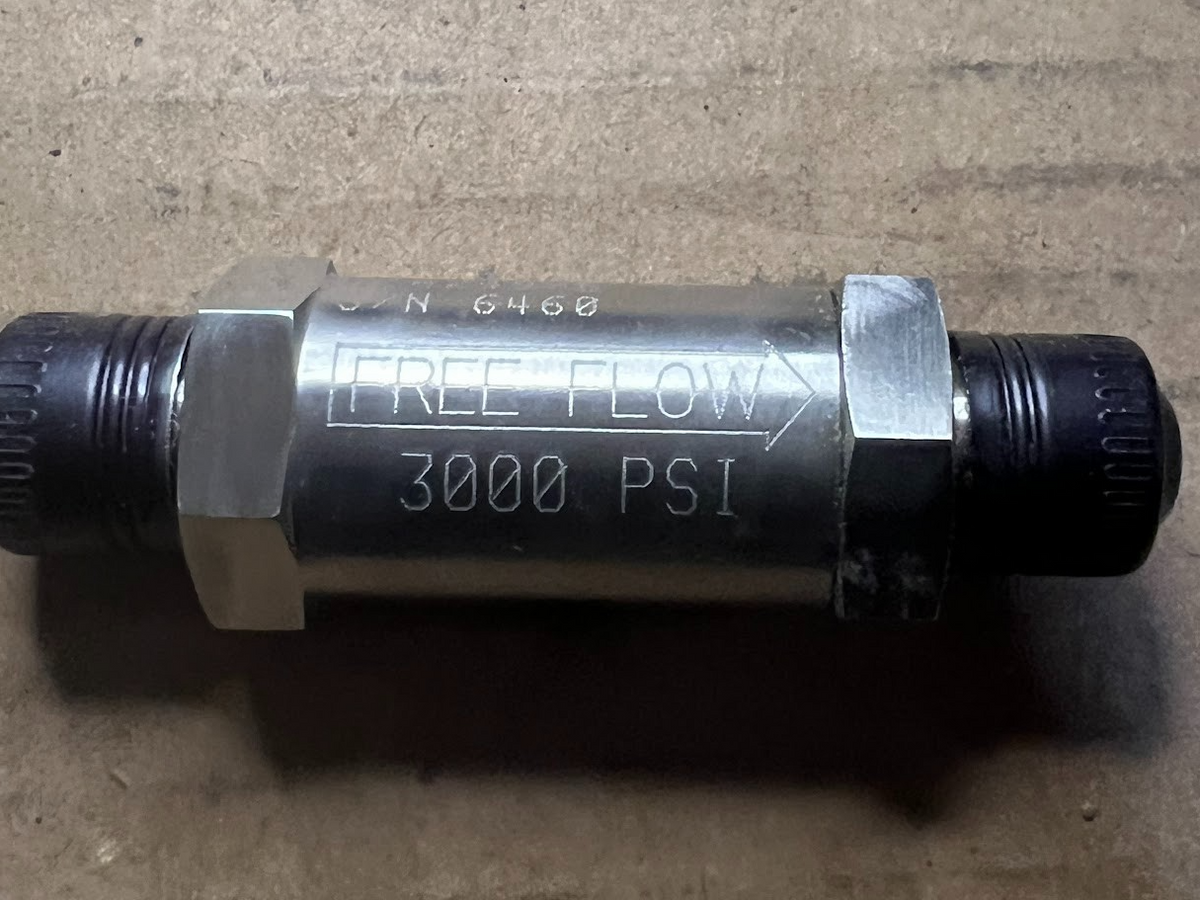

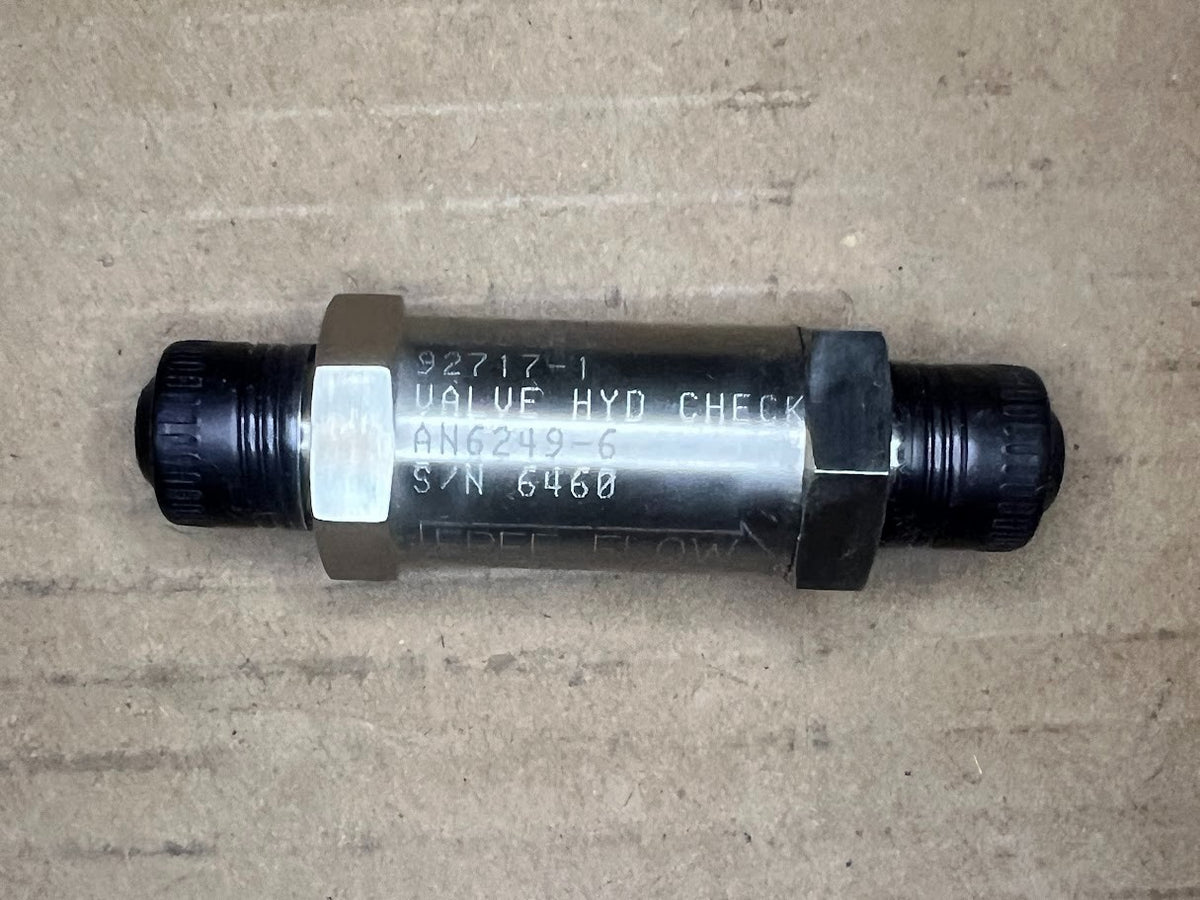

ALLIED-SIGNAL 404106 Check Valve (NSN 4820-00-529-3201)
Steel hydraulic check valve, cone-type flow control, spring-loaded, for the F-4 Phantom.
Part Information
- Manufacturer: Allied-Signal Inc
- Part Number: 404106
- NSN: 4820-00-529-3201
- End Item: Phantom F-4
Specifications
- Thread Class: 3A
- Thread Direction: All ends, right-hand
- Thread Series: UNF
- Nominal Thread Size: All ends, 0.562 in
- Connection Type: All ends, threaded external tube
- Seat Angle: All ends, 37°
- Flow Control Device: Cone
- Disk Loading Method: Spring
- Valve Operation Method: Automatic
- Mounting Position: Horizontal or vertical
- Operating Pressure: 3000 PSI maximum
- Maximum Operating Temp: 160°F
- Media: Fuel/oil, hydrocarbon
- Material: Steel
- Surface Treatment: Cadmium
- Referenced Standard: AN6249-6
