NSN 4730-01-134-6995 Specs and cross-references for NSN 4730-01-134-6995 (opens in a new tab) ↗

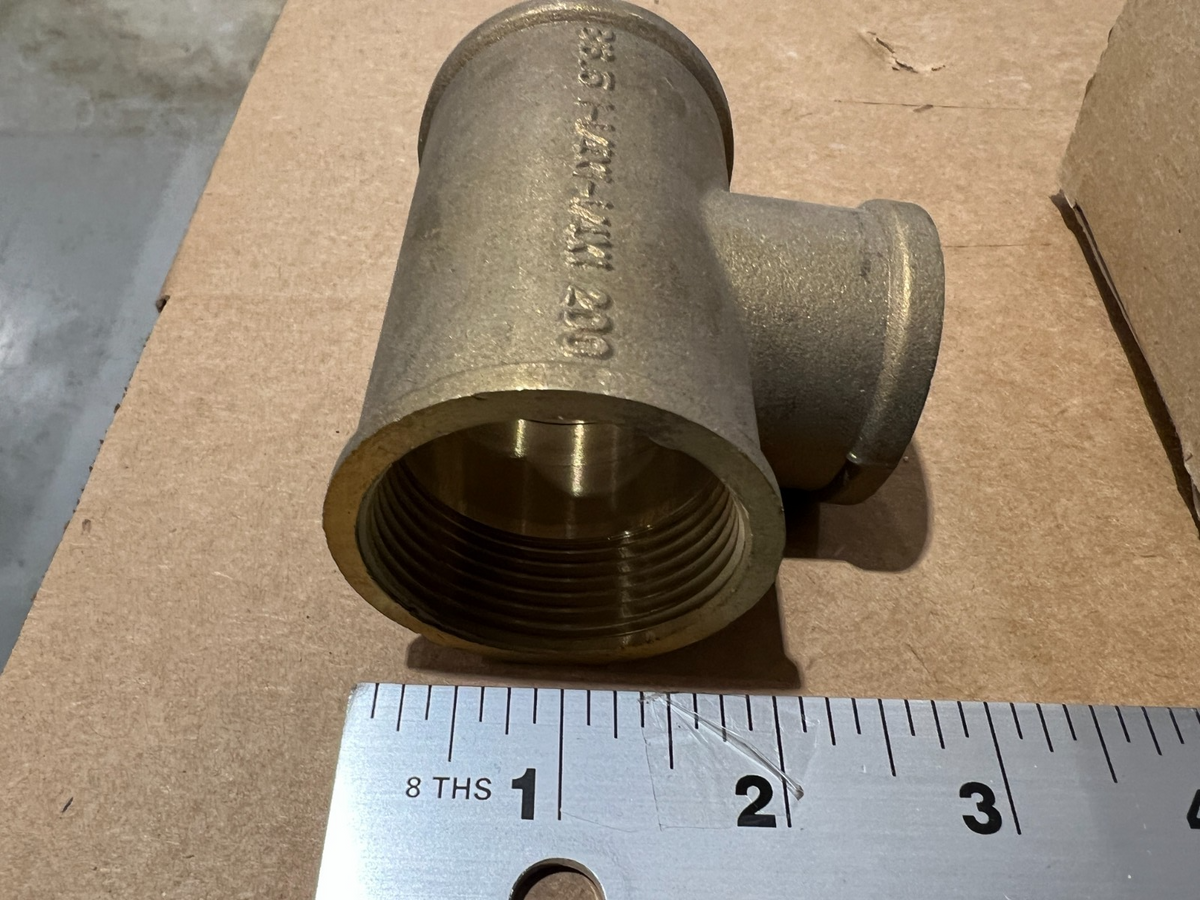

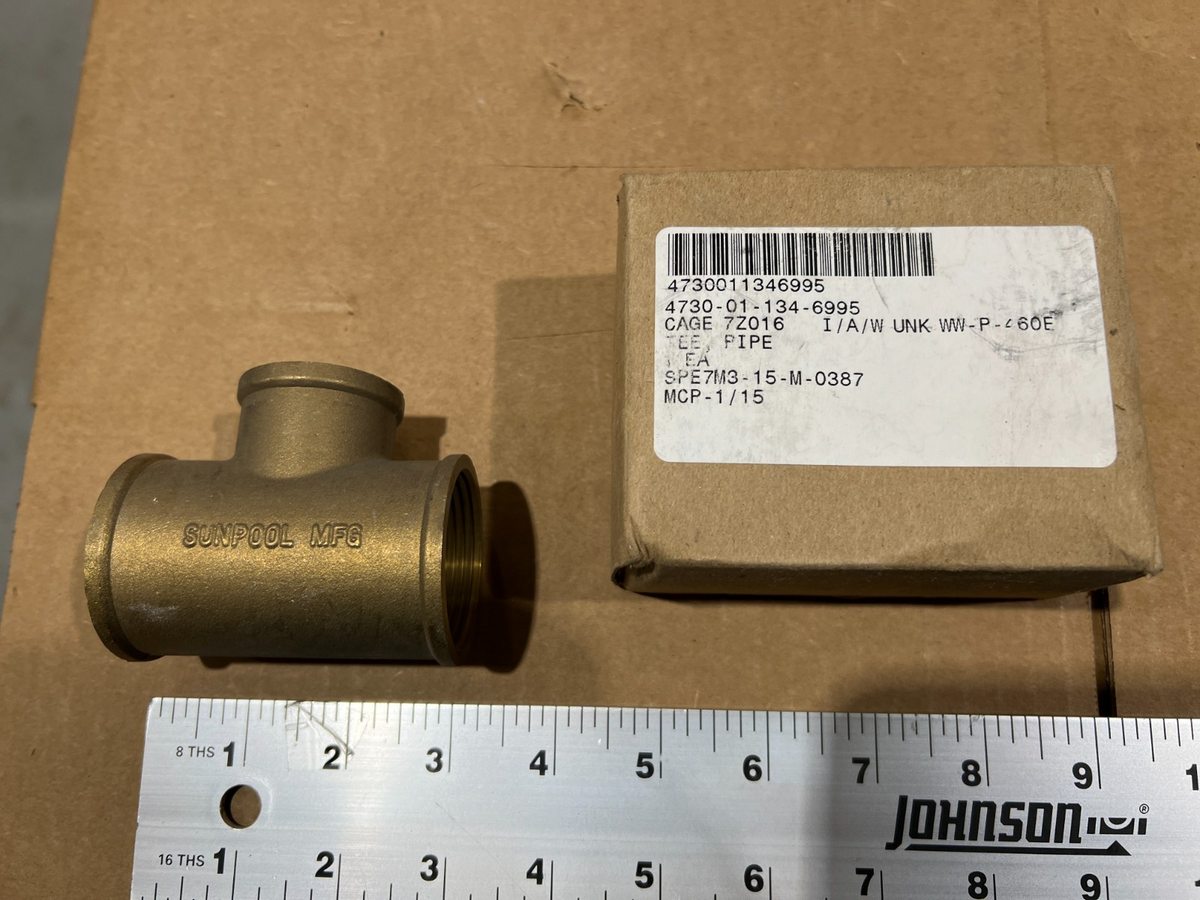

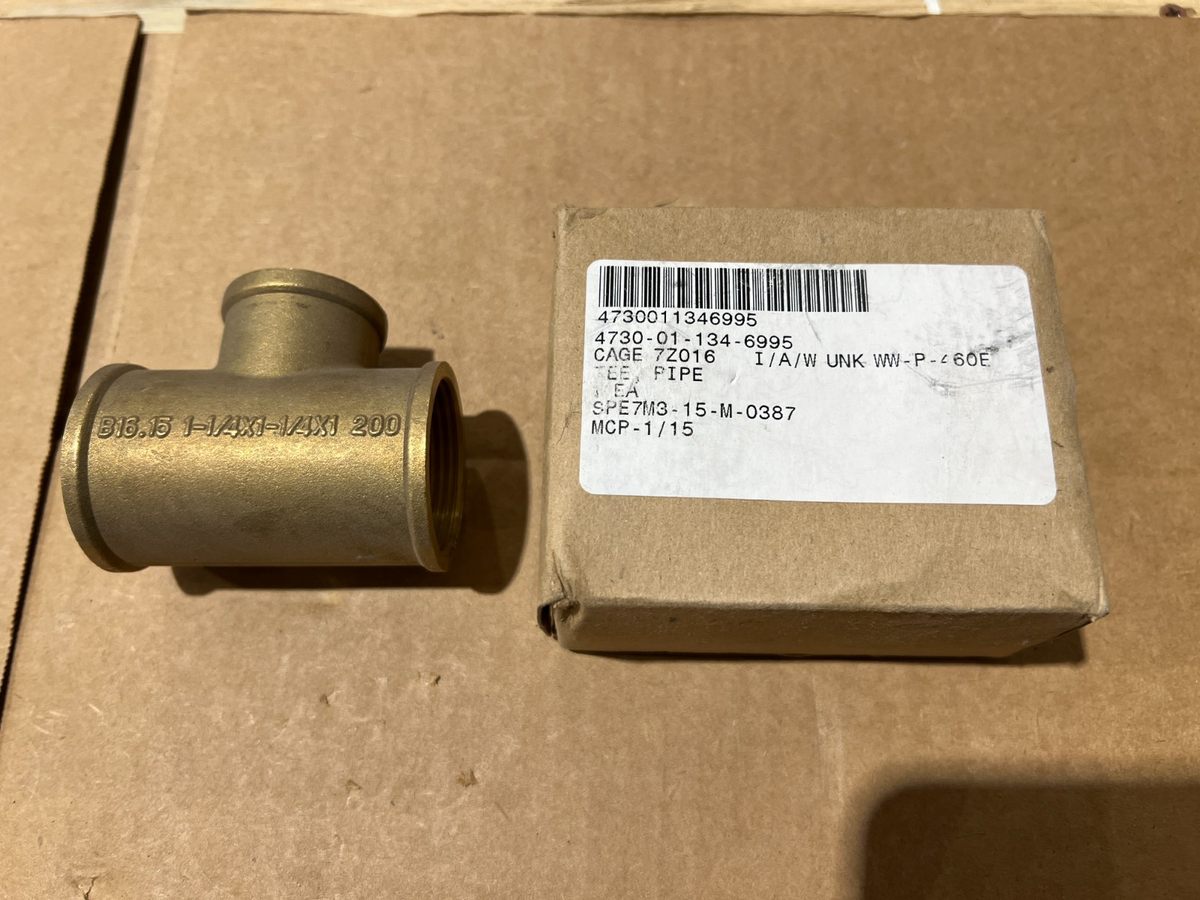

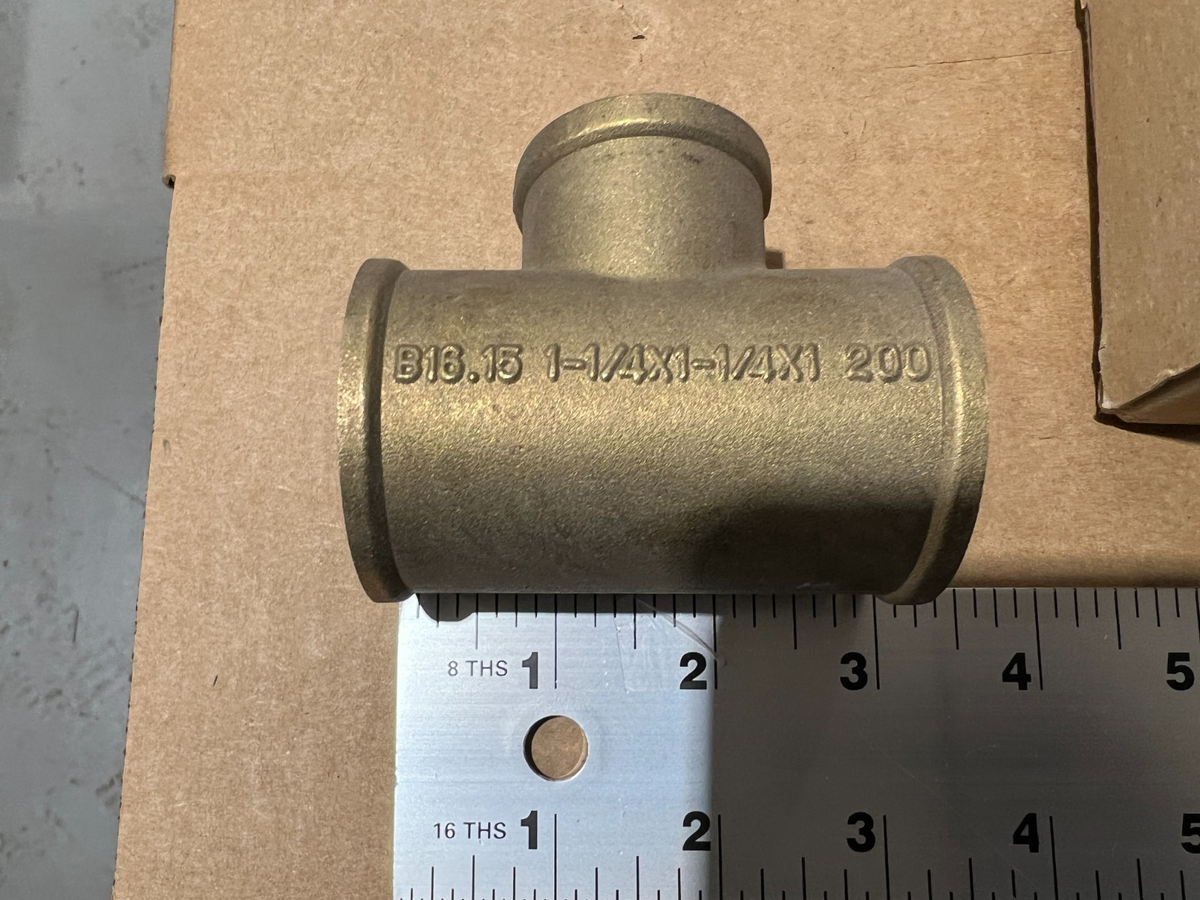

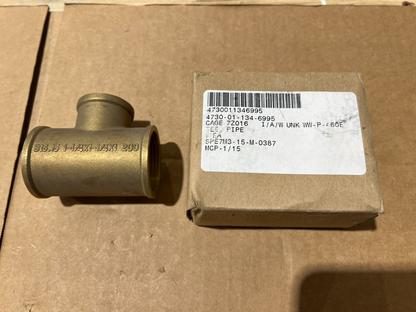

MS14309-24A Pipe Tee (4730-01-134-6995)
Copper alloy pipe tee with threaded internal NPT connections, for the B-52 Stratofortress.
Part Information
- Design Control Activity: Military Standards
- Part Number: MS14309-24A
- NSN: 4730-01-134-6995
- End Item: B-52 Stratofortress
Specifications
- Leg Length (First End): 1.520 in nominal
- Leg Length (Second End): 1.520 in nominal
- Leg Length (Third End): 1.600 in nominal
- Connection Type (All Ends): Threaded Internal Pipe
- Nominal Thread Size (First End): 1.250 in
- Nominal Thread Size (Second End): 1.250 in
- Nominal Thread Size (Third End): 1.000 in
- Thread Series (All Ends): NPT
- Thread Direction: All R-H
- Material: Copper Alloy
- Material Spec: WW-T-460
- Governing Standard: 96906-S14309
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- 400 gallon water trailer: M149, M149A1, M149A2 (TM 9-2330-267-14-and-P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
