AIRCRAFT T-37 GLOBE MOTORS 18A211 ALTERNATING CURRENT MOTOR 6105-00-897-5453 USA

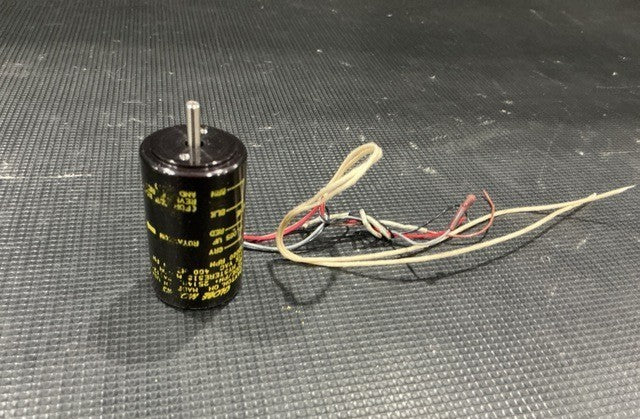

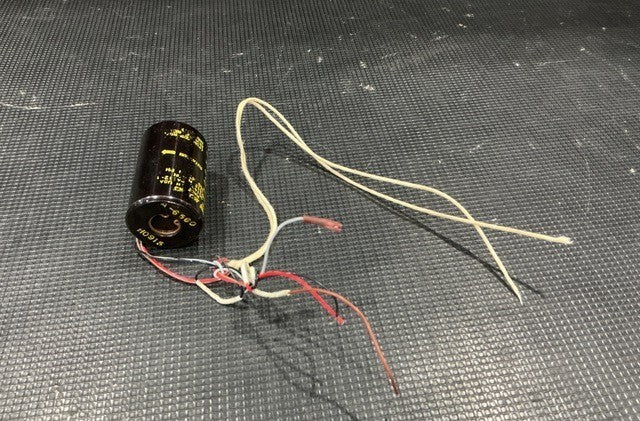

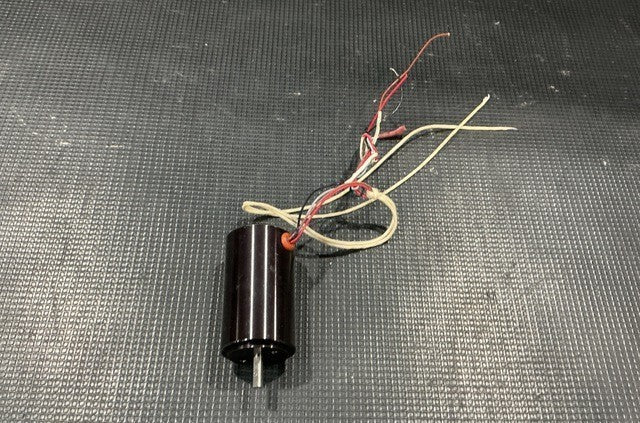

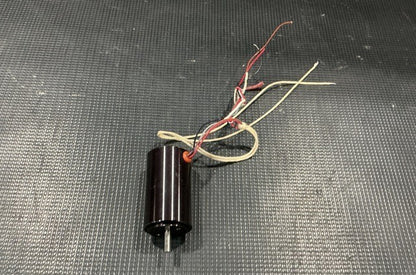

Globe Motors 18A211 Alternating Current Motor (6105-00-897-5453)

Globe Motors 18A211 alternating current motor for the T-37.

Part Information

• Manufacturer: Globe Motors, Inc.
• Part Number: 18A211
• NSN: 6105-00-897-5453
• End Item: T-37

Specifications

• Overall Height: 1.250 in
• Overall Length: 2.750 in
• Overall Width: 1.250 in
• Shaft Diameter: 0.156 in nominal, single end
• Shaft Rotation: Clockwise or counterclockwise, single end
• Duty Cycle: Continuous
• Enclosure: Totally enclosed, commercial
• Winding Type: Induction-permanent split capacitor split phase
• Mounting: Face, 2 threaded holes, 0.676 in circle diameter
• Cooling: Ambient air
• Torque: 0.026 in-oz running, 0.35 in-oz stalled, 0.35 in-oz starting
• Operating Temp: 122.0 °C
• Rotor Speed: 14,610 RPM full load
• Current: 0.413 A input
• Voltage: 115.0 V, line to neutral, single
• Phase: Single, 400.0 Hz
• Shaft End: Single style A1
• Terminal: Wire lead, 4
