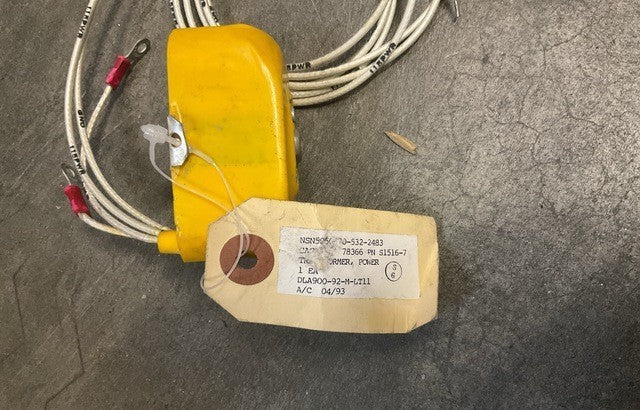

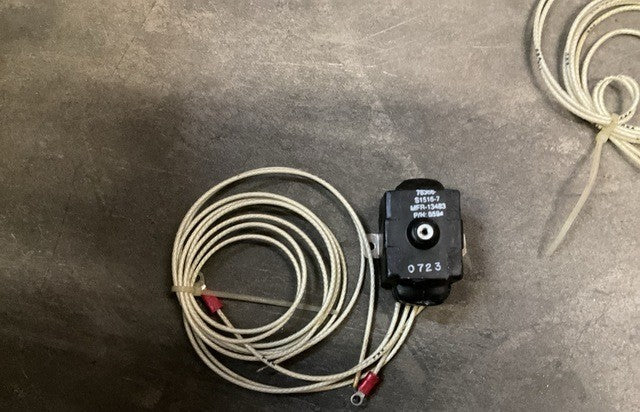

Aircraft Viking S-3B S1516-7 Single Phase Power Transformer 5950-00-532-2483 Nos

PRECISION ELECTRONICS, INC PEI 8594 Power Transformer (5950-00-532-2483)

Single-phase power transformer with one primary and one secondary winding, for the Viking S-3B aircraft.

Part Information

• Manufacturer: Precision Electronics, Inc
• Part Number: PEI 8594
• NSN: 5950-00-532-2483
• End Item: Viking S-3B
• CAGE Code: 78366

Specifications

• Input-Output Phase Relationship: Single Component, Single Phase to Single Phase
• Body Length: 1.865–1.885 in
• Body Width: 1.125–1.145 in
• Body Height: 1.365–1.385 in
• Enclosure Type: Fully Enclosed
• Mounting Method: Single Group, Terminal
• Winding Function and Quantity: Primary 1, Secondary 1
• Terminal Type and Quantity: Wire Lead, 4
