AN/GRA50 ANTENNA CG-678-A/U RADIO FREQUENCY CABLE ASSEMBLY 5995-00-823-2176 NOS

CG-678-A/U Radio Frequency Cable Assembly (NSN 5995-00-823-2176)

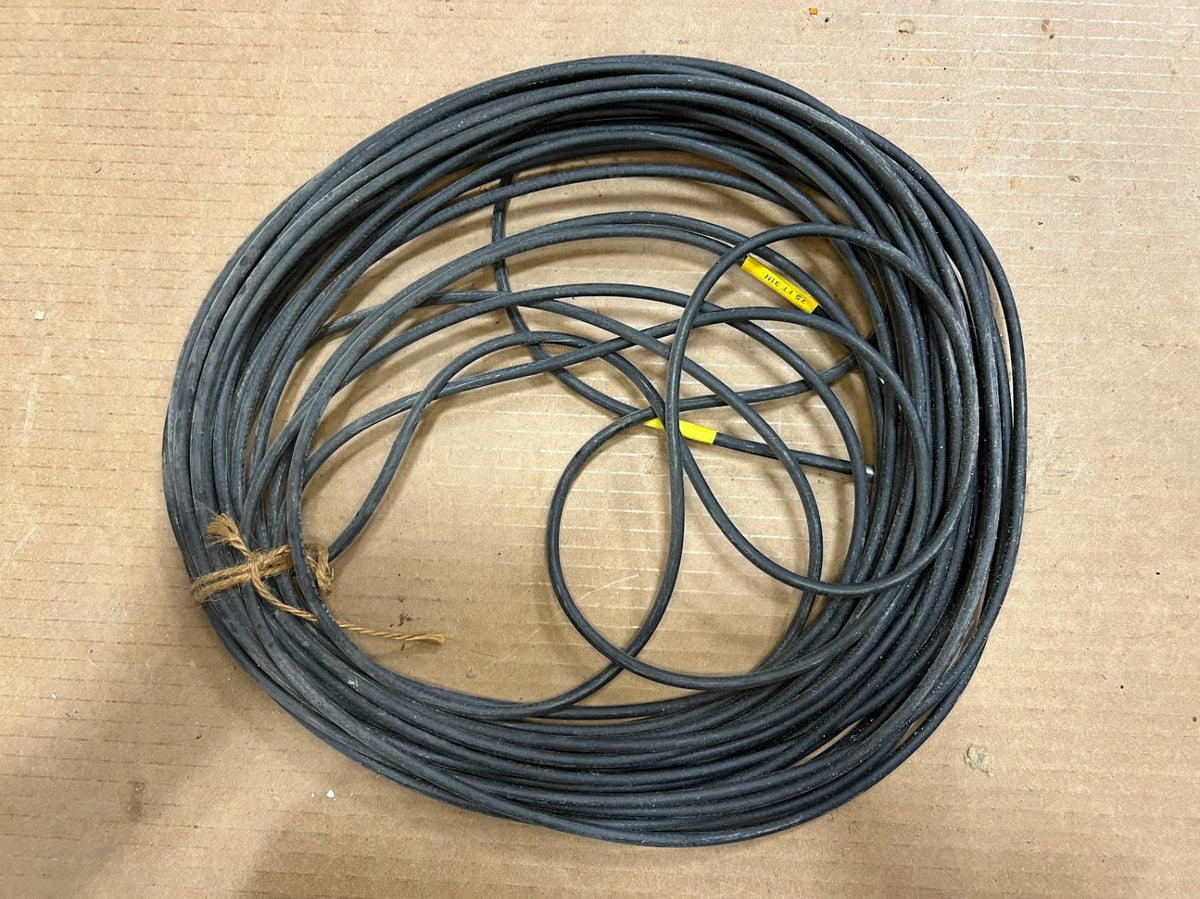

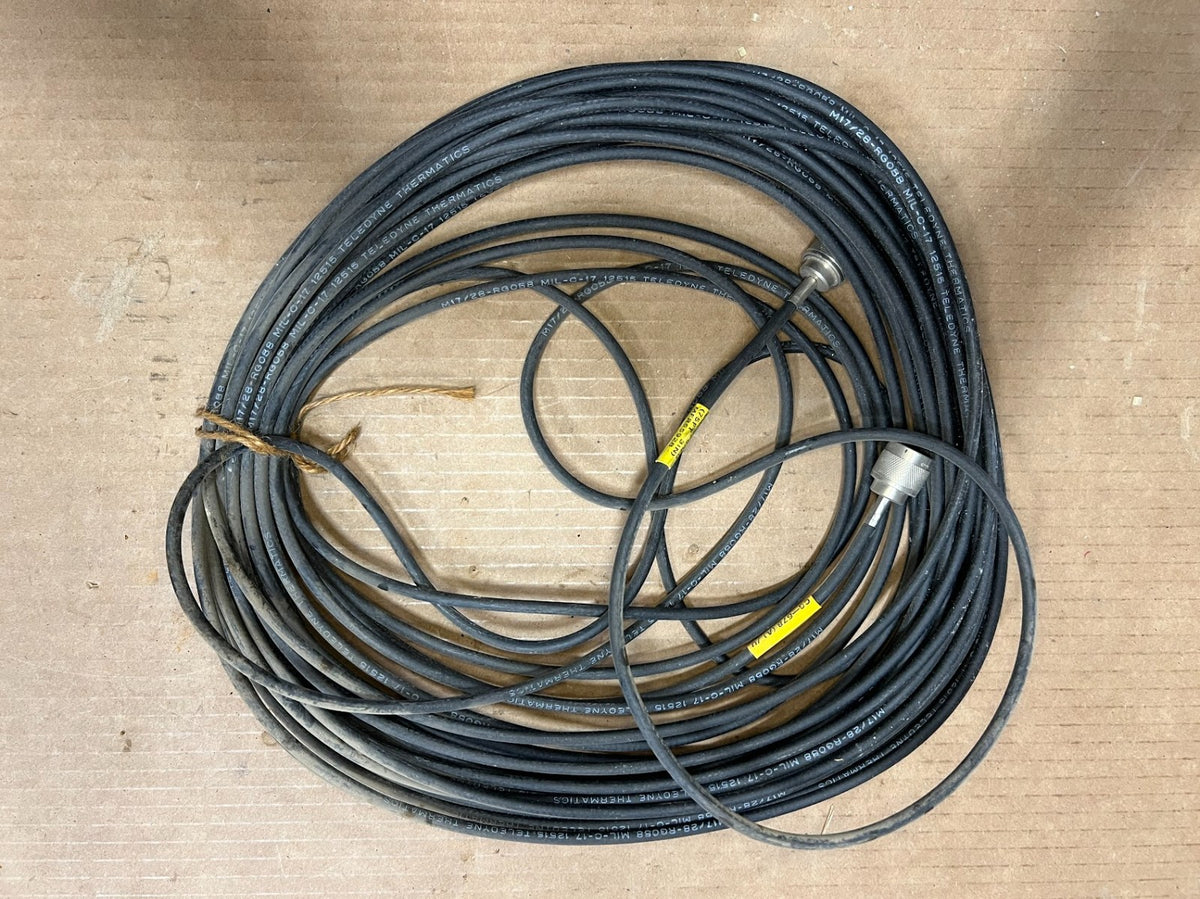

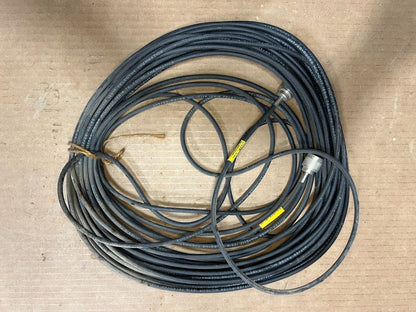

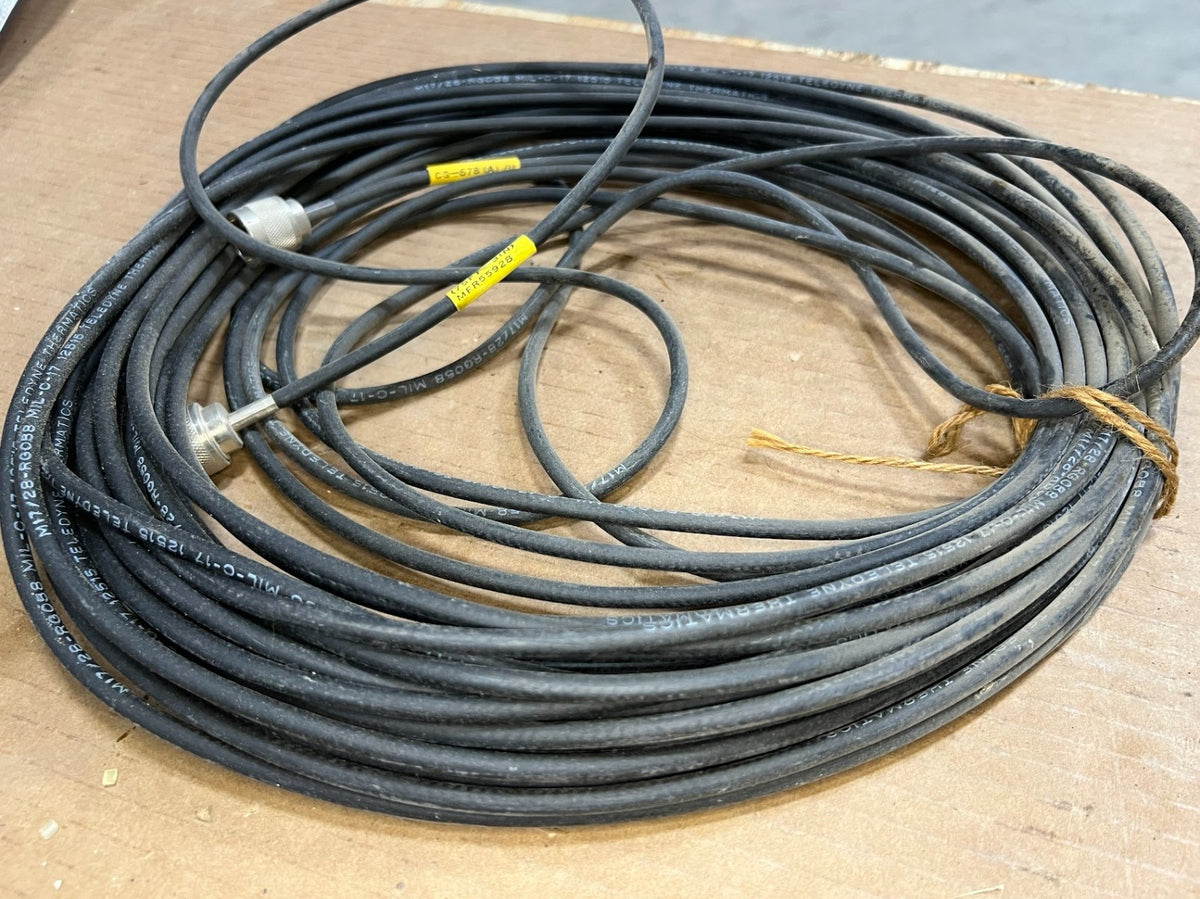

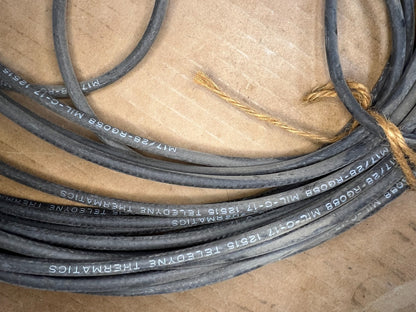

Radio frequency cable assembly, 75.25 ft overall length, 50 ohm impedance, both ends terminated with single conductor connector plugs, for AN/GRA50.

Part Information

• Design Control Activity: US Army Communications & Electronics
• Part Number: CG-678-A/U
• NSN: 5995-00-823-2176
• End Item: AN/GRA50

Specifications

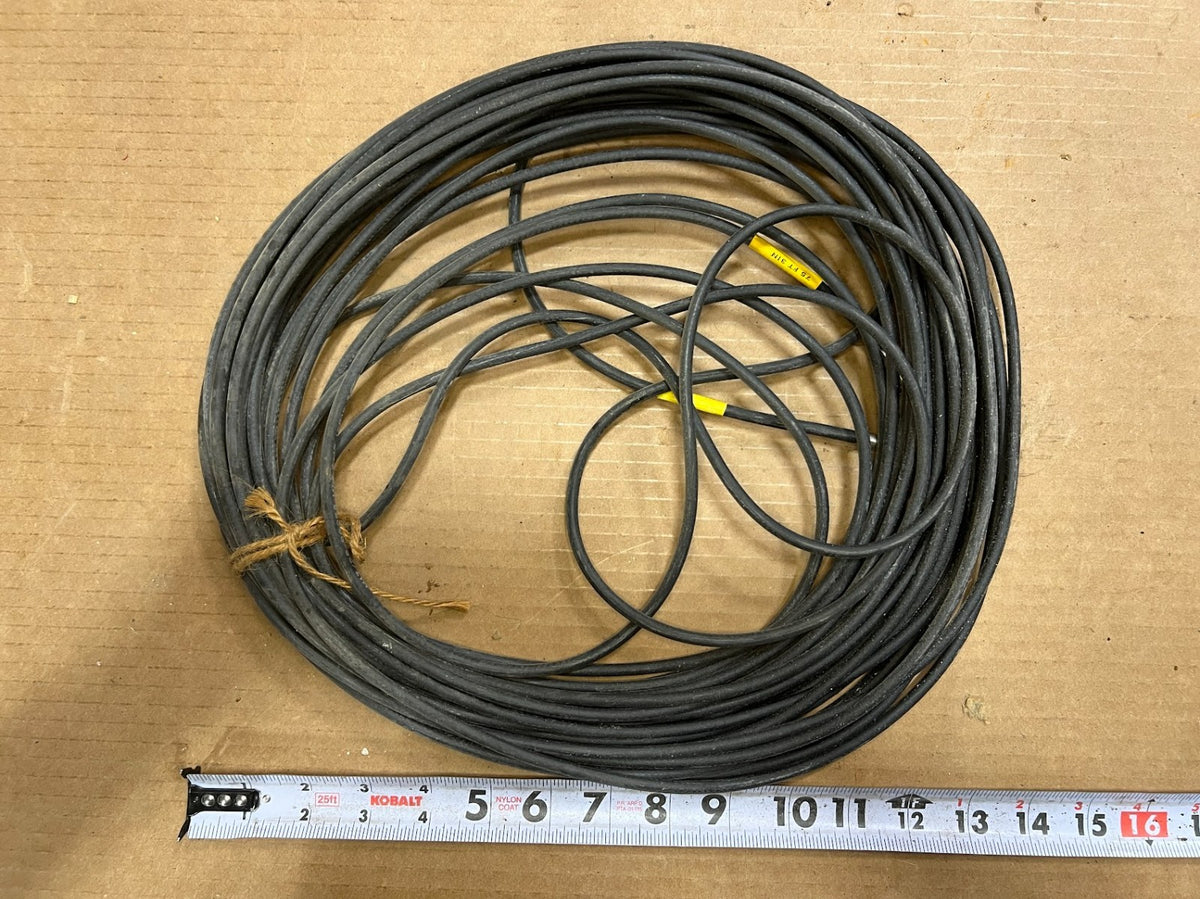

• Overall Length: 75.250 ft
• Electrical Resistance: 50.00 ohms impedance

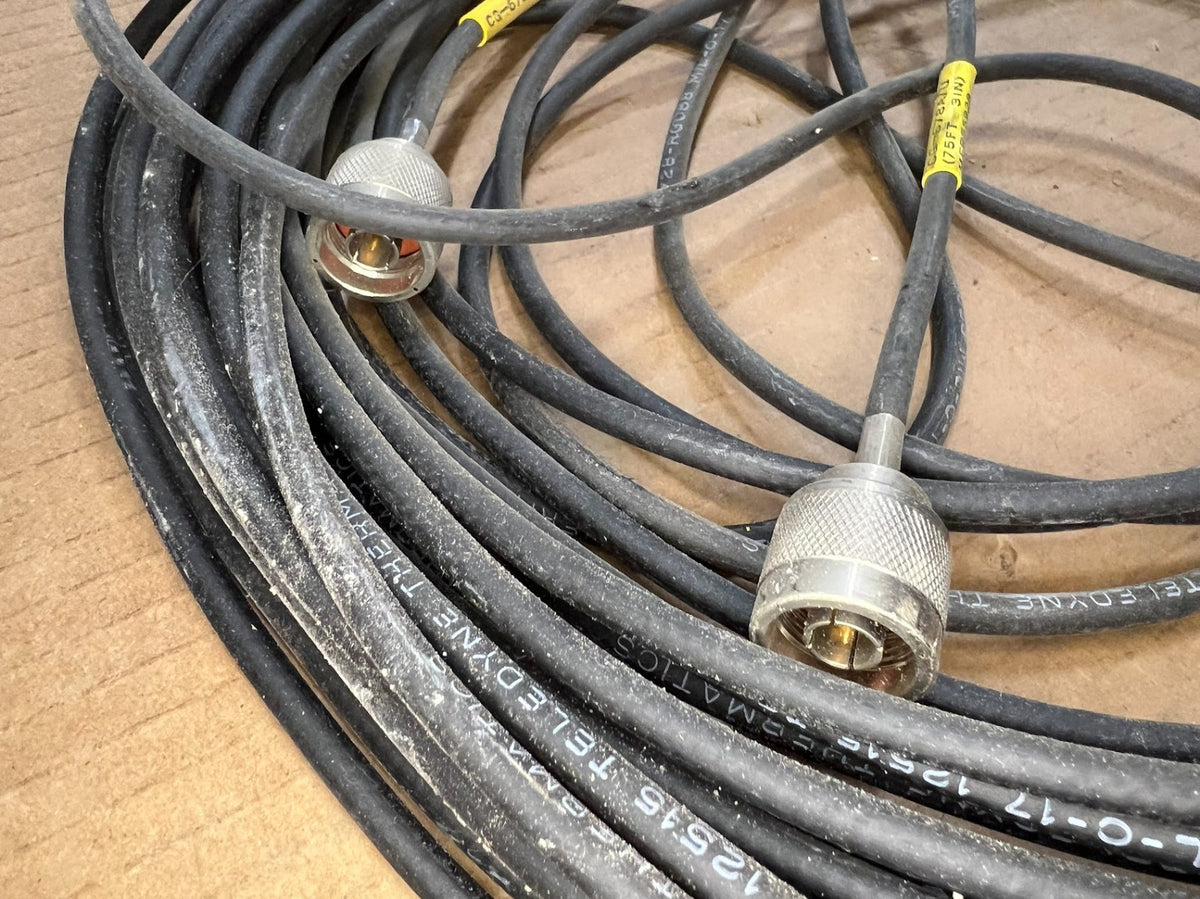

• Termination Type: Both ends single conductor connector plug
• Conductor Quantity: 1
• Strand Quantity Per Conductor: 19
• Conductor Form: Single conductor, stranded
• Round Conductor Size: AWG 21
• Strand AWG Size Per Conductor: 33

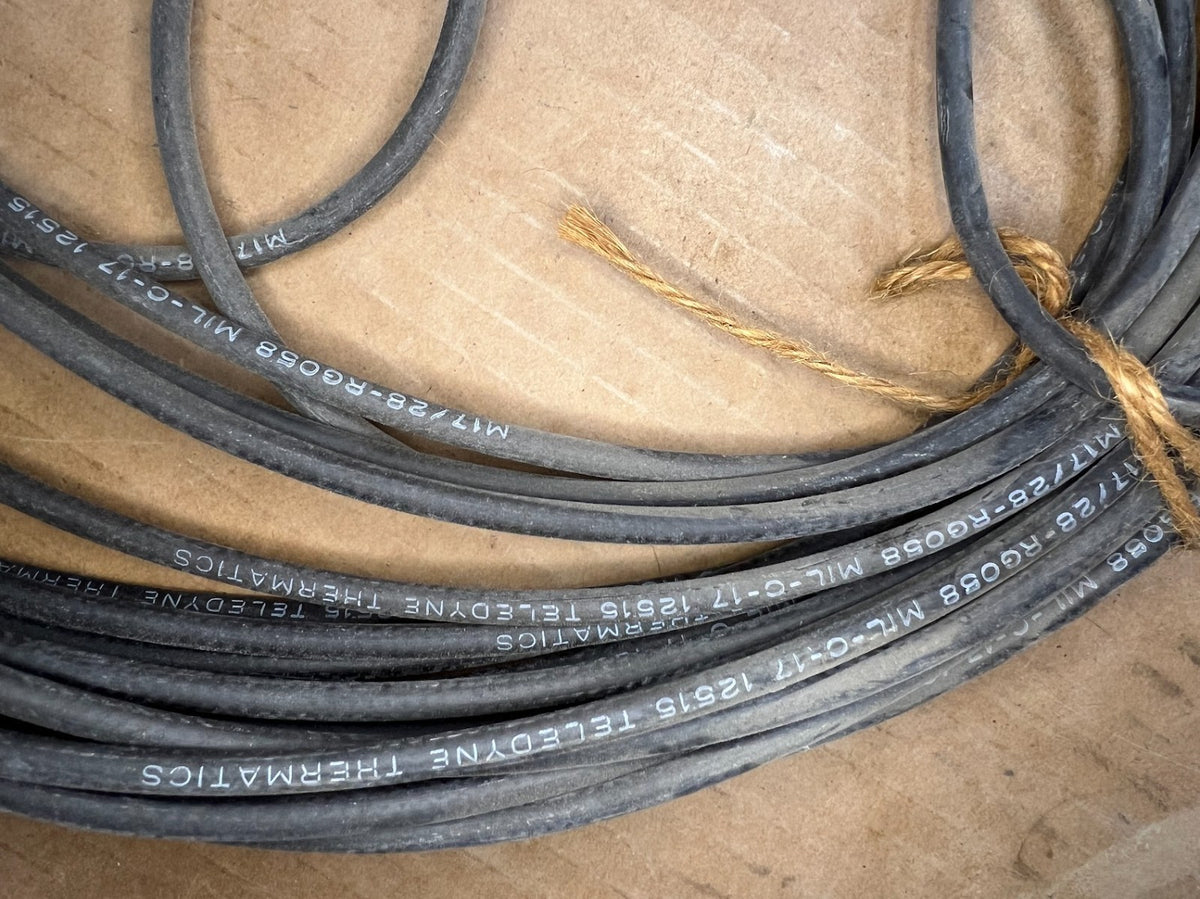

• Conductor Arrangement and Quantity: Coaxial, 1
• Core Conductor Material: Copper
• Core Conductor Surface Treatment: Tin
• First Position Primary Insulation Material: Plastic, Polyethylene Terephthalate (PET)(Polyester)
• Material Document: QQ-W-343, Soft
