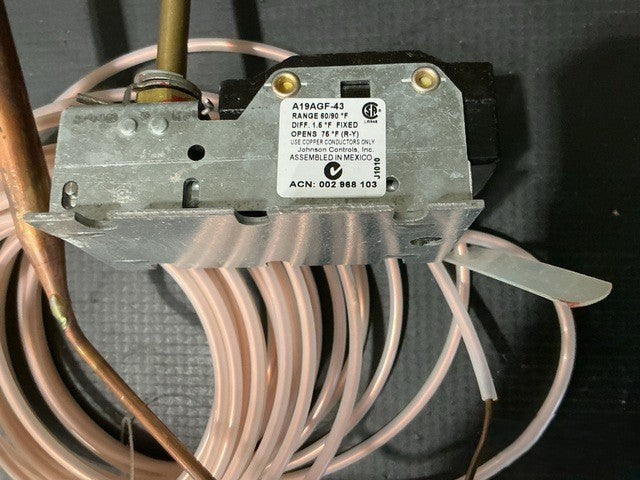

AN/TTC-39 Tri-tac A19AGF-43 Thermostatic Switch 13216E6203-2 | NSN 5930-00-448-5324

JOHNSON CONTROLS A19AGF-978 Thermostatic Switch (NSN 5930-00-448-5324)

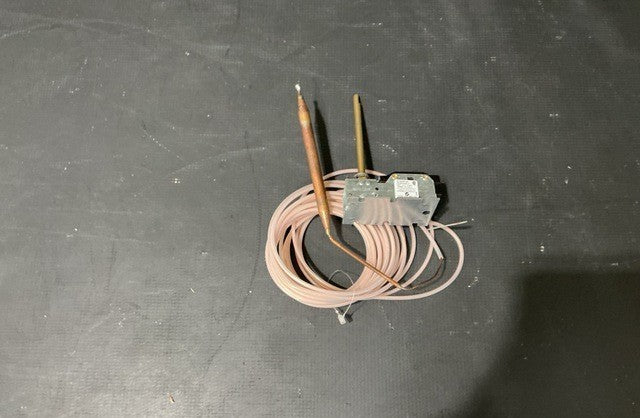

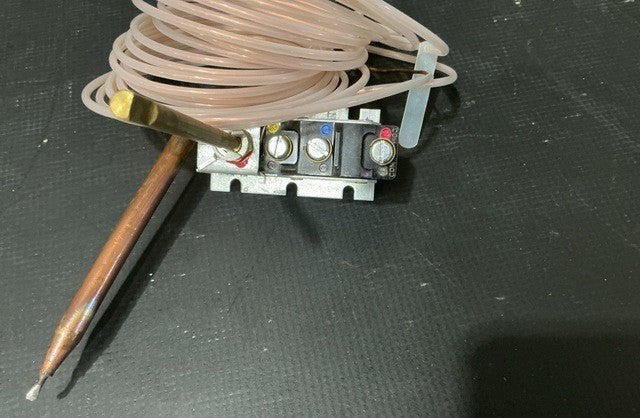

Capillary tube-bulb thermostatic switch with dustproof enclosure, mounted via bracket and slot.

Part Information

• Manufacturer: Johnson Controls Inc
• Part Number: A19AGF-978
• NSN: 5930-00-448-5324
• End Item: AN/TTC-39

Specifications

• Hazardous Location/Environmental Protection: Dustproof
• Overall Length: 1.550 in
• Overall Height: 3.160 in
• Overall Width: 5.120 in
• Capillary Tube Length: 24.0 in
• Bulb Length (Max): 7.500 in
• Bulb Diameter: 0.375 in
• Temp Sensing Element Type: Capillary Tube-Bulb
• Mounting Method: Bracket(s) and Slot
• Contact Arrangement: Pole, Double Throw, One Position Momentary
• Terminal Type: Screw
• Contact Load Current Rating: 5.8 A (Resistive Load)
• Contact Voltage Rating: 120.0 V AC
• Contact Adjustment Range: 60.00–90.00 °F (Actuation and Deactuation)
• Media for Which Designed: Gas or Liquid
