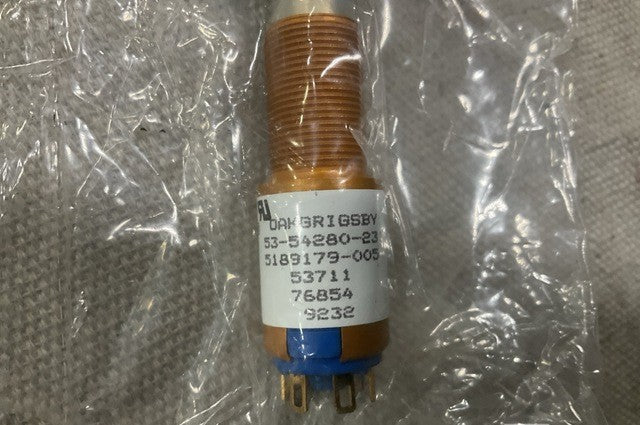

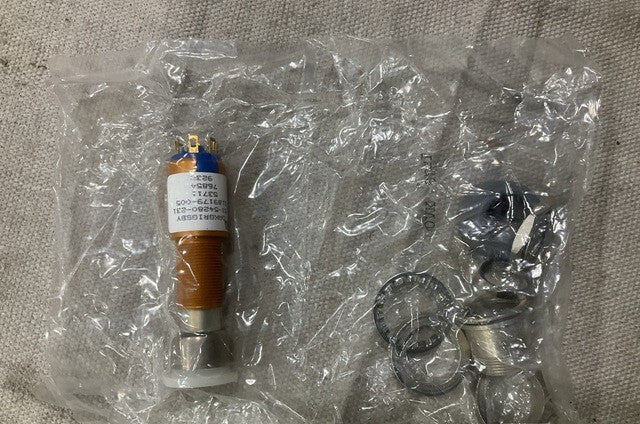

Austin LPD-4 5-65123-005 Push Switch 5189179-005 53-54280-231 | NSN 5930-01-166-7152

British Sarozal Ltd 5189179-005 Push Switch (5930-01-166-7152)

Waterproof, fully inclosed push switch for the Austin LPD-4.

Part Information

• Manufacturer: British Sarozal Ltd
• Part Number: 5189179-005
• NSN: 5930-01-166-7152
• End Item: Austin LPD-4

Specifications

• Environmental Protection: Waterproof
• Enclosure Type: Fully Inclosed
• Body Diameter: 0.625 in nominal
• Nominal Thread Size: 0.625 in, 32 threads per inch, UN series
• Illuminated Actuator Color: White (single actuator)
• Actuator Inscription: 4
• Maximum Voltage Rating: AC 115.0V, DC 28.0V
• Contact Arrangement: Single switch unit, two circuit, double break/double make, one position momentary
• Contact Load Current Rating: DC Inductive 2.0A, DC Lamp 1.5A, DC Resistive 3.0A; AC Inductive 2.0A, AC Lamp 1.5A, AC Resistive 3.0A
• Terminal Type/Quantity: Tab, solder lug, 6
