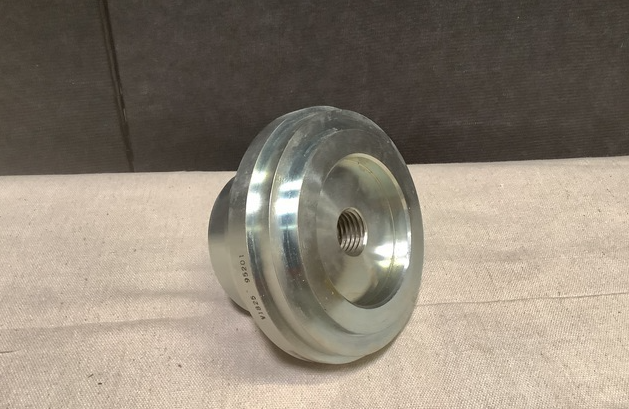

Bae Bearing,sleeve 12580894 | NSN 3120-01-659-2069
Bae Bearing,sleeve 12580894 | NSN 3120-01-659-2069
Regular price
$1,159.89 USD
Regular price
Sale price
$1,159.89 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 3120-01-659-2069 Specs and cross-references for NSN 3120-01-659-2069 (opens in a new tab) ↗
| HOLE DIAMETER | 0.350 INCHES MINIMUM AND 0.410 INCHES MAXIMUM FIRST |
| OVERALL LENGTH | 2.970 INCHES MINIMUM AND 3.030 INCHES MAXIMUM |
| BODY OUTSIDE DIAMETER | 5.303 INCHES MINIMUM AND 5.323 INCHES MAXIMUM |
| BODY INSIDE DIAMETER | 2.970 INCHES MINIMUM AND 3.030 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | 2350-01-577-0830 |
| CORNER SHAPE | SQUARE ALL CORNERS |
| HARDNESS RATING | 33.0 ROCKWELL C MINIMUM AND 38.0 ROCKWELL C MAXIMUM OVERALL |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | TOOL, BEARING INSTALLATION |
| SPECIAL FEATURES | CENTER HOLE HAS 1.000-8 UNC-2B THREADING |
| MATERIAL | STEEL COMP 4130 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM A322 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| PROPRIETARY CHARACTERISTICS | PACS |
| SURFACE TREATMENT | ZINC OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | ASTM B633 ASSN STD SINGLE TREATMENT RESPONSE OVERALL |
