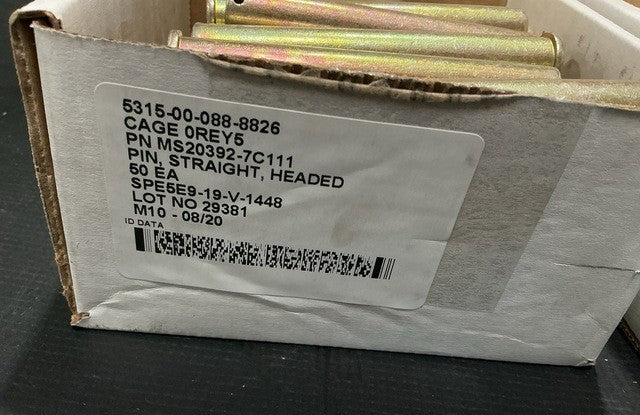

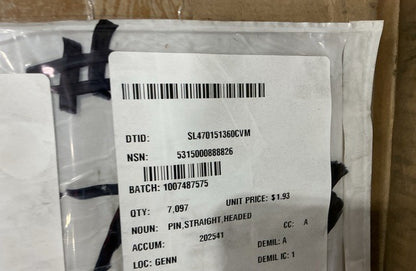

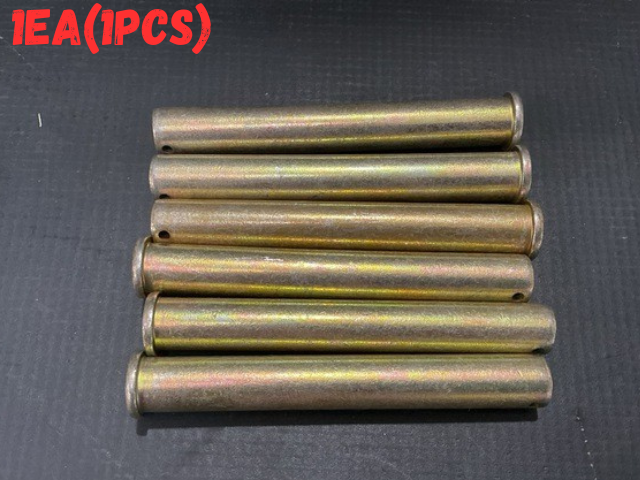

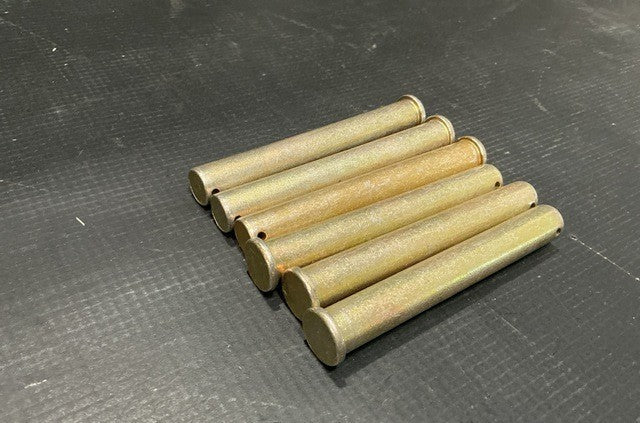

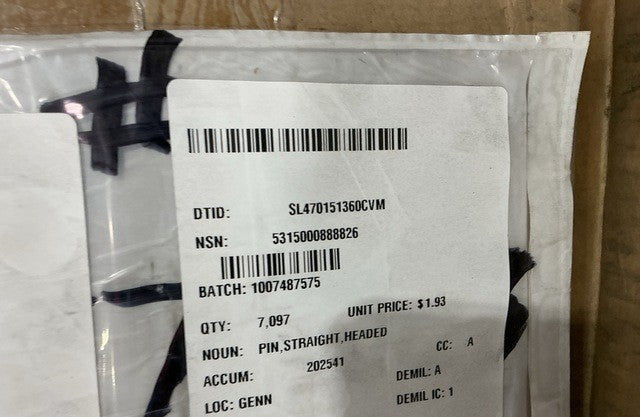

MS20392-7C111 Headed Straight Pin (5315-00-088-8826)

Steel headed straight pin, cadmium and chromate finish, for the C-130 Hercules.

Part Information

• Design Control Activity: National Aerospace Standards
• Part Number: MS20392-7C111
• NSN: 5315-00-088-8826
• End Item: C-130 Hercules

Specifications

• Diameter: 0.495 - 0.497 in
• Under Head Length: 3.647 - 3.667 in
• Pin Head Diameter: 0.625 in nominal
• Chamfer Length: 0.078 in nominal, 15.0° angle
• First Hole Diameter: 0.096 - 0.116 in
• Hardness: Rockwell C 26.5 - 32.0
• Shear Strength (double): 29,440 lb
• Material: Steel Comp 4037 or Steel Comp 4130 or Steel Comp 8630
• Material Spec: A-S 6300 or MIL-S-6758 or MIL-S-6050
• Surface Treatment: Cadmium and chromate per QQ-P-416, Type 2, Class 2
