CBT BRIDGE TRUCK PARKER HANNIFIN 3062733 NONMETALLIC HOSE ASSY 4720-01-454-4731

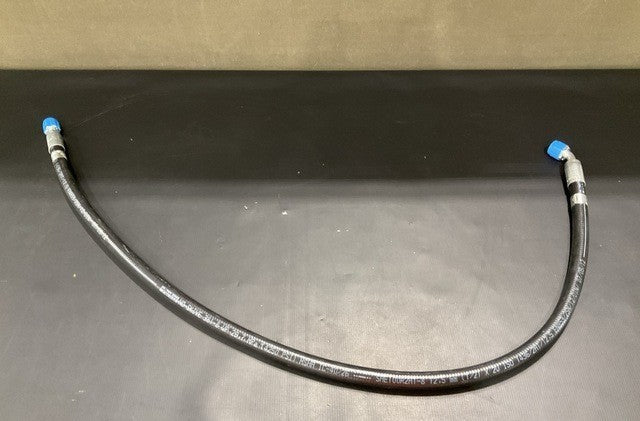

OSHKOSH CORP 3062733 Nonmetallic Hose Assembly (4720-01-454-4731)

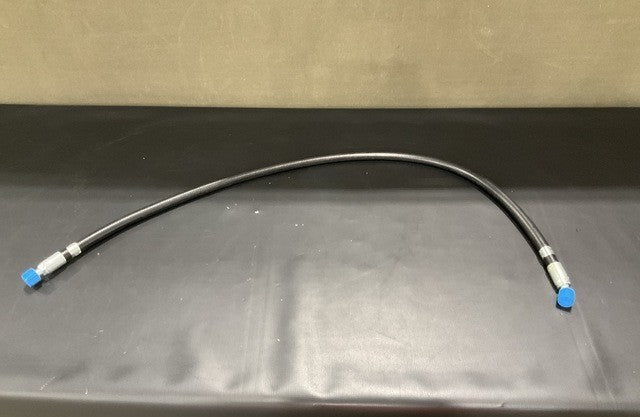

Nonmetallic hose assembly with braided steel wire reinforcement and molded synthetic rubber outer layer, for fuel/oil hydrocarbon media, for the CBT Bridge Truck.

Part Information

• Manufacturer: Oshkosh Corp
• Part Number: 3062733
• NSN: 4720-01-454-4731
• End Item: CBT Bridge Truck

Specifications

• Inside Diameter: 0.500 in nominal
• Outside Diameter: 0.880 in nominal
• Overall Length: 52.000 in nominal
• Minimum Inside Bending Radius: 7.000 in
• Operating Pressure: 4250 PSI max
• Burst Test Pressure: 17000 PSI
• Hydrostatic Test Pressure: 8500 PSI
• Temp Rating: -40.0°F to 212.0°F
• Thread Class: 3B; Thread Series: UNJF; Thread Direction: Right-Hand (both ends)

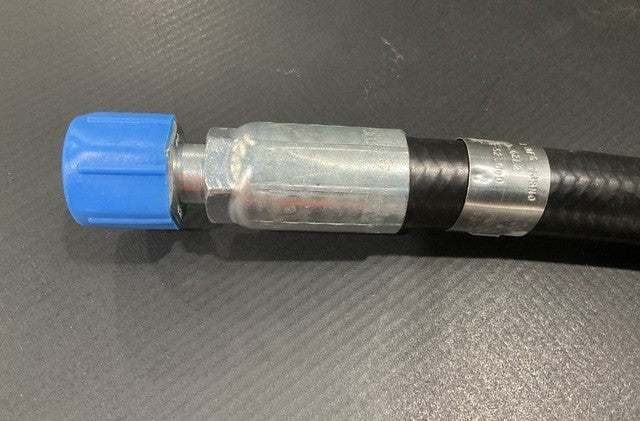

• First End: Straight, Threaded Internal Tube, 0.750 in, 37° Seat Angle

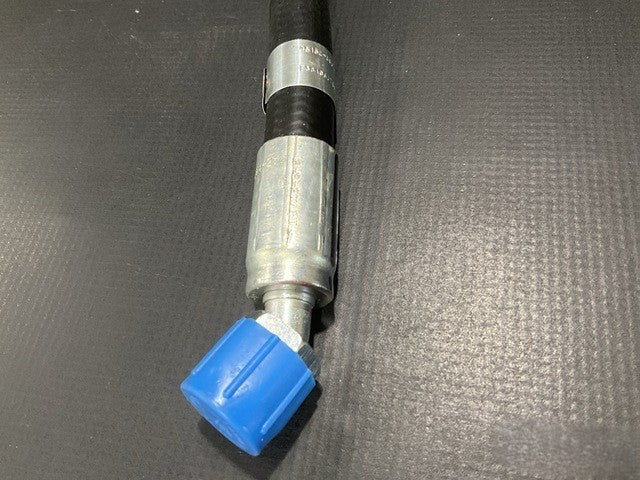

• Second End: Elbow, Threaded Internal Tube, 0.750 in, 37° Seat Angle, 45° Flow Angle

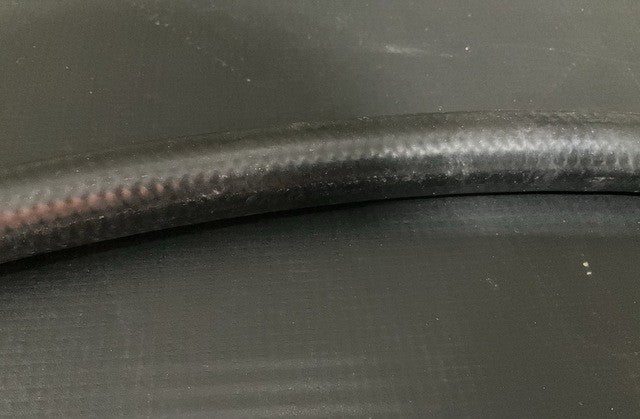

• Structural Composition: Braided Steel Wire (inner and second layer), Molded Synthetic Rubber (outer layer)
• Media: Fuel/Oil, Hydrocarbon
• Inside Surface: Smooth
