DED FORKLIFT TRUCK JLG 6608142 HEADLESS CHAMFERED STRAIGHT PIN 5315-01-294-1800

TRAK INTERNATIONAL 6608142 Headless Chamfered Straight Pin (5315-01-294-1800)

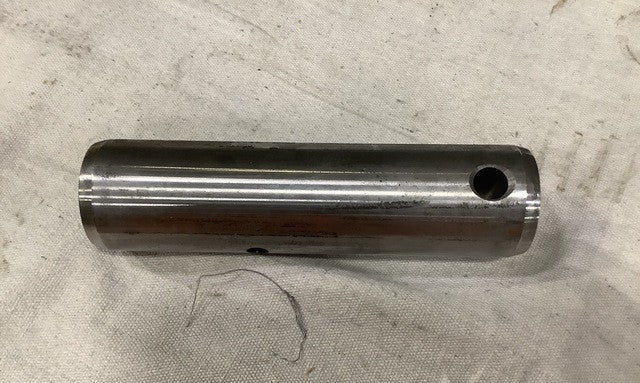

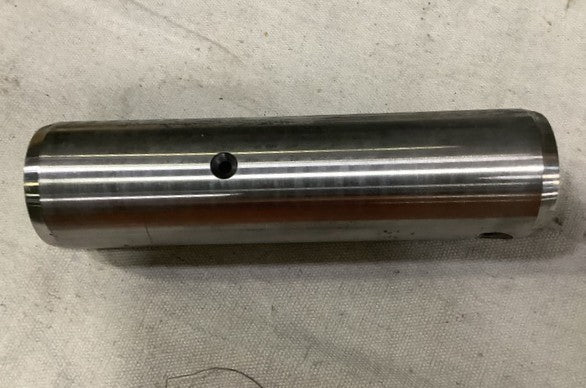

Steel 4140 headless chamfered straight pin for JLG Forklift Truck.

Part Information

• Manufacturer: TRAK INTERNATIONAL
• Part Number: 6608142
• NSN: 5315-01-294-1800
• End Item: JLG Forklift Truck
• CAGE Code: 3Y949 (referenced for induction harden spec 2111)

Specifications

• Material: Steel Comp 4140
• Overall Length: 7.560 in nominal
• Overall Diameter: 1.9970–1.9990 in
• First Hole Diameter: 0.562 in nominal
• Second Hole Diameter: 0.188 in nominal
• Distance, Centerline of Hole to End of Pin: 0.800 in nominal
• First End Taper Length: 0.250 in nominal, 15.0° angle
• Hardness: Rockwell C 53.0–59.0 (applies only to intermediate 3.600 in section)

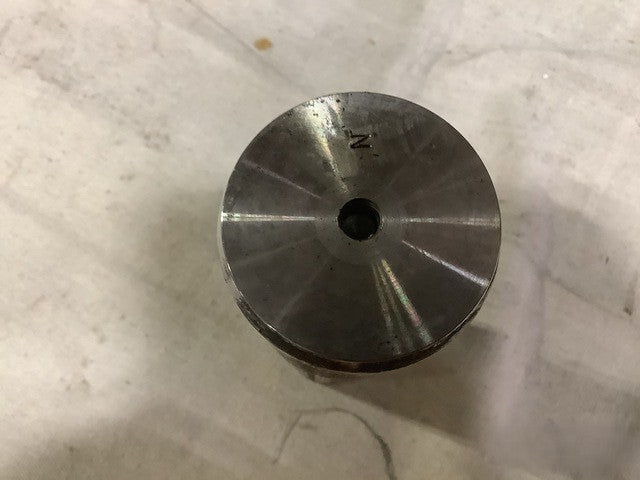

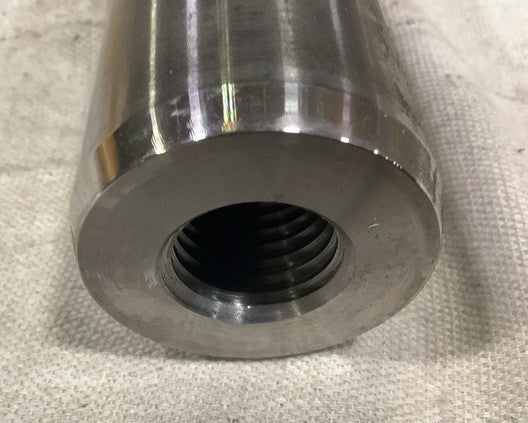

• Special Features: Induction hardened to Specification 2111 per CAGEC 3Y949, case depth 0.040–0.060 in; counterbore tap drill 1.380 in dia x 1.100 in long, threaded 1.000-8UNC-2B, 0.750 in deep; cross-drilled holes perpendicular at 90°; 0.188 in hole counterbored to 0.380 in dia, 0.060 in deep with concentric chamfer; longitudinal grease hole 0.339 in dia x 2.880 in deep with 0.125 in NPT, 0.120 in special shallow depth
