FMTV LMTV 12417332 03-18946-00 ECCENTRIC HEAD BOLT D528280-5 5306-01-369-8893
FMTV LMTV 12417332 03-18946-00 ECCENTRIC HEAD BOLT D528280-5 5306-01-369-8893
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5306-01-369-8893 Specs and cross-references for NSN 5306-01-369-8893 (opens in a new tab) ↗

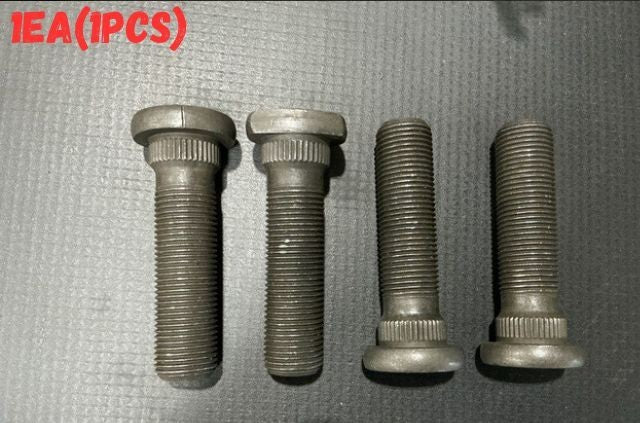

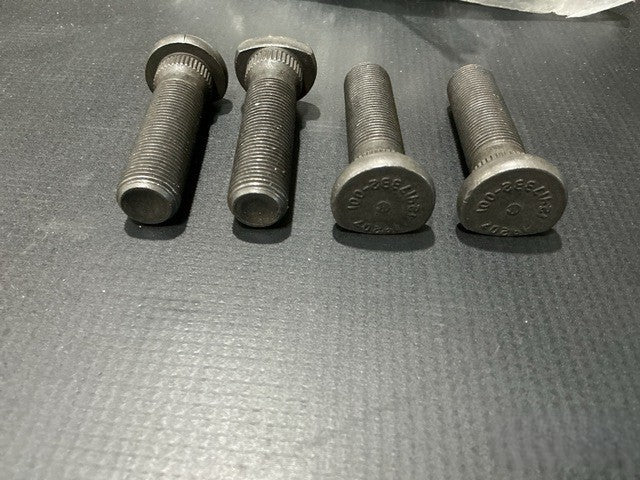

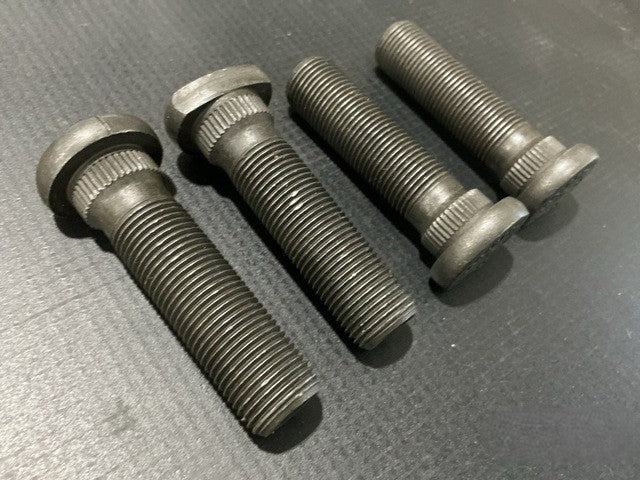

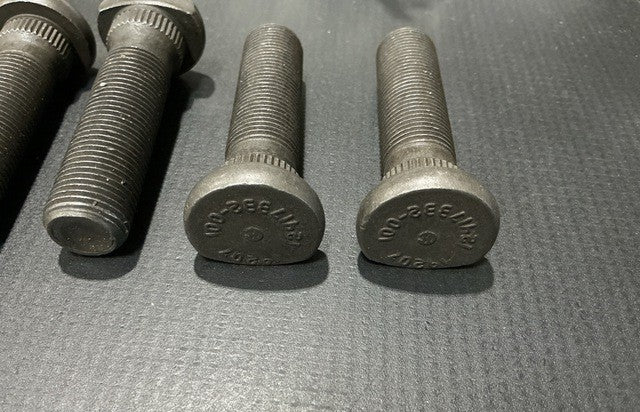

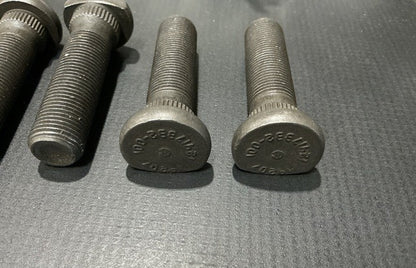

12417332-001 Eccentric Head Bolt (NSN 5306-01-369-8893)
Eccentric head bolt, steel, for FMTV LMTV.
Part Information
- Design Control Activity: U S Army Tank Automotive Command
- Part Number: 12417332-001
- NSN: 5306-01-369-8893
- End Item: FMTV LMTV
Specifications
- Thread Class: 3A
- Thread Direction: Right-hand
- Thread Series Designator: UNF
- Nominal Thread Diameter: 0.625 in
- Threads Per Inch: 18
- Fastener Length: 2.440 in nominal
- Head Diameter: 1.060 in nominal
- Head Height: 0.220 in nominal
- Distance from Centerline to Flat: 0.3437-0.3462 in
- Distance from Center of Head to Center of Shank: 0.780 in nominal
- Material: Steel, SAE J429 GR8
- Surface Treatment: Zinc Phosphate
Fits
This NSN is listed in the U.S. Army repair parts manuals for:

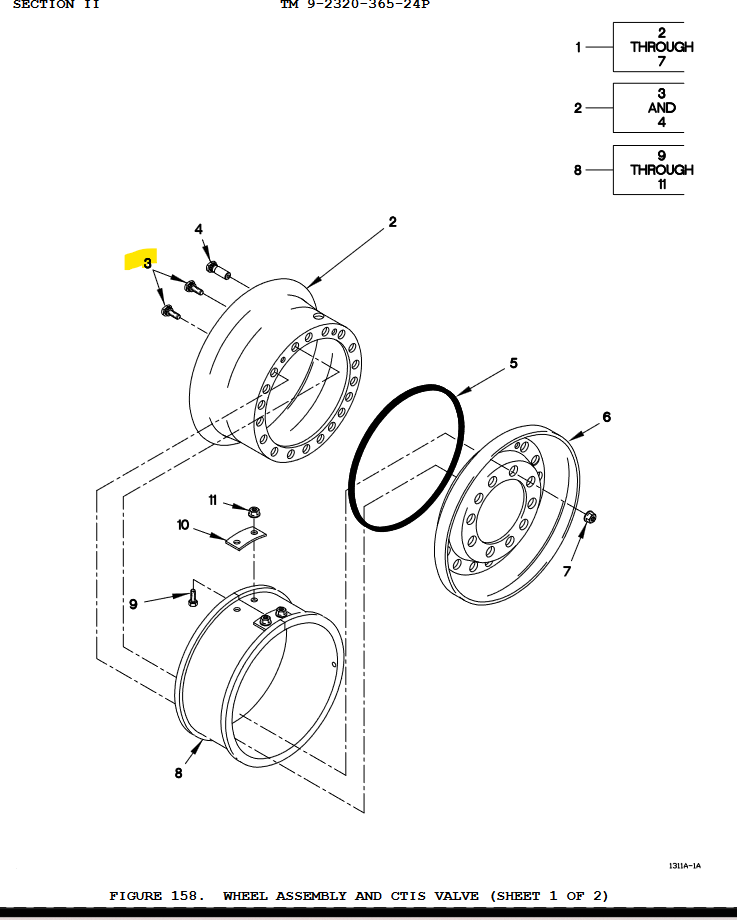

- FMTV 2-1/2 ton LMTV: M1078, M1079, M1080, M1081 and variants (TM 9-2320-365-24P)
- FMTV 5-ton MTV: M1083, M1084, M1085, M1086, M1088 and variants (TM 9-2320-366-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
