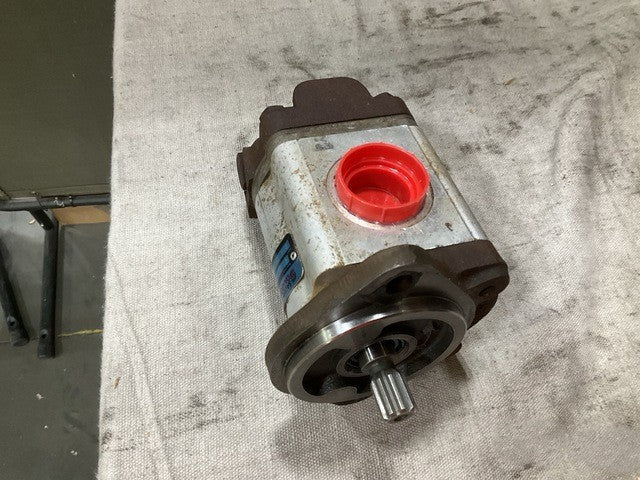

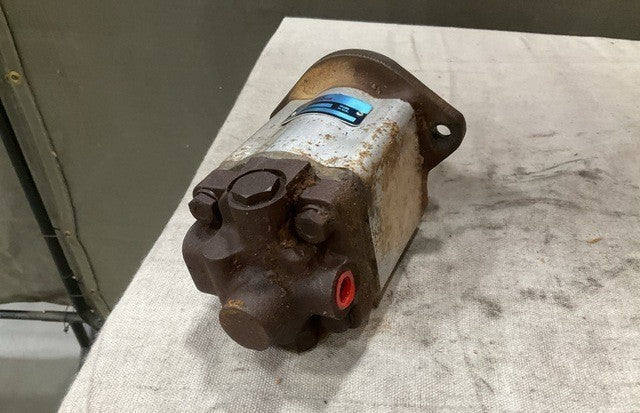

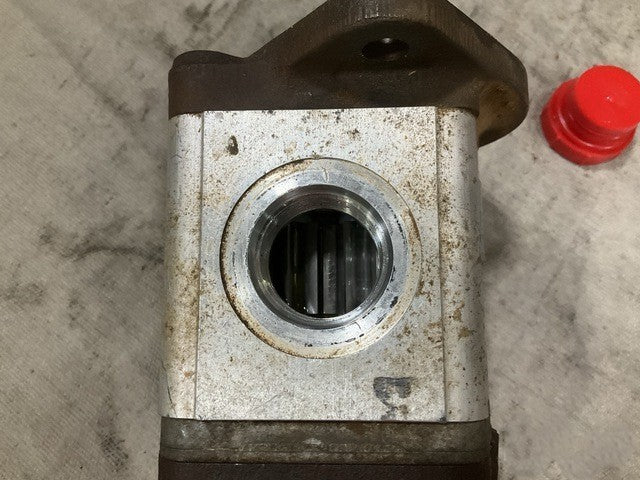

Fmtv Lmtv Sauer Danfoss A17L 34011 Power Steering Pump ASSY | NSN 2530-01-494-5659 NOS

Fmtv Lmtv Sauer Danfoss A17L 34011 Power Steering Pump ASSY | NSN 2530-01-494-5659 NOS

$839.15 USD
$839.15 USD
Sale Sold out
Shipping calculated at checkout.

NSN 2530-01-494-5659 Specs and cross-references ↗

12414372 Power Pump Assembly (NSN 2530-01-494-5659)

Power steering pump assembly for the FMTV LMTV.

Part Information

  • Design Control Activity: U.S. Army Tank Automotive Command
  • Part Number: 12414372
  • NSN: 2530-01-494-5659
  • End Item: FMTV LMTV

Specifications

  • Flow rate (output) vs speed is linear
  • Max pump temp: 120°F continuous or 140°F intermittent
  • Nominal fluid displacement: 17 L per 1000 revolutions
  • Max pressure capacity: 180.0 bar
  • Shaft speed: 3500.0 RPM
  • Pump rotates in counterclockwise direction
