FMTV TACTICAL TRUCK BAE SYSTEMS 12419042 NON-METALLIC HOSE ASSY 4720-01-442-4364
FMTV TACTICAL TRUCK BAE SYSTEMS 12419042 NON-METALLIC HOSE ASSY 4720-01-442-4364
Regular price
$162.67 USD
Regular price
Sale price
$162.67 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4720-01-442-4364 Specs and cross-references for NSN 4720-01-442-4364 (opens in a new tab) ↗

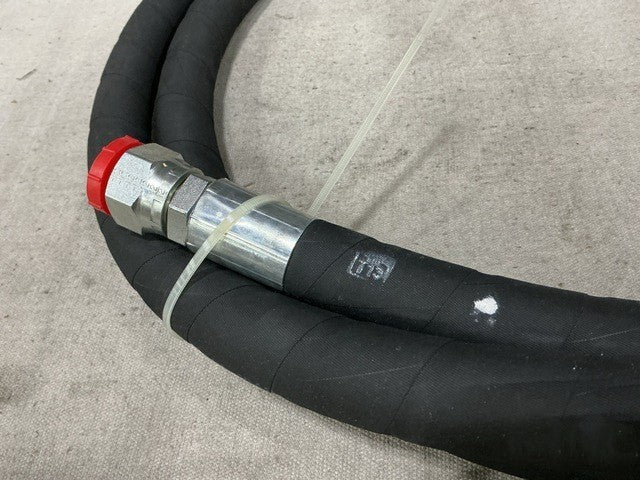

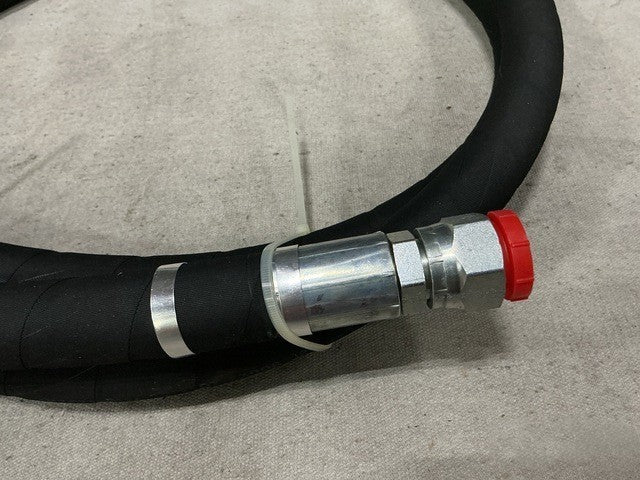

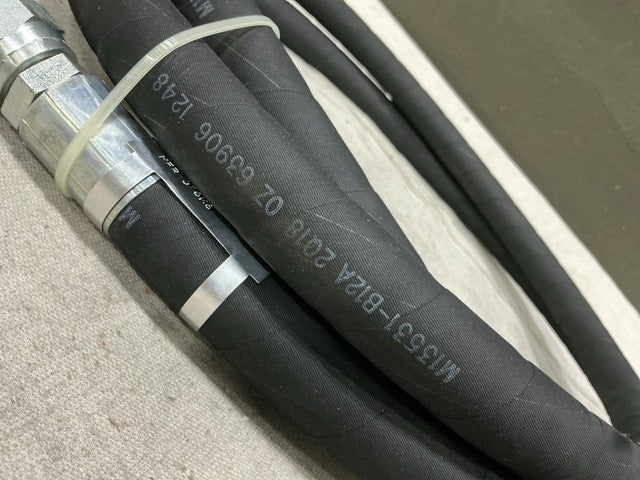

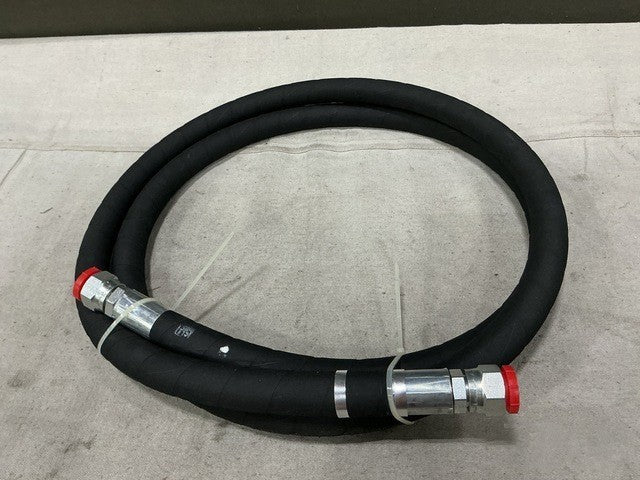

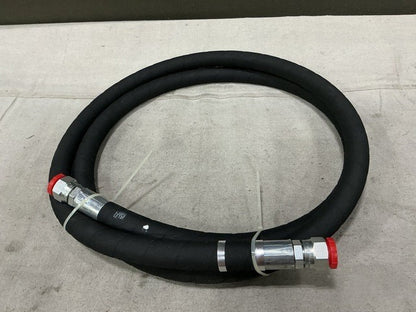

AMZ ALABAMA INC 12419042 Nonmetallic Hose Assembly (4720-01-442-4364)
Nonmetallic hose assembly, 0.750 in nominal ID, first end straight threaded internal tube connection, rated for fuel/oil hydrocarbon media, for the FMTV Tactical Truck.
Part Information
- Manufacturer: AMZ Alabama Inc
- Part Number: 12419042
- NSN: 4720-01-442-4364
- End Item: FMTV Tactical Truck
Specifications
- Thread Class: 3B
- Thread Direction: First end, right-hand
- Inside Diameter: 0.750 in nominal
- Outside Diameter: 1.250 in nominal
- Minimum Inside Bending Radius: 9.500 in
- End Connection Design: First end, straight
- Connection Type: First end, threaded internal tube
- Thread Quantity Per Inch: 12
- Nominal Thread Size: First end, 1.062 in
- Thread Series Designator: First end, UN
- Seat Angle: First end, 37.0 degrees
- Burst Test Pressure: 9000.0 PSI
- Operating Pressure: 2250.0 PSI maximum
- Temp Rating: -65.0°F to 200.0°F
- Inside Surface Condition: Smooth
- Overall Length: 3200.0 mm nominal
- Media For Which Designed: Fuel/oil, hydrocarbon
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- FMTV 2-1/2 ton LMTV: M1078, M1079, M1080, M1081 and variants (TM 9-2320-365-24P)
- FMTV 5-ton MTV: M1083, M1084, M1085, M1086, M1088 and variants (TM 9-2320-366-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
