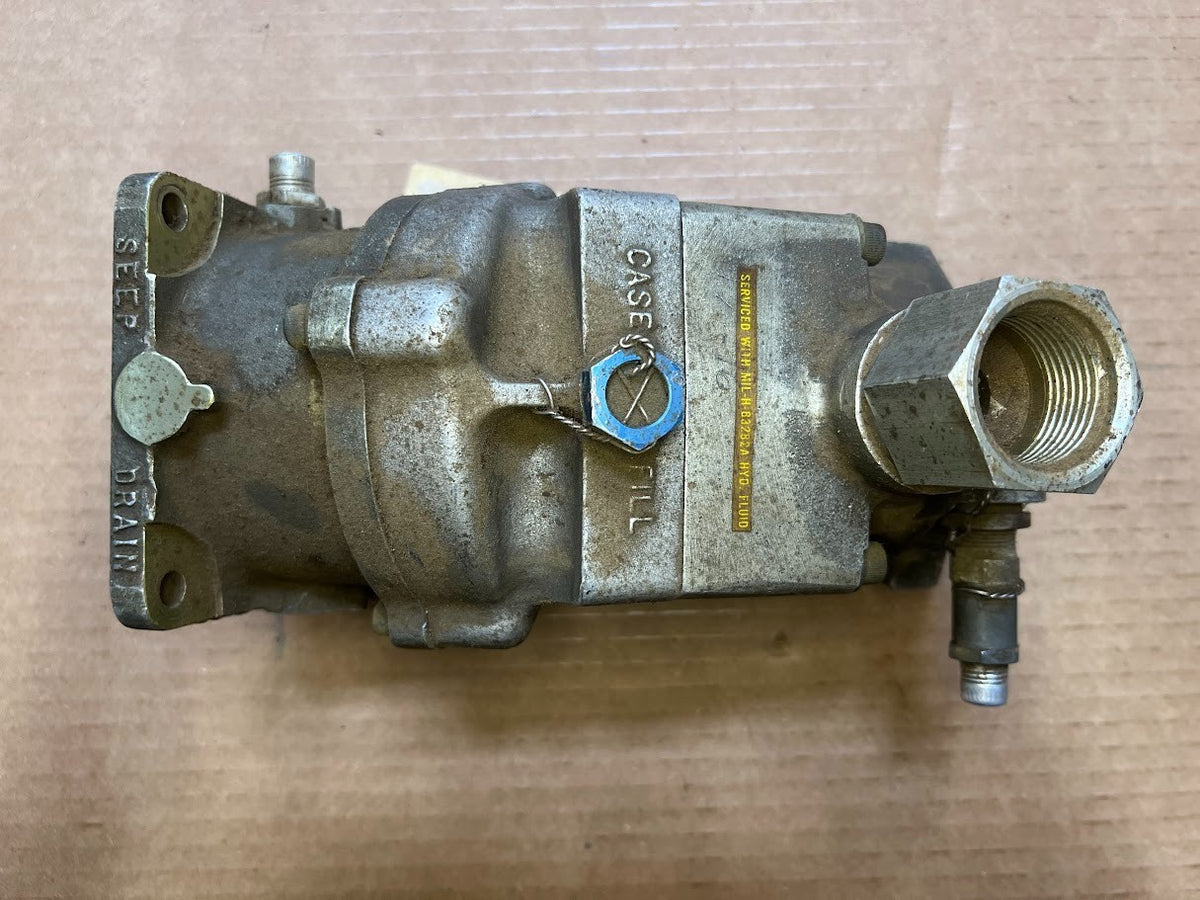

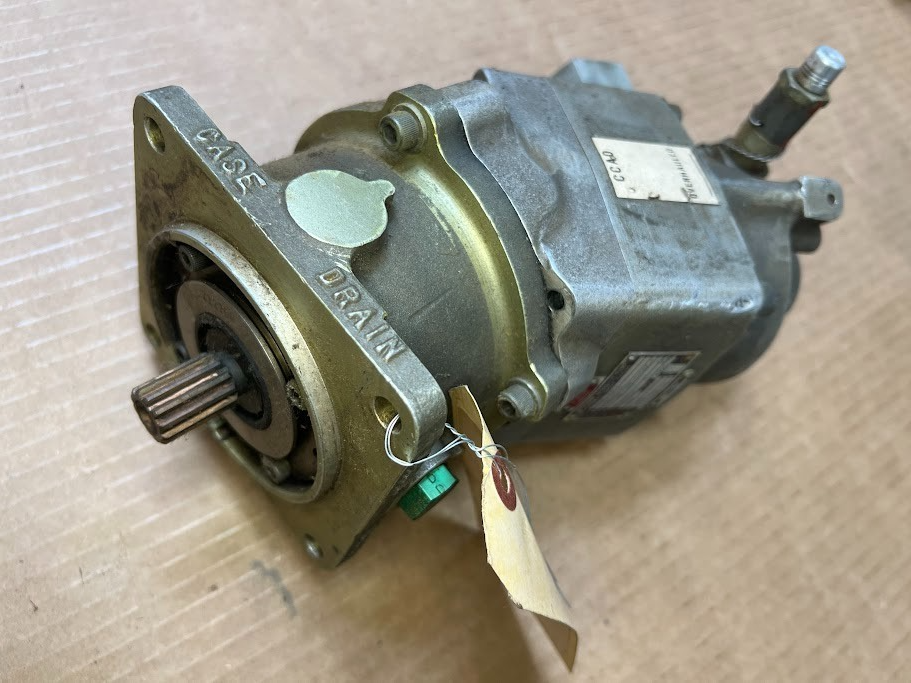

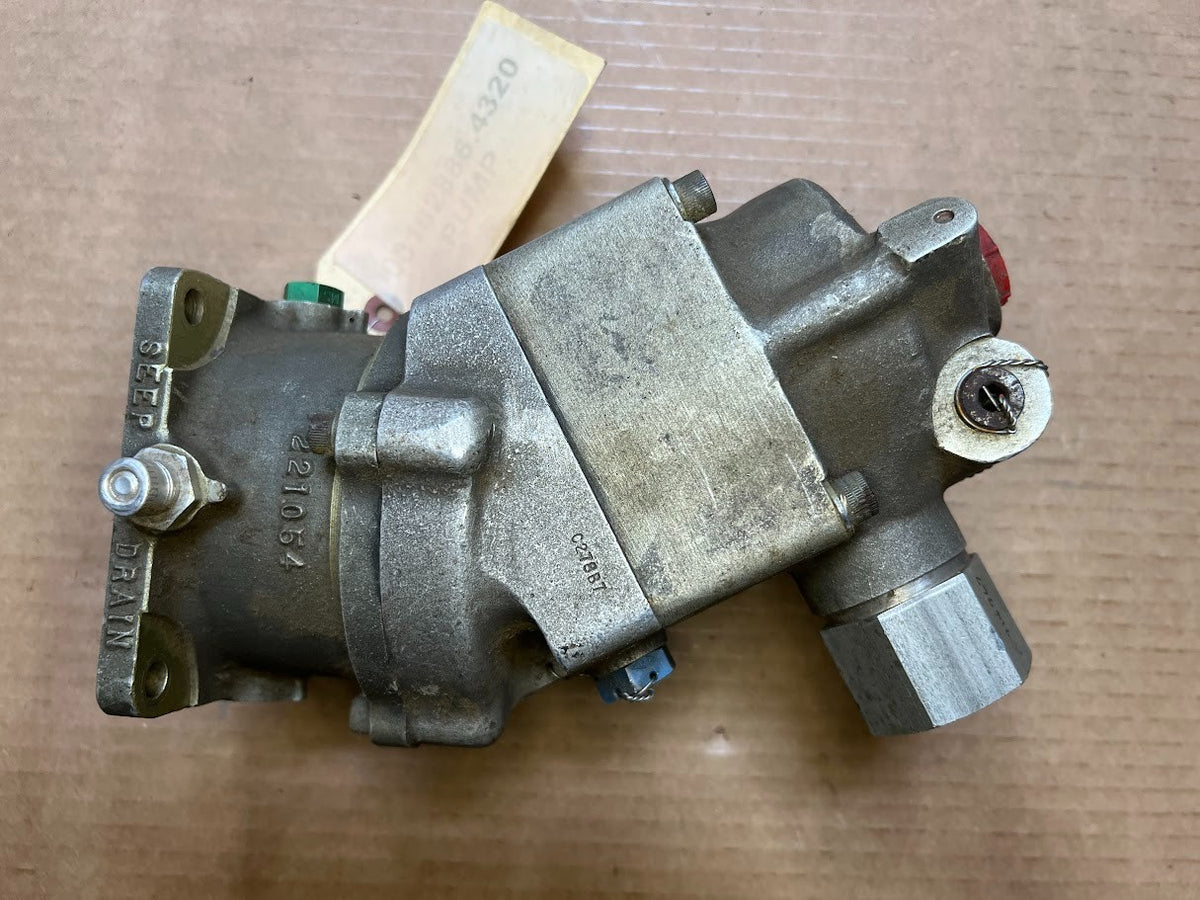

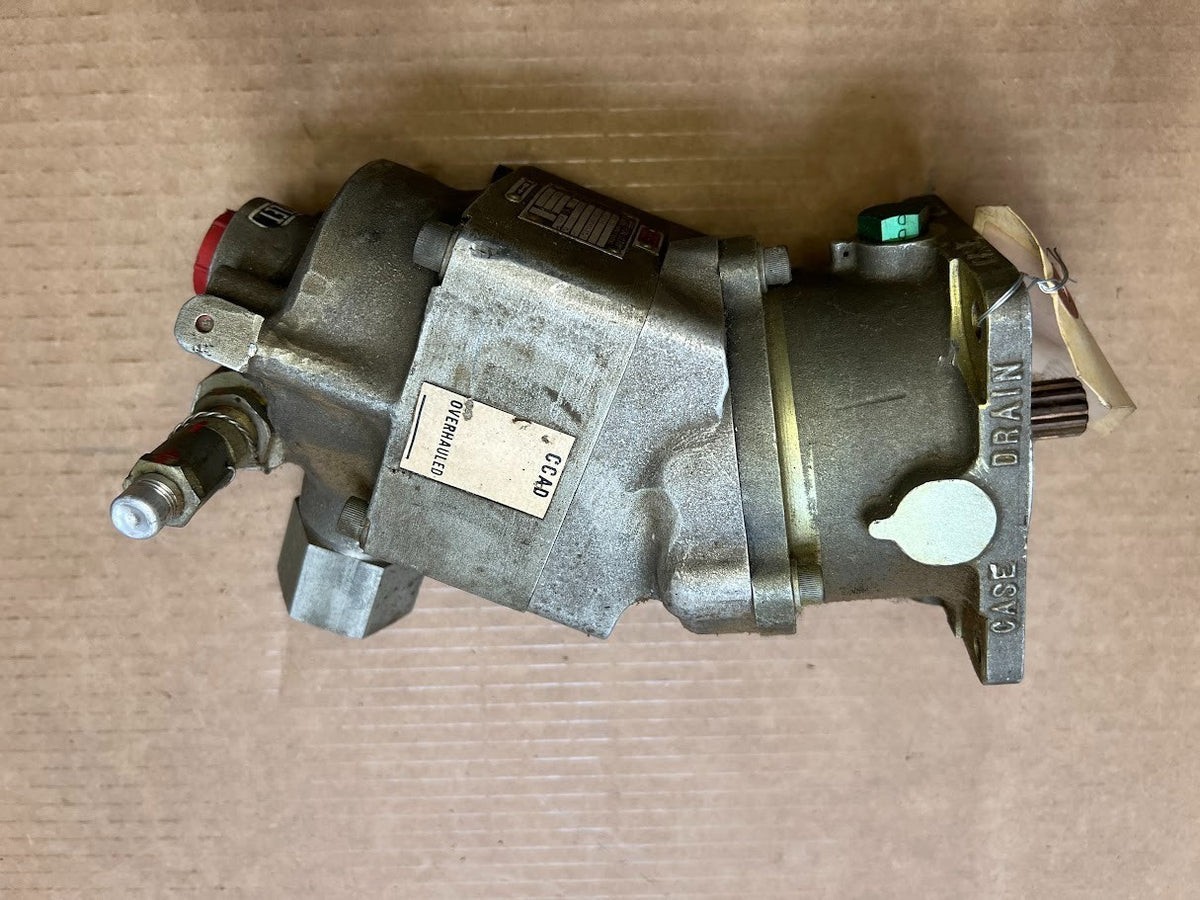

Boeing 114HS130-9 Axial Pistons Pump (NSN 4320-00-016-2886)
Boeing 114HS130-9 axial pistons pump, base-mounted, single-cylinder, variable stroke, pressure-compensated, for the CH-47.
Part Information
- Manufacturer: The Boeing Company
- Part Number: 114HS130-9
- NSN: 4320-00-016-2886
- End Item: CH-47
Specifications
- Mounting Type: Base
- Cylinder Quantity: 1
- Intake Connection: 1, Threaded Internal
- Discharge Connection: 1, Threaded Internal
- Drive Connection Type: Gear
- Pumping Element Type: Piston
- Discharge Pressure: 4000 PSIG
- Operating Speed at Rated Capacity: 7000 RPM
- Pump Rotation Direction: Counterclockwise
- Pump Reciprocating Design: Single Acting
- Reciprocating Stroke Type: Variable
- Volume Control Type: Pressure Compensation
- Drive Shaft Type: Splined, Involute Internal
- Drive Shaft Length: 1.060 in nominal
- Media: Fuel/Oil, Hydrocarbon
