MODINE

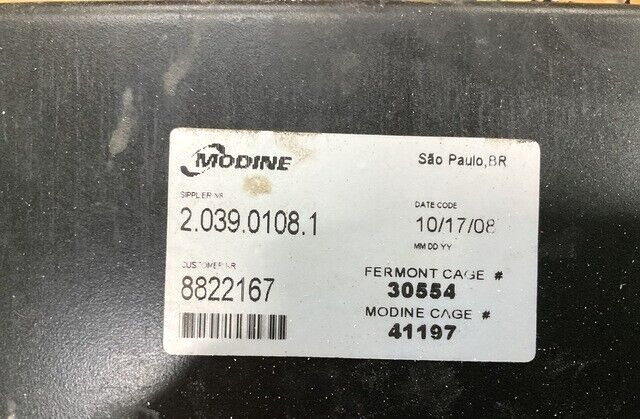

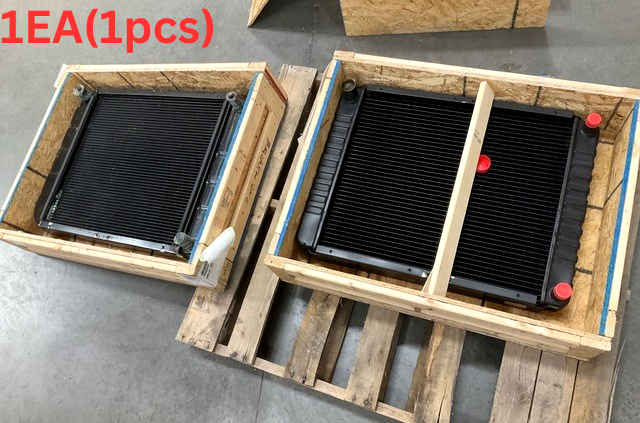

Generator 15KW Modine 8822167 Engine Coolant Radiator X-5518 | NSN 2930-01-368-1071
Generator 15KW Modine 8822167 Engine Coolant Radiator X-5518 | NSN 2930-01-368-1071
Couldn't load pickup availability
NSN 2930-01-368-1071 Specs and cross-references for NSN 2930-01-368-1071 (opens in a new tab) ↗
|
Name |
Value |
|
OVERALL HEIGHT |
22.280 INCHES NOMINAL |
|
OVERALL WIDTH |
30.250 INCHES NOMINAL |
|
OVERALL THICKNESS |
3.690 INCHES NOMINAL |
|
CORE WIDTH |
24.500 INCHES NOMINAL |
|
CORE HEIGHT |
22.036 INCHES NOMINAL |
|
TANK MATERIAL |
BRASS SINGLE TANK CENTER |
|
TANK HEIGHT |
21.250 INCHES NOMINAL SINGLE TANK CENTER |
|
TANK WIDTH |
24.000 INCHES NOMINAL SINGLE TANK CENTER |
|
CRITICALITY CODE JUSTIFICATION |
FEAT |
|
SPECIAL FEATURES |
WEAPON SYSTEM ESSENTIAL |
Please note: Freight is a flat fee of $150 when shipped to either a commercial address or freight terminal. Residential shipping is available, but will cost $100 more, for a total of $250. Freight prices are subject to change depending on delivery address.
Fits
This NSN is listed in the U.S. Army repair parts manuals for:
- Tactical quiet generator 15 kW: MEP-804A, MEP-804B (TM 9-6115-643-24P)
Confirm against your vehicle's data plate or technical manual before ordering. Call or email us with your vehicle model and we will check it for you.
