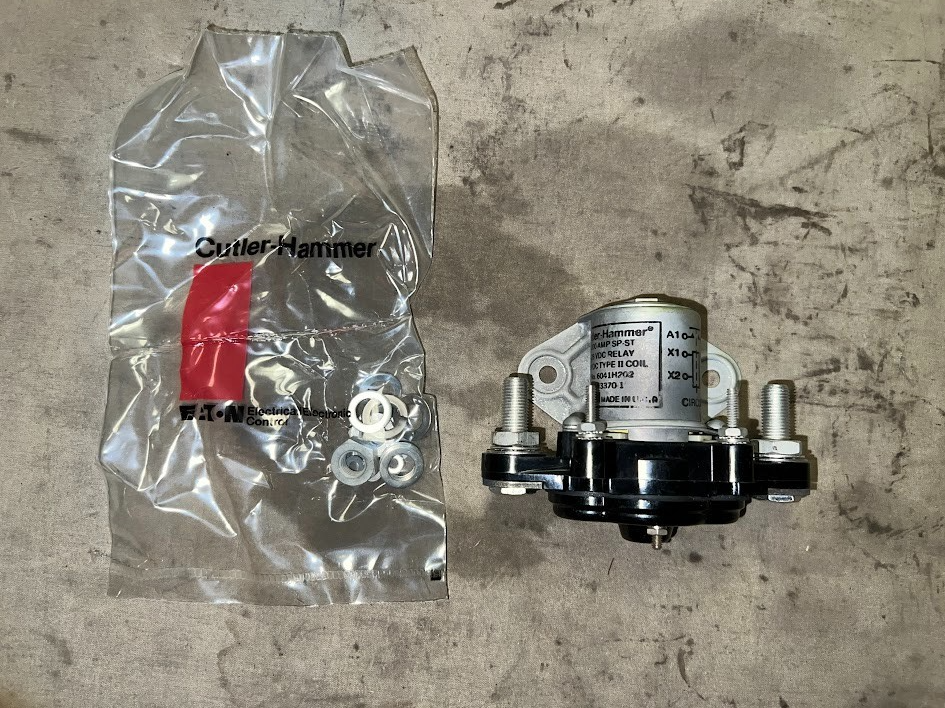

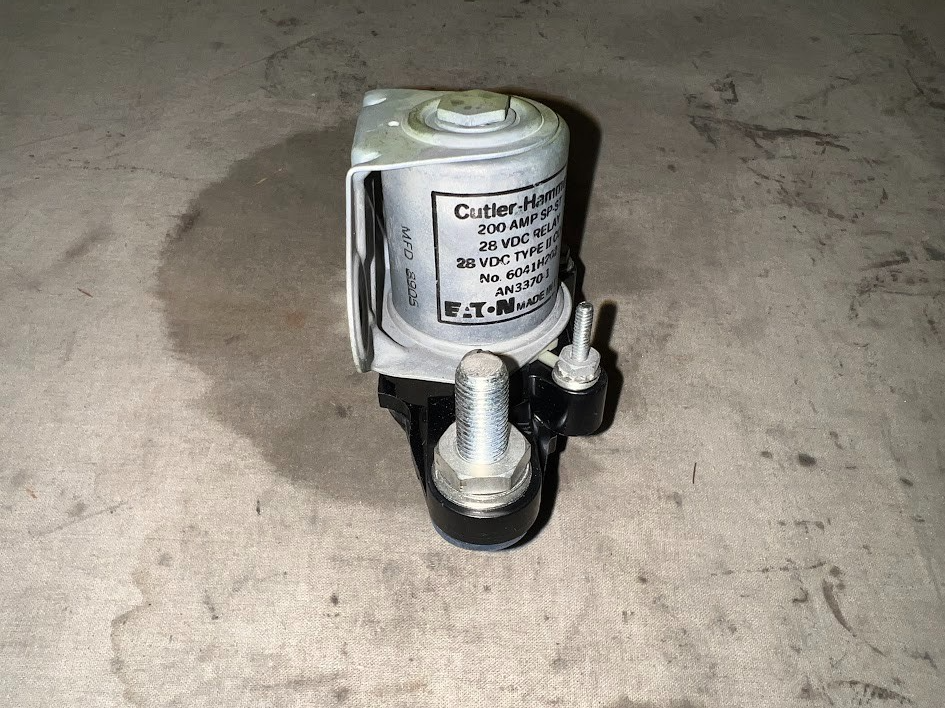

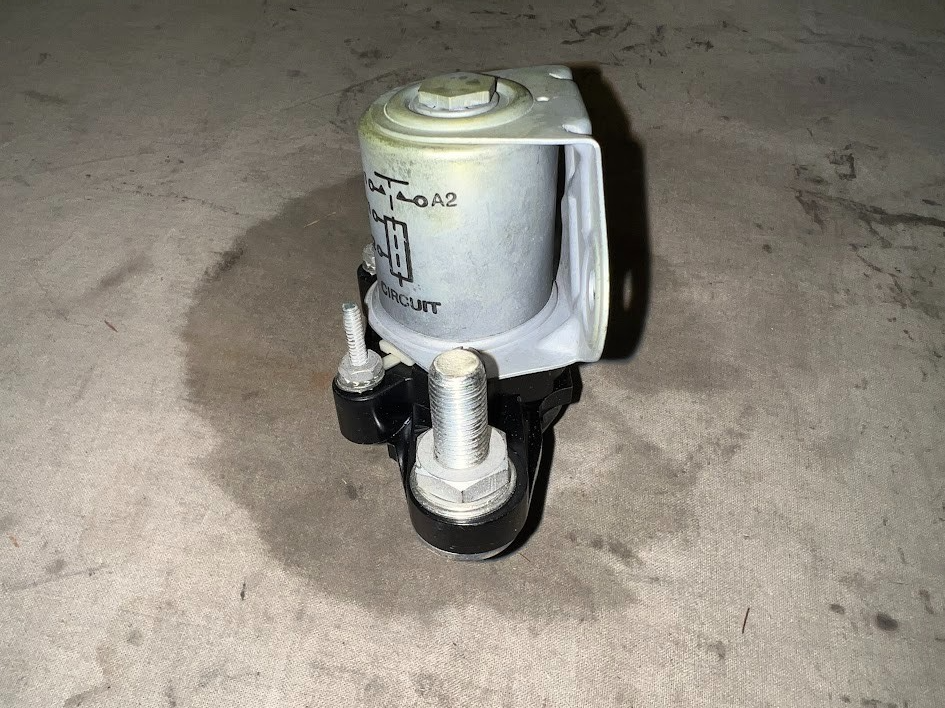

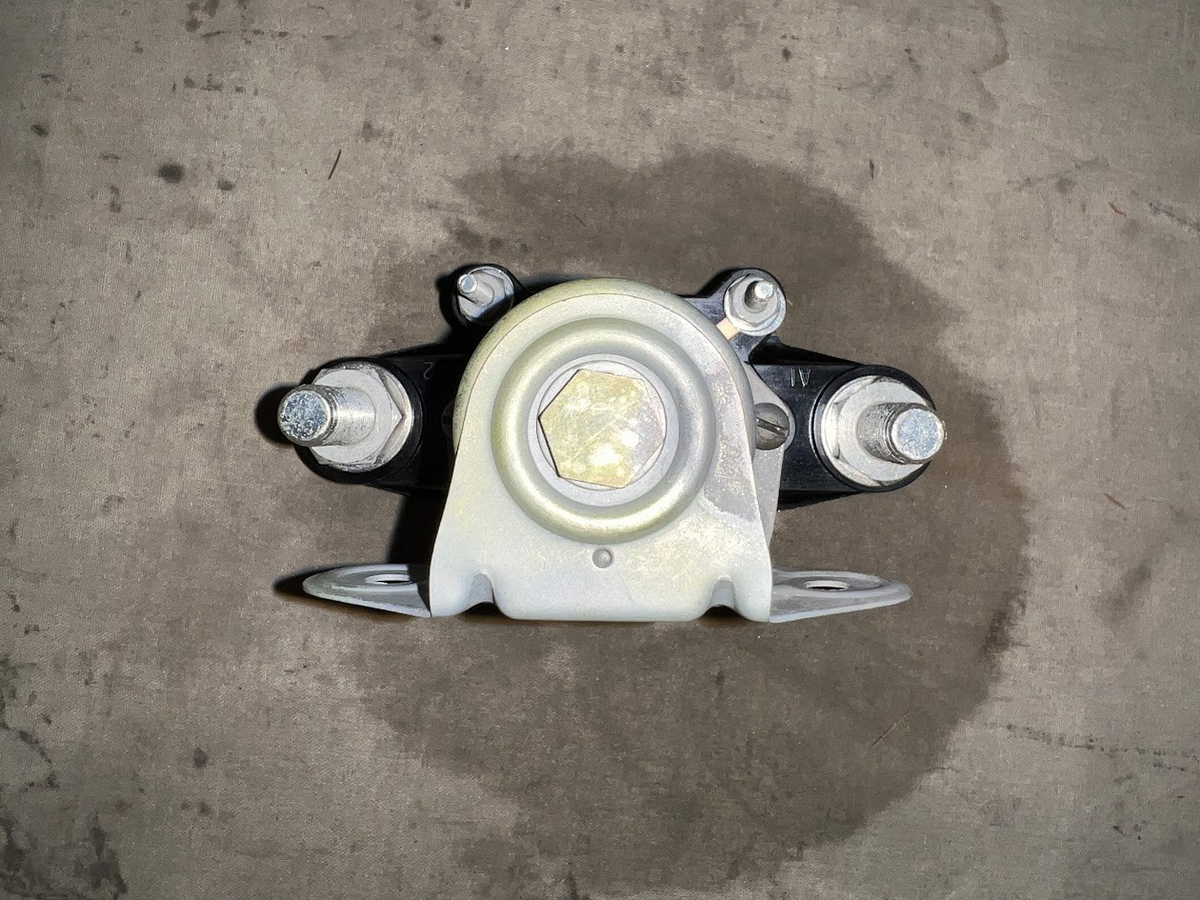

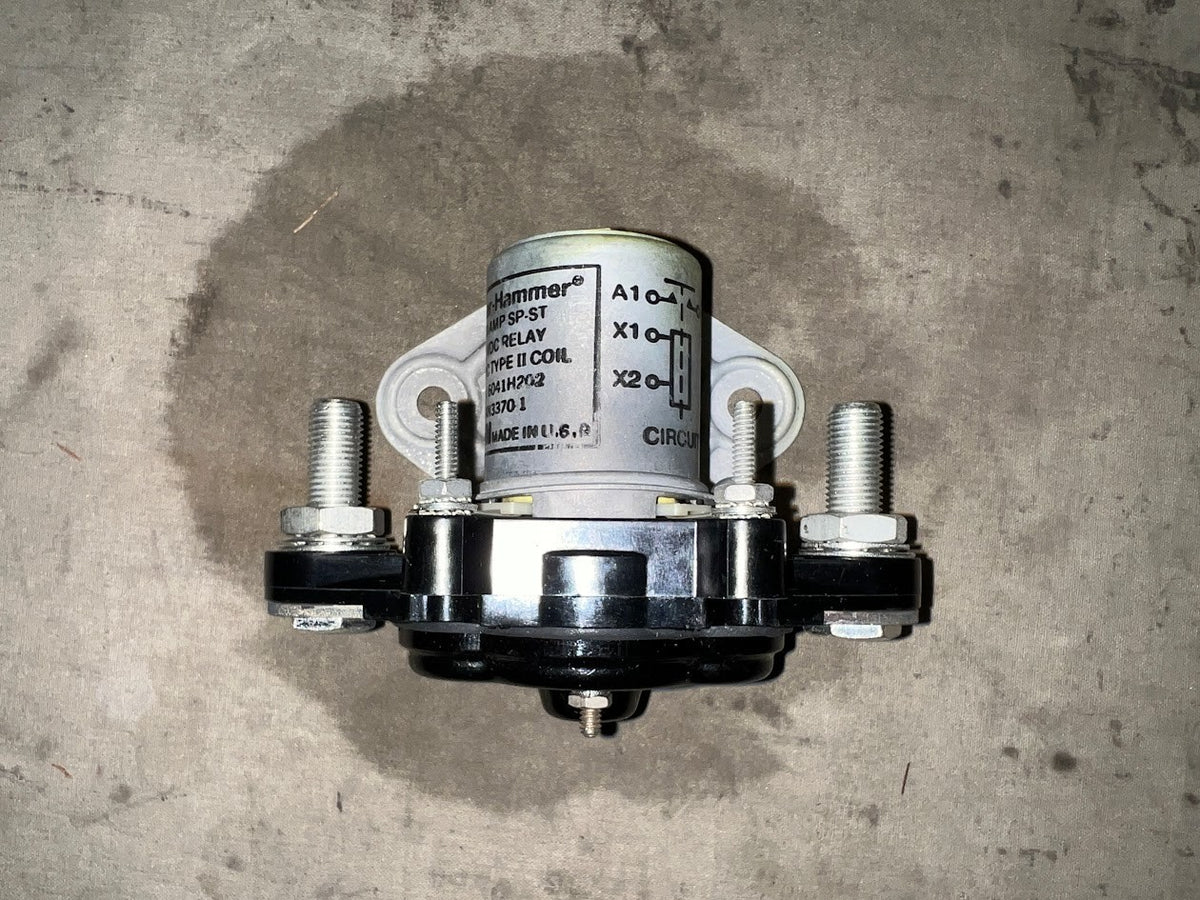

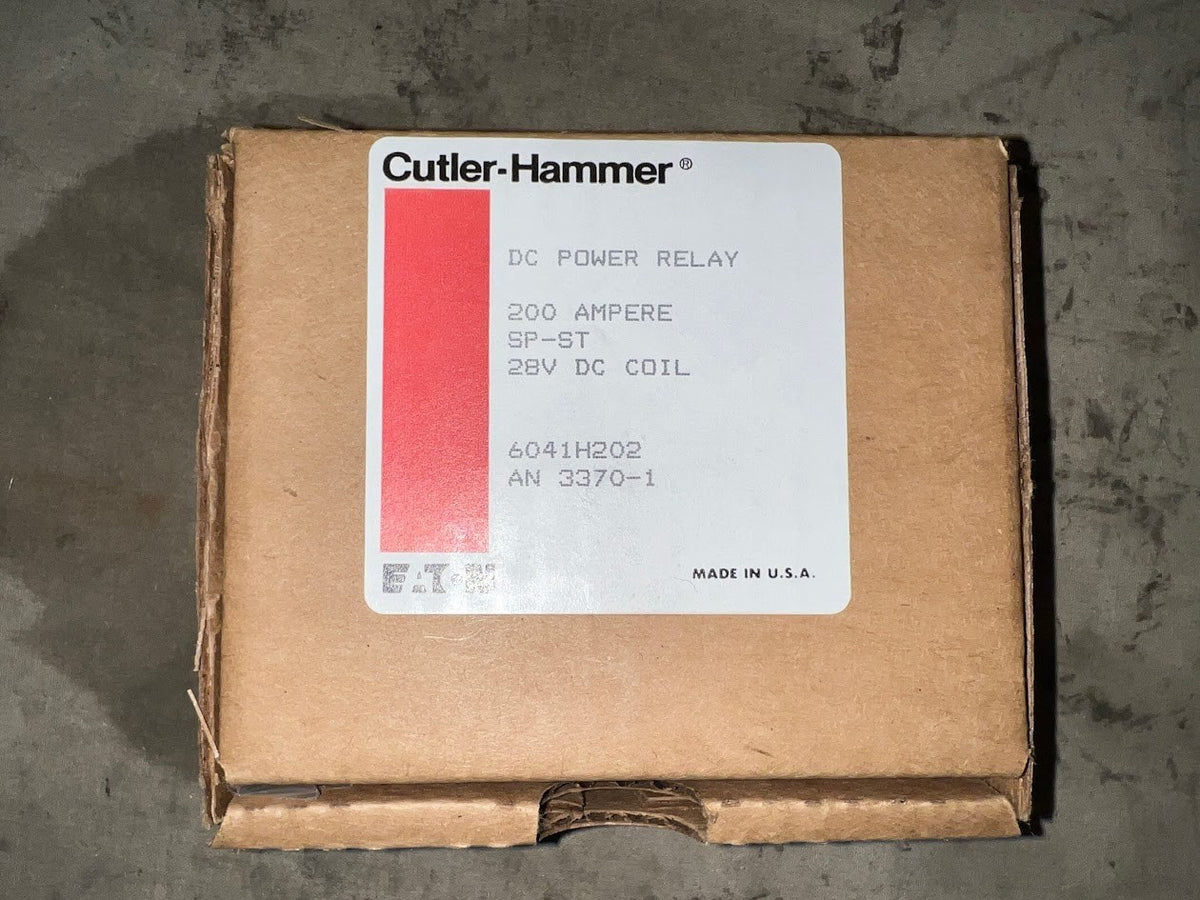

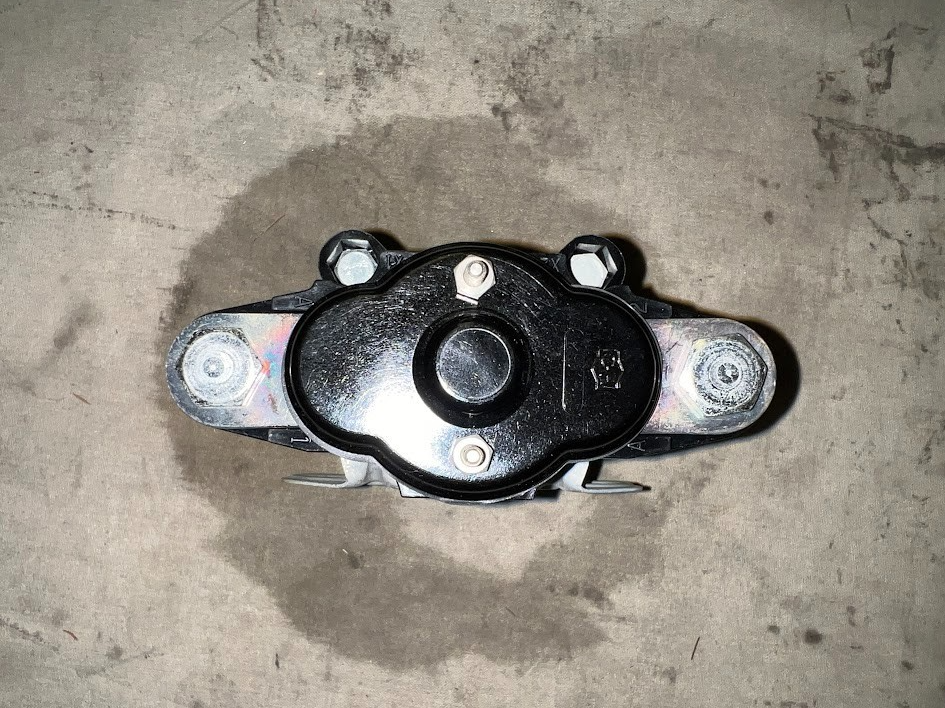

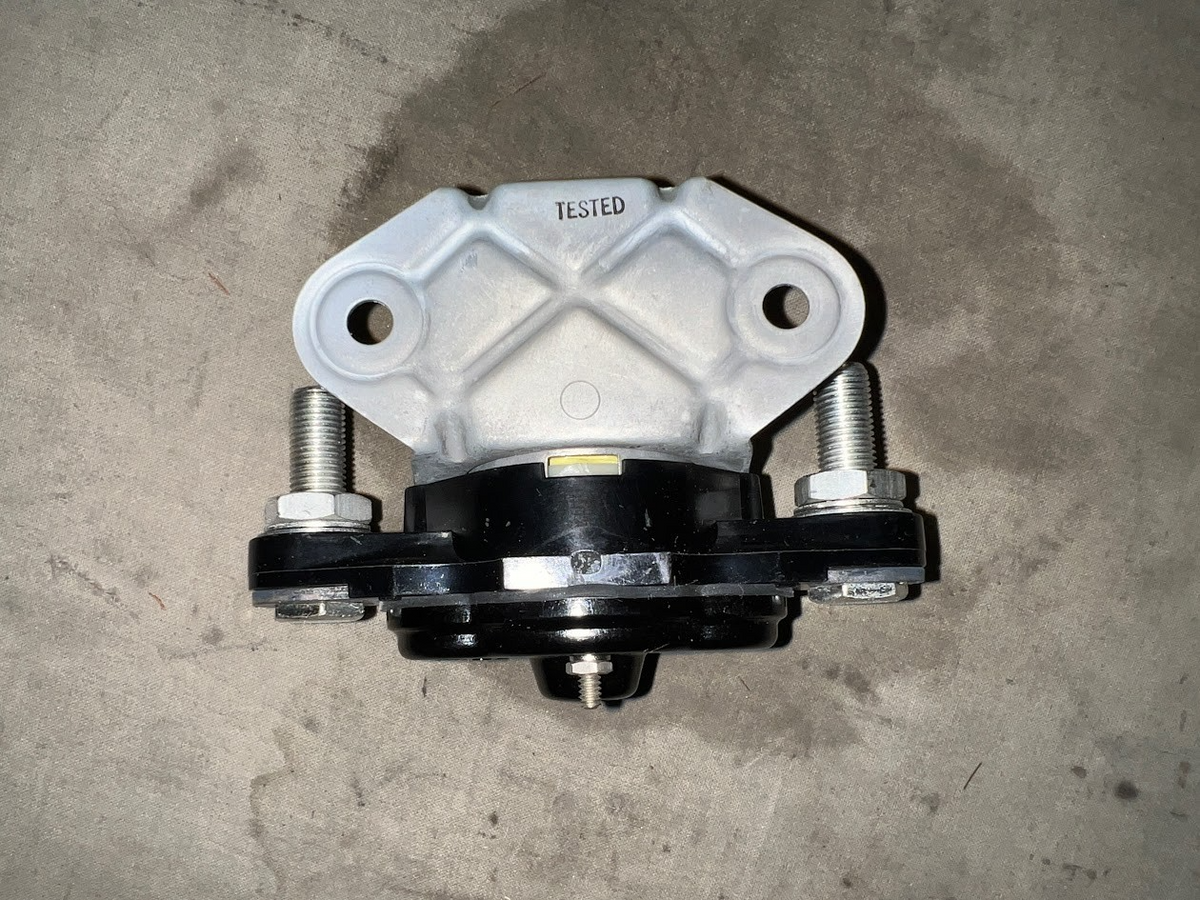

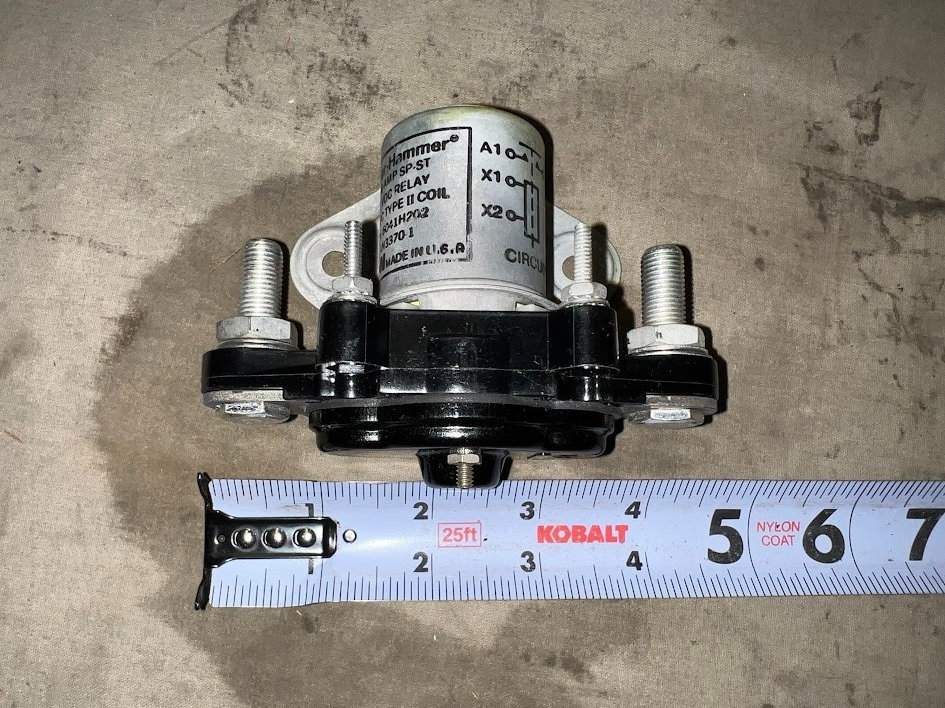

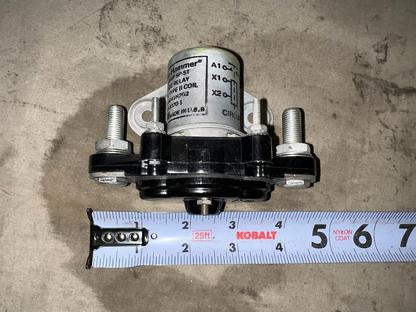

Genuine Eaton 6041H202 28V DC Coil Electromagnetic Relay 96-9197 | 5945008473035

Eaton 6041H202 Electromagnetic Relay (5945-00-847-3035)

Electromagnetic relay, 28V DC single-winding coil, dustproof and explosion proof enclosure, 2A main contact arrangement.

Part Information

• Manufacturer: Eaton (Safran Power USA, LLC)
• Part Number: 6041H202
• Alternate Part Number: 96-9197
• Military Part Number: MS24171-D2
• NSN: 5945-00-847-3035

Specifications

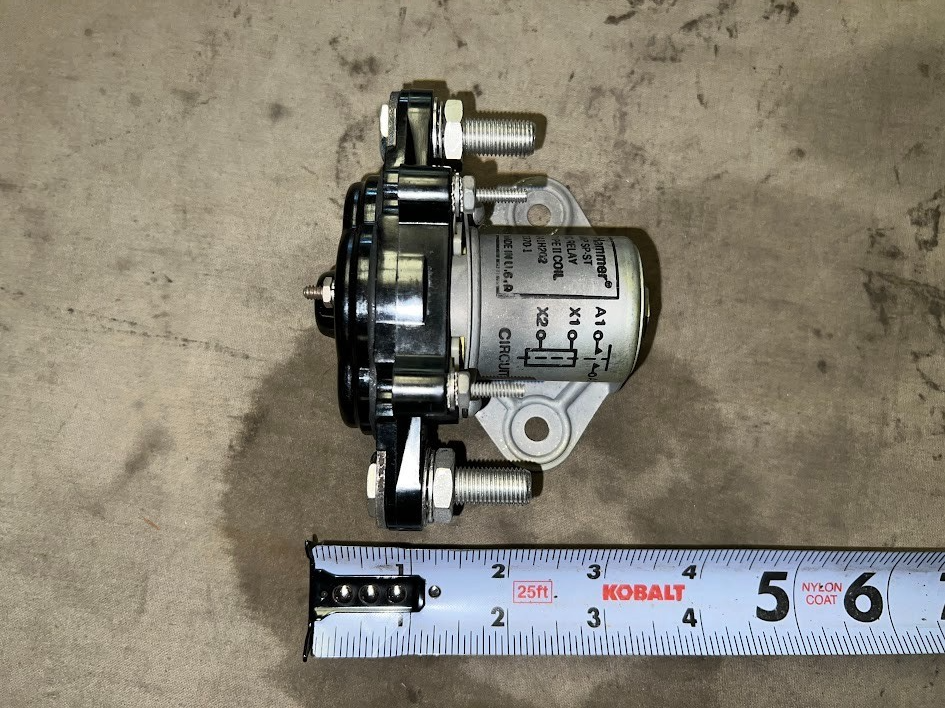

• Overall Length: 4.400 in nominal
• Overall Height: 3.280 in nominal
• Overall Width: 2.000 in maximum
• Environmental Protection: Dustproof and Explosion Proof
• Unthreaded Mounting Hole Diameter: 0.469 in nominal, single mounting facility
• Winding Quantity: 1
• Coil Quantity: 1
• Winding DC Resistance: 70.0 ohms nominal
• Duty Type: Continuous
• Mounting Facility: Single mounting facility, 2 unthreaded holes, in-line pattern
• Main Contact Form Arrangement: 2A
• Nominal Operating Current: 34.0 amperes DC
• Operating Voltage Rating: 28.0 volts DC at 25°C
• Main Contact Load Current Rating: 200.0 amperes DC, inductive load
• Main Contact Maximum Voltage Rating: 28.0 volts DC
