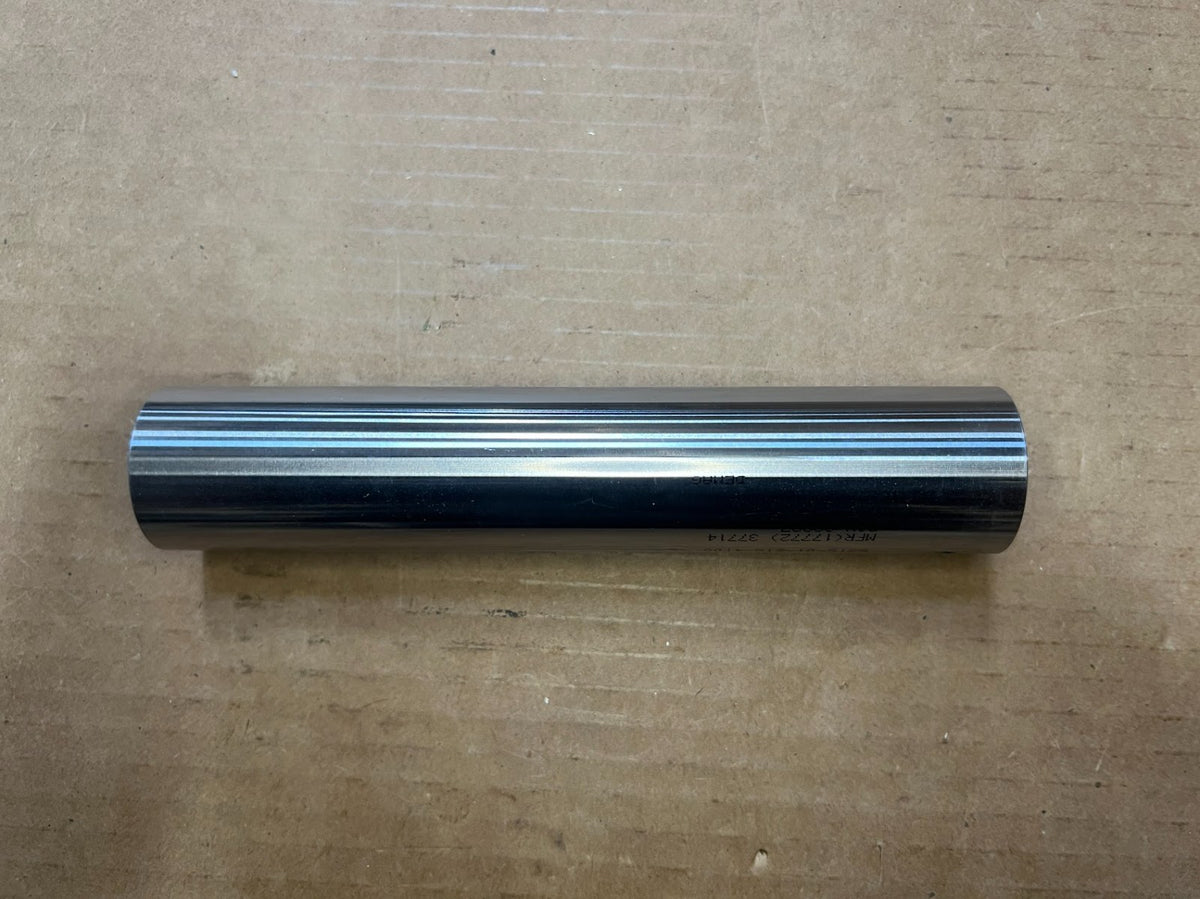

• Hollow Pin 1292594-101 NSN 5315-01-216-4100

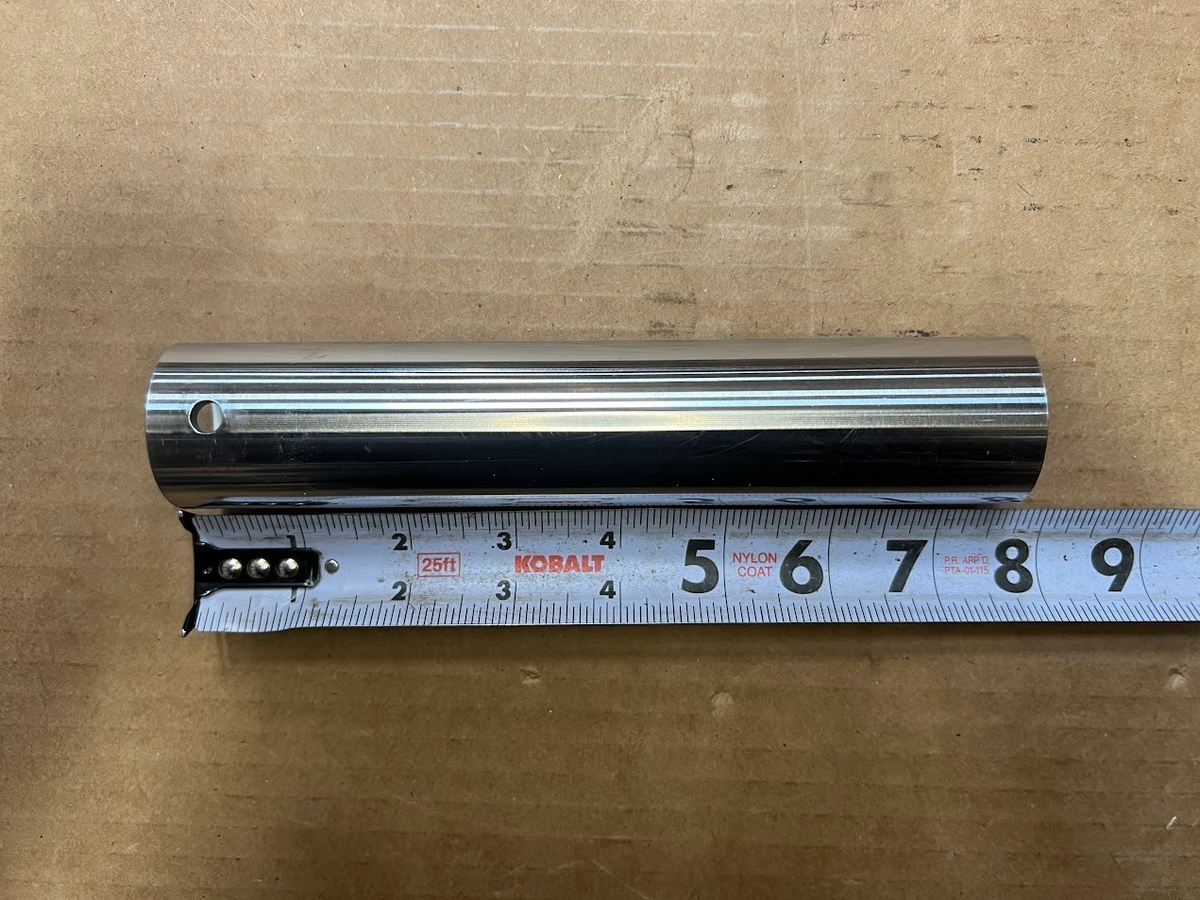

  • Hollow Pin 1292594-101 NSN 5315-01-216-4100 - photo 2

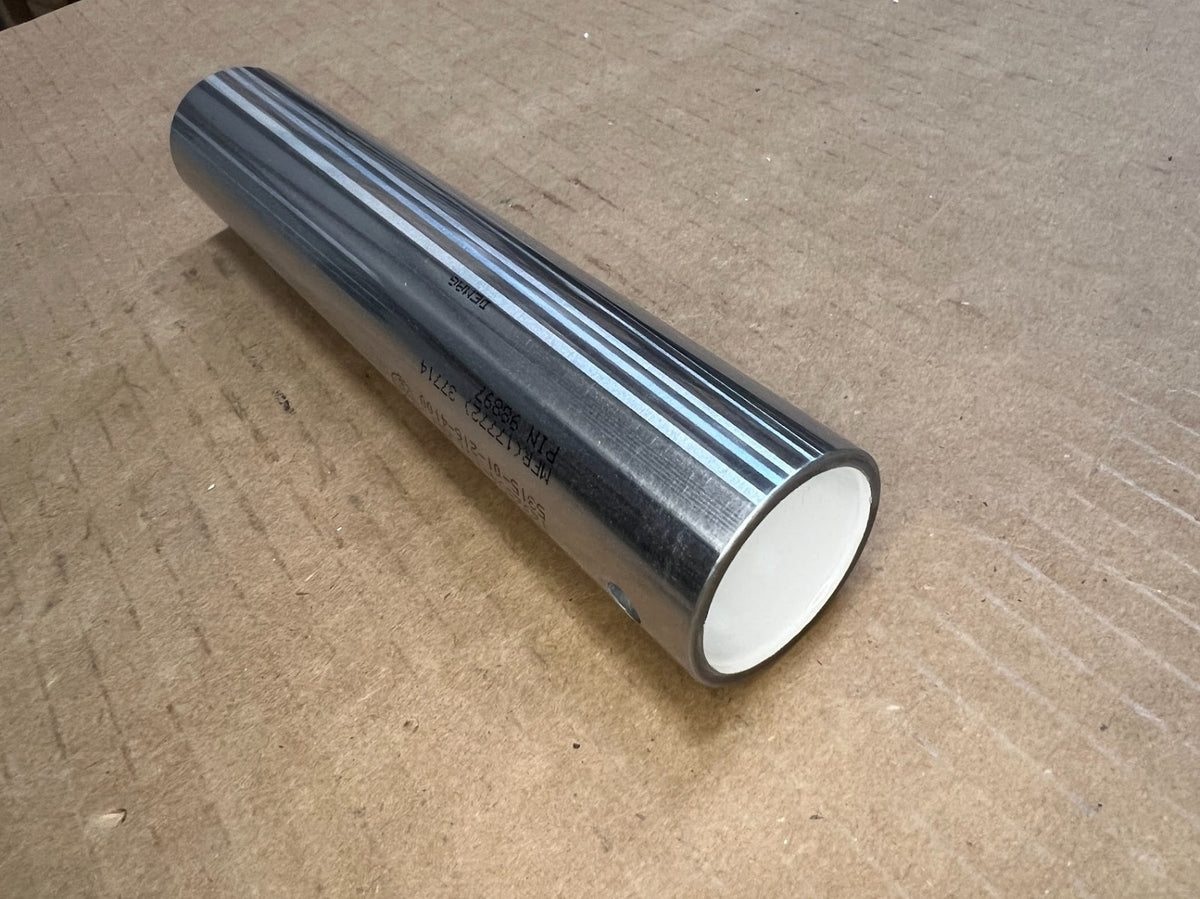

  • Hollow Pin 1292594-101 NSN 5315-01-216-4100 - photo 3

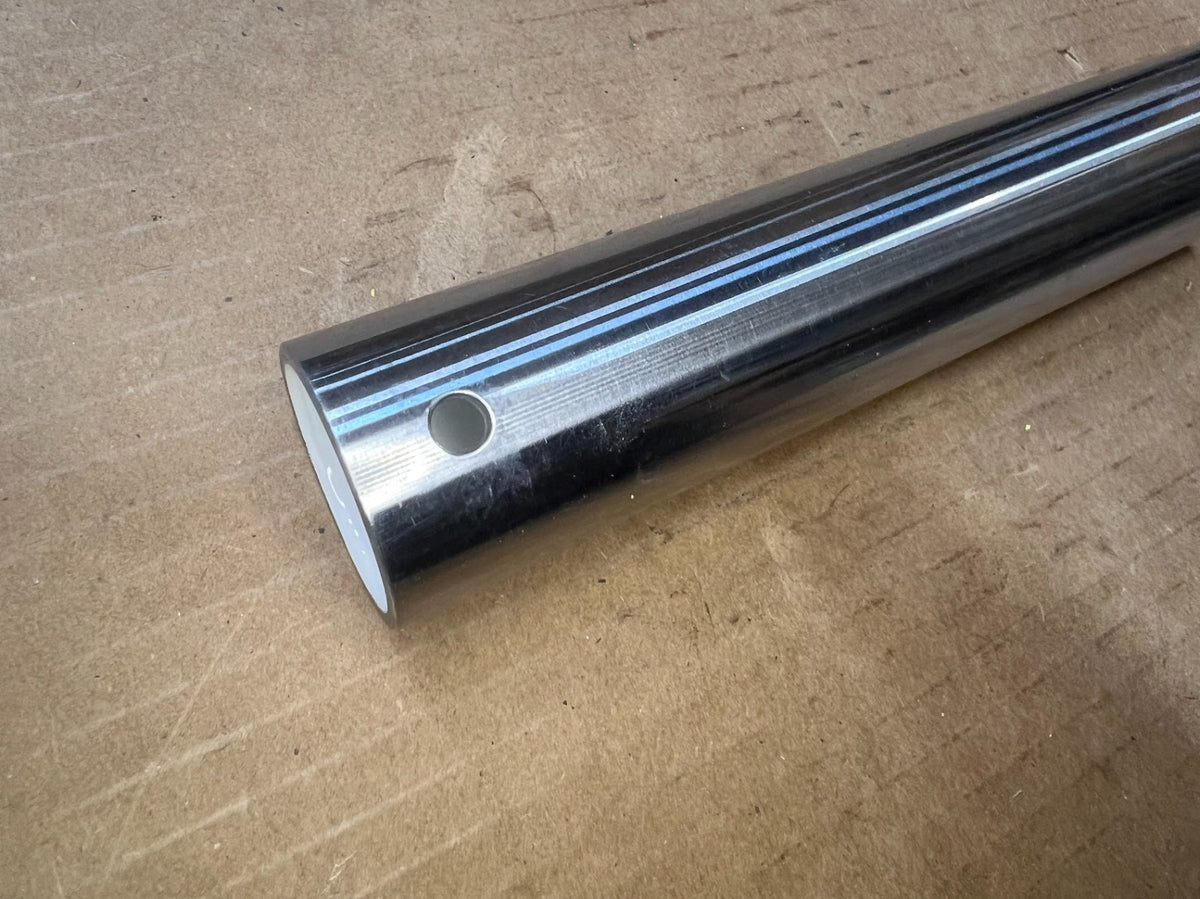

  • Hollow Pin 1292594-101 NSN 5315-01-216-4100 - photo 4

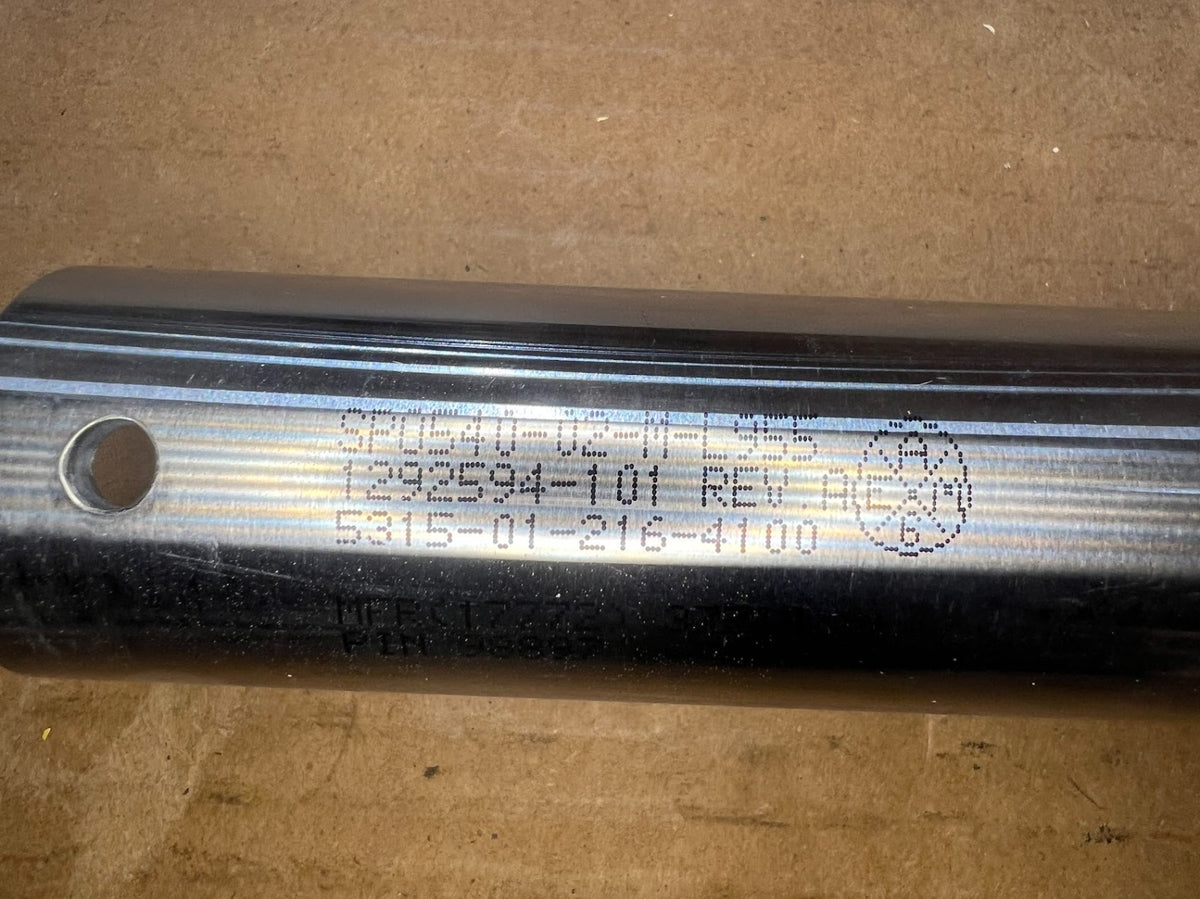

  • Hollow Pin 1292594-101 NSN 5315-01-216-4100 - photo 5

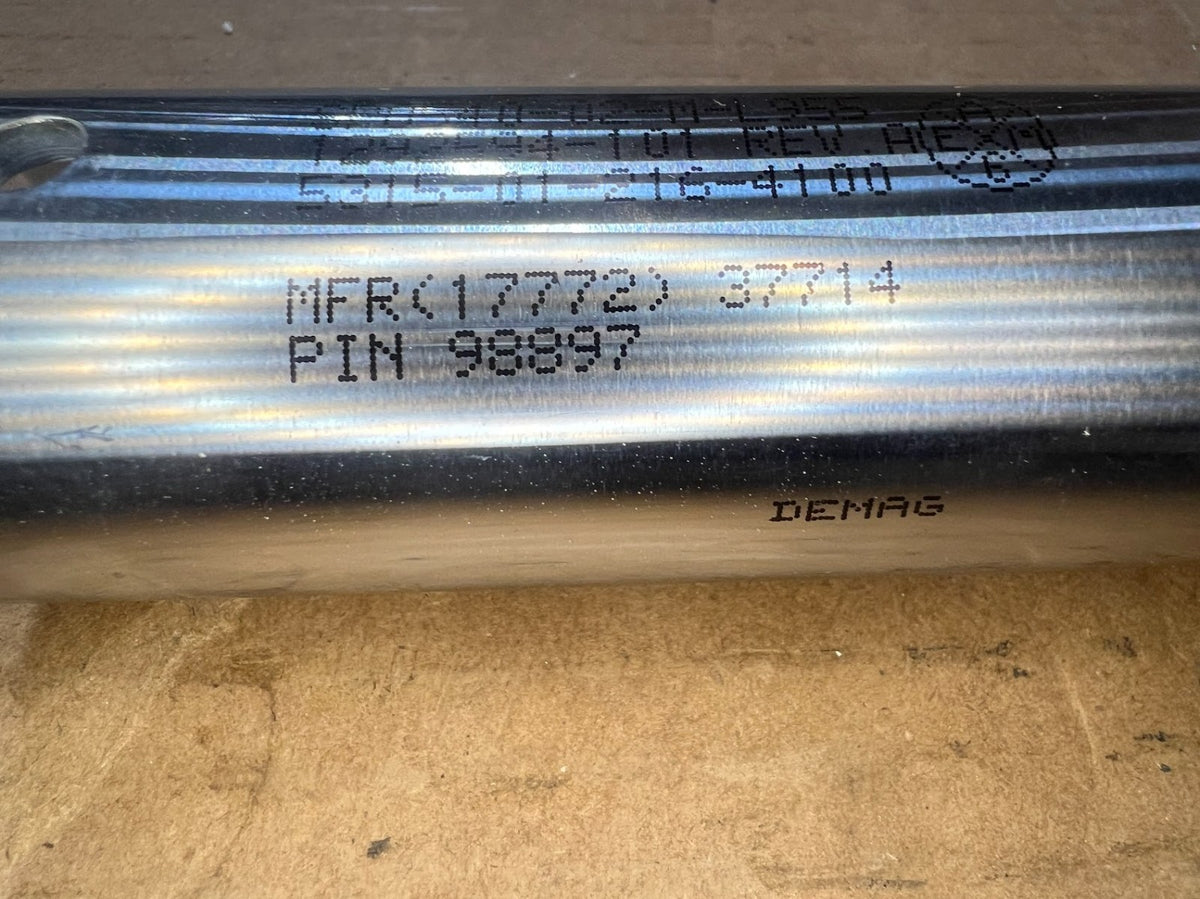

  • Hollow Pin 1292594-101 NSN 5315-01-216-4100 - photo 6

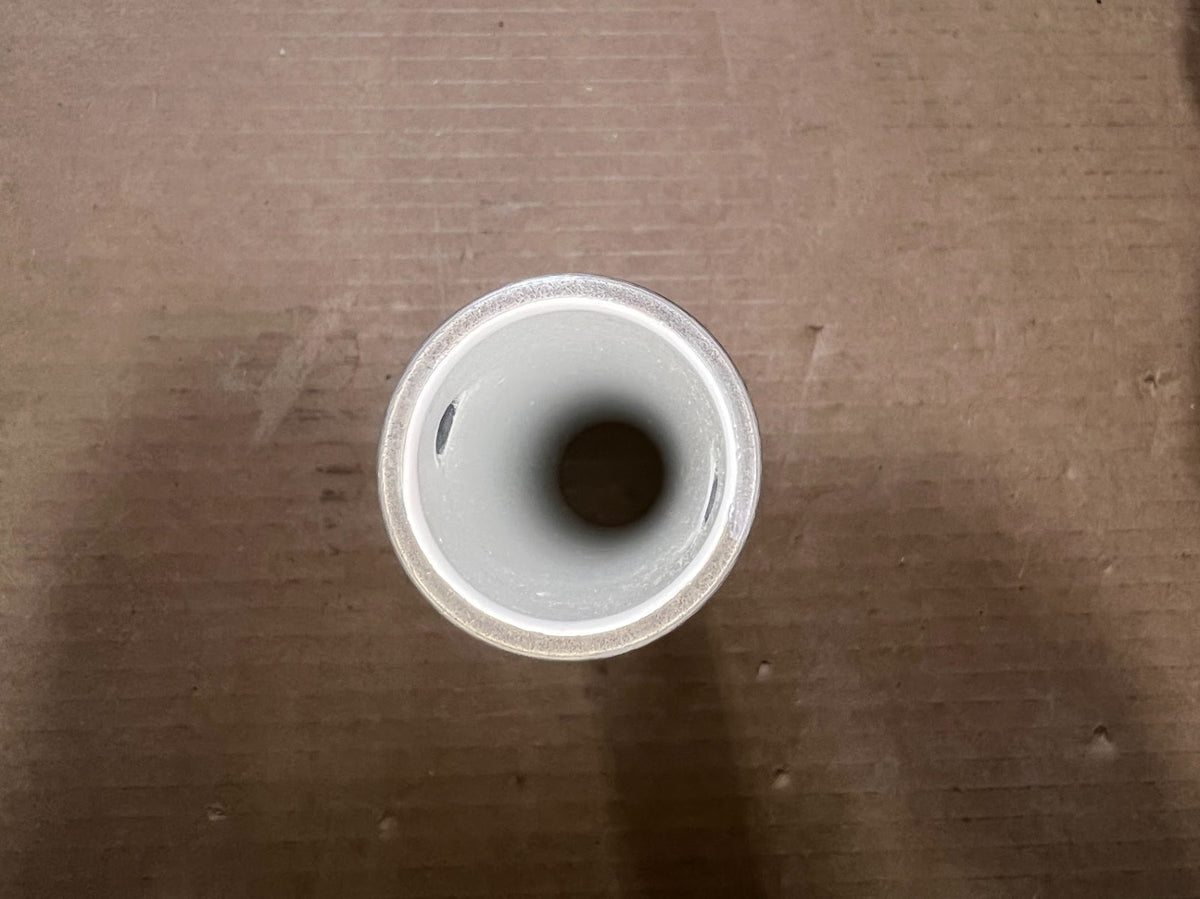

  • Hollow Pin 1292594-101 NSN 5315-01-216-4100 - photo 7
  • Hollow Pin 1292594-101 NSN 5315-01-216-4100 - photo 8
1 8

SECO Parts and Equipment

H-60 SEAHAWK HELICOPTER 1292594-101 HOLLOW PIN 5315012164100 5315-01-216-4100

H-60 SEAHAWK HELICOPTER 1292594-101 HOLLOW PIN 5315012164100 5315-01-216-4100

$324.33 USD
$324.33 USD
Sale Sold out
Shipping calculated at checkout.

NSN 5315-01-216-4100 Specs and cross-references ↗

LOCKHEED MARTIN 1292594-101 Hollow Pin (5315-01-216-4100)

Steel hollow pin for the H-60 Seahawk Helicopter, both ends countersunk 60 degrees.

Part Information

  • Manufacturer: Lockheed Martin Corp
  • Part Number: 1292594-101
  • NSN: 5315-01-216-4100
  • End Item: H-60 Seahawk Helicopter

Specifications

  • Material: Steel Comp 4130
  • Material Document: A-S 6371
  • Inside Diameter: 1.220–1.240 in
  • First Hole Diameter: 0.256–0.263 in
  • Distance, Centerline of Hole to End: 0.520 in (nominal)
  • Overall Length: 7.460 in (nominal)
  • Overall Diameter: 1.4976–1.4981 in
  • Second End Relationship with First End: Identical
  • Special Features: Both ends countersunk 60 degrees
