Heavy Duty J1493P05A Machine Bolt 5306016946364 5306-01-694-6364 USA Stock
Heavy Duty J1493P05A Machine Bolt 5306016946364 5306-01-694-6364 USA Stock
Regular price
$25.00 USD
Regular price
Sale price
$25.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5306-01-694-6364 Specs and cross-references for NSN 5306-01-694-6364 (opens in a new tab) ↗

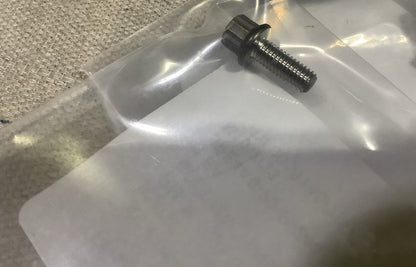

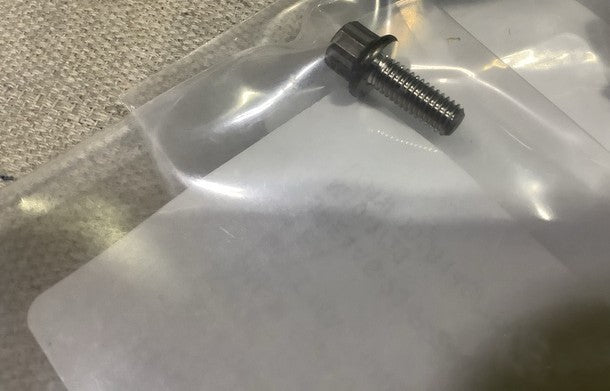

GENERAL ELECTRIC COMPANY J1493P05A Alloy 718 Double Hexagon Head Machine Bolt (5306-01-694-6364)
Nickel Alloy 718 double hexagon head machine bolt for the F110 GE 100 Engine.
Part Information
- Manufacturer: General Electric Company
- Part Number: J1493P05A
- NSN: 5306-01-694-6364
- End Item: F11O GE 100 Engine
Specifications
- Material: Nickel Alloy 718
- Thread Series: Unified National Joint Fine (UNJF)
- Thread Class: 3A
- Thread Direction: Right-Hand
- Thread Quantity Per Inch: 32
- Nominal Thread Diameter: 0.1900 in
- Thread Length: 0.393 in nominal
- Fastener Length: 0.428–0.448 in
- Head Height: 0.248–0.268 in
- Width Between Flats: 0.2500 in nominal
- Extended Washer Diameter: 0.365–0.385 in
