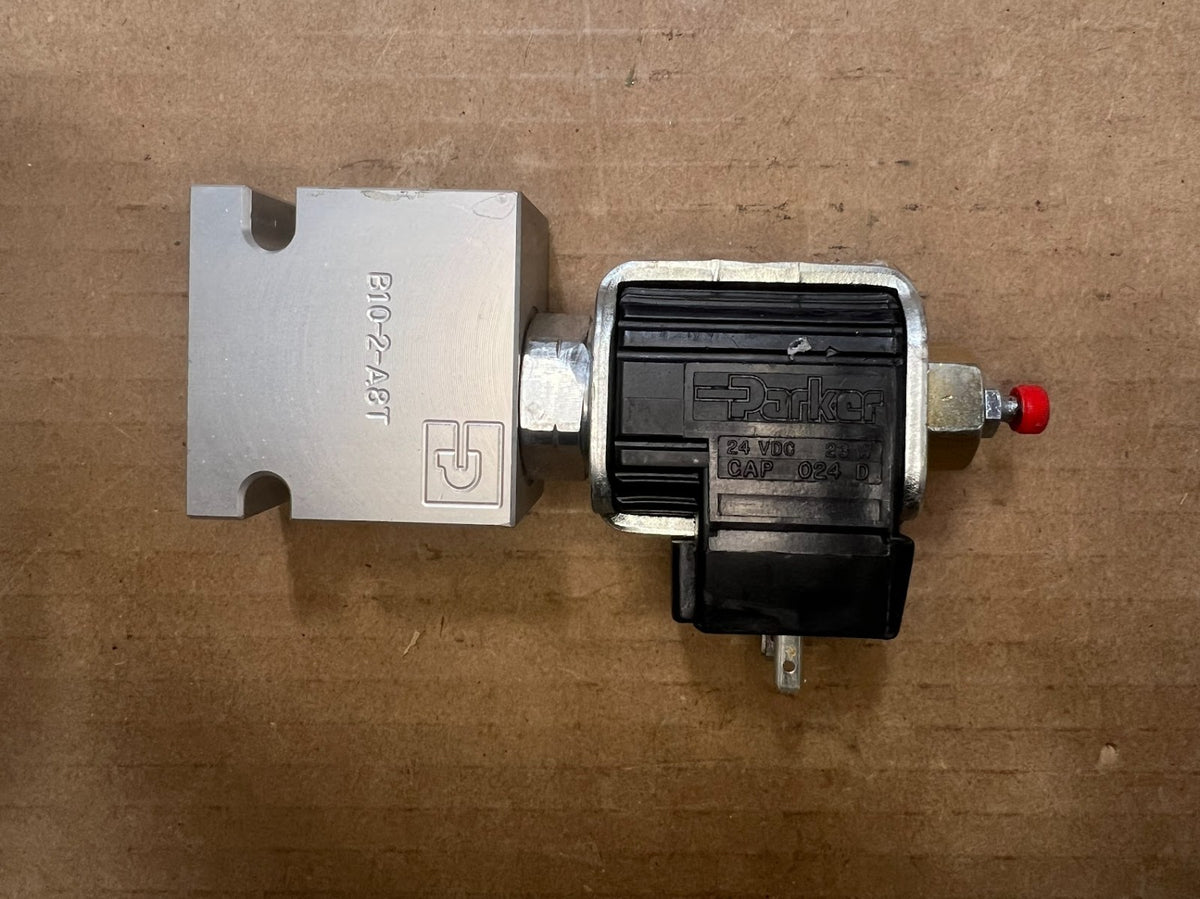

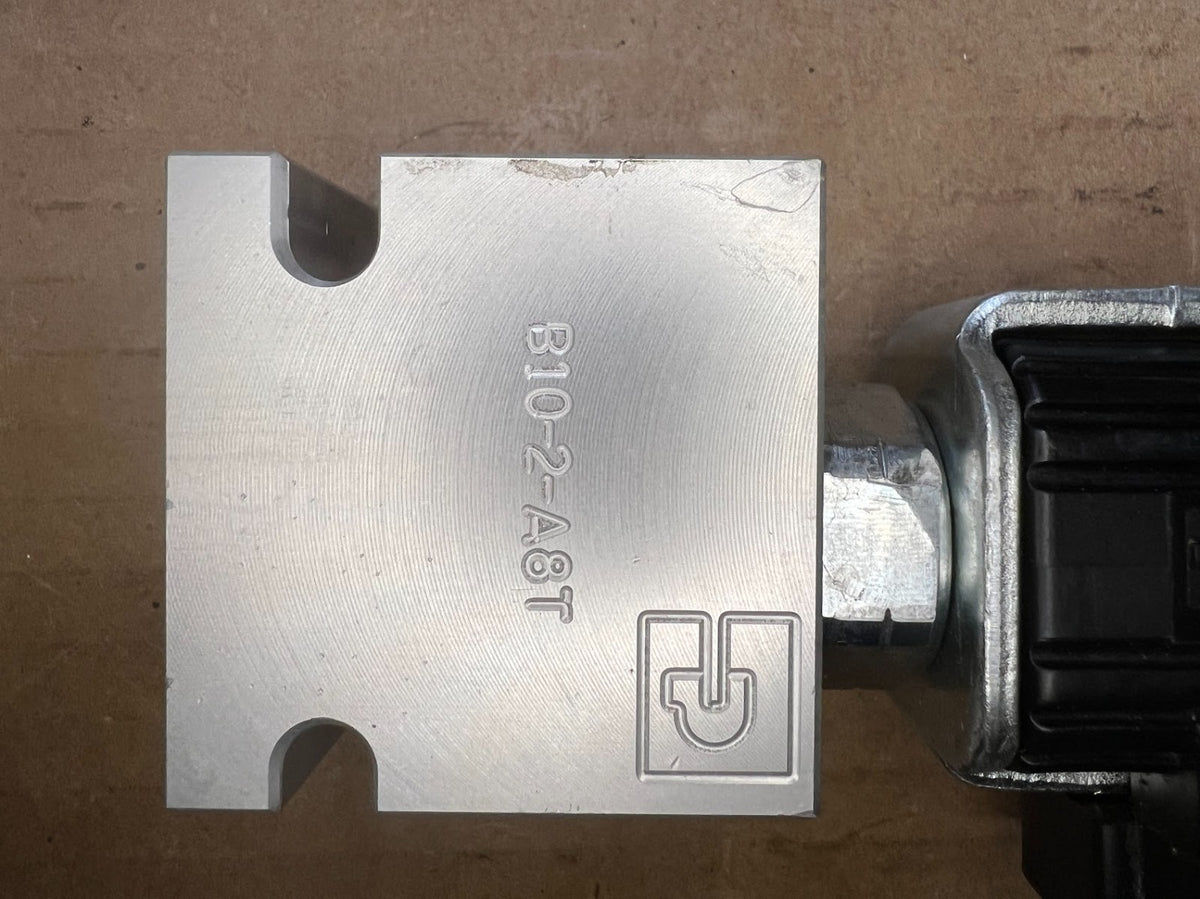

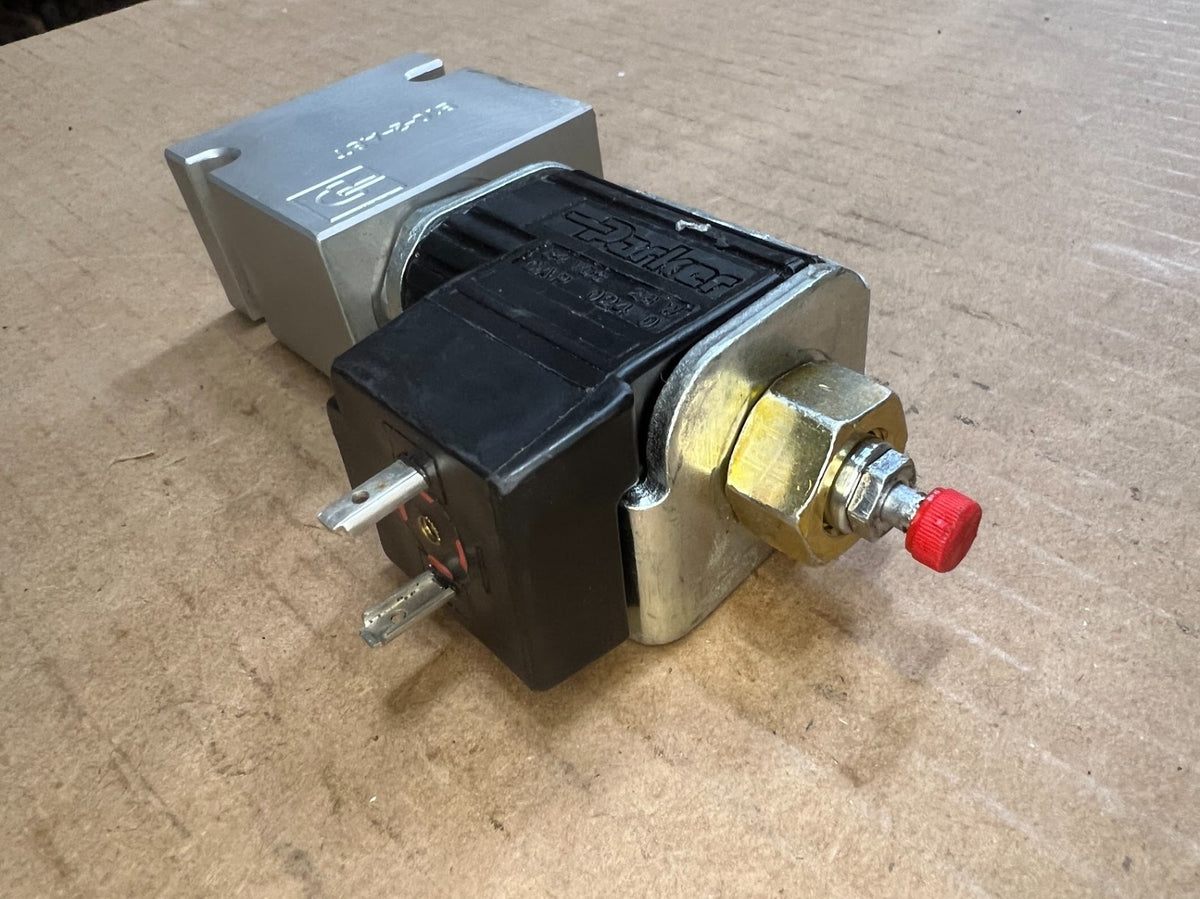

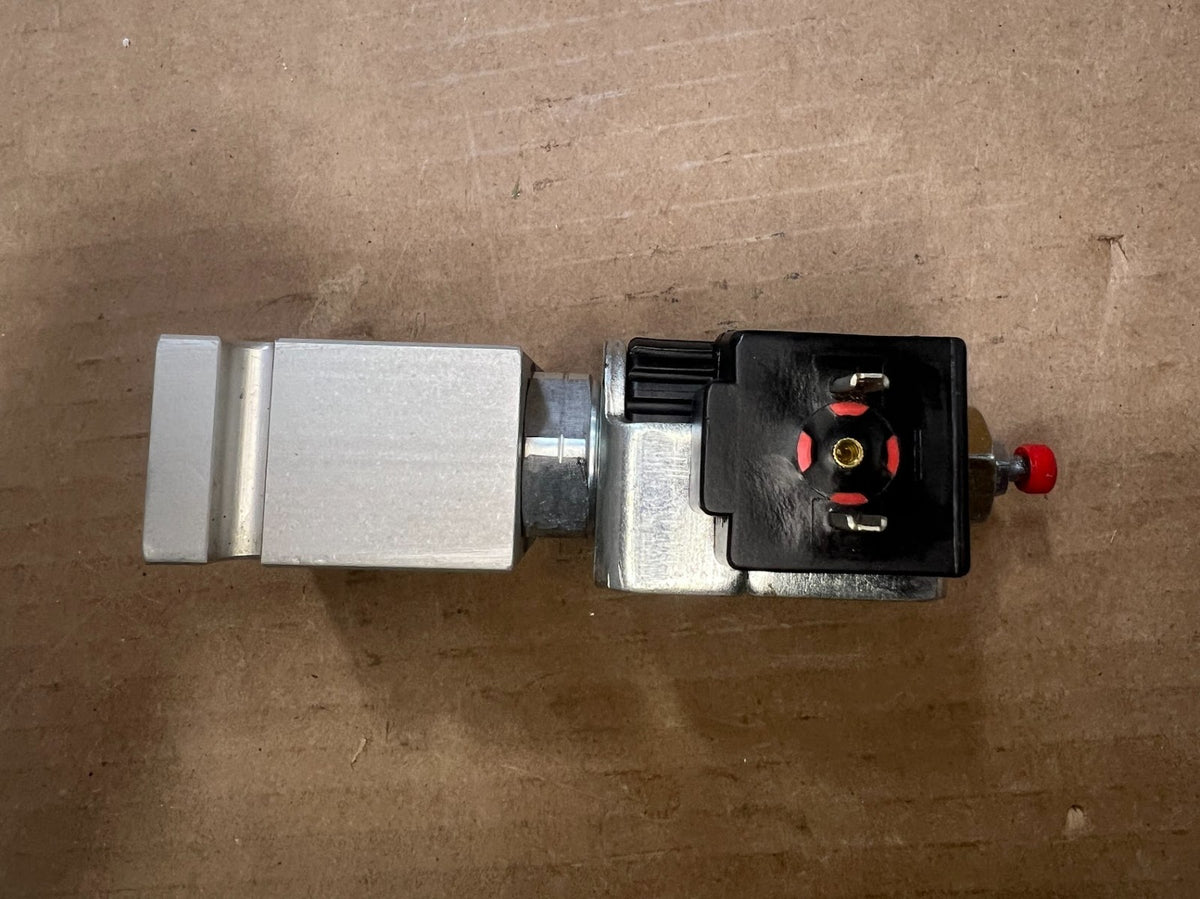

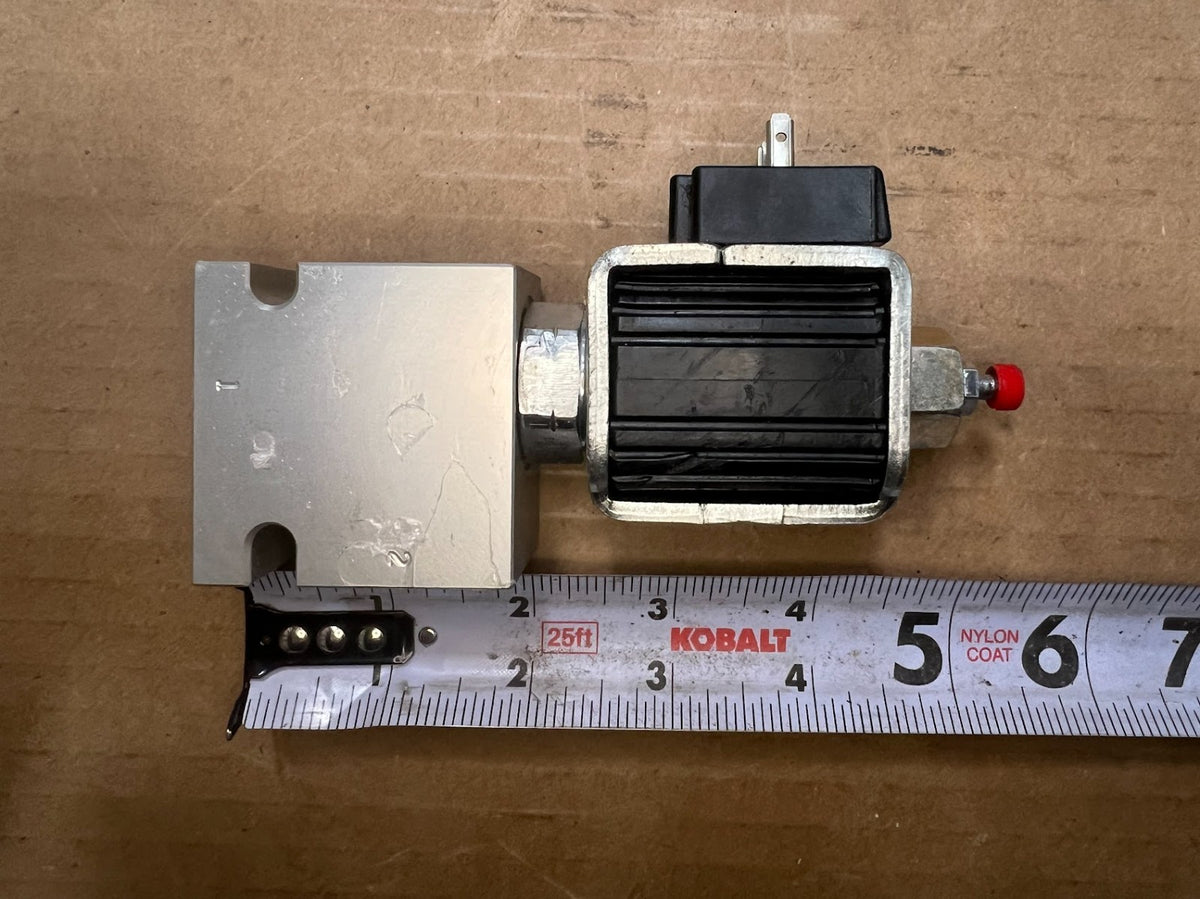

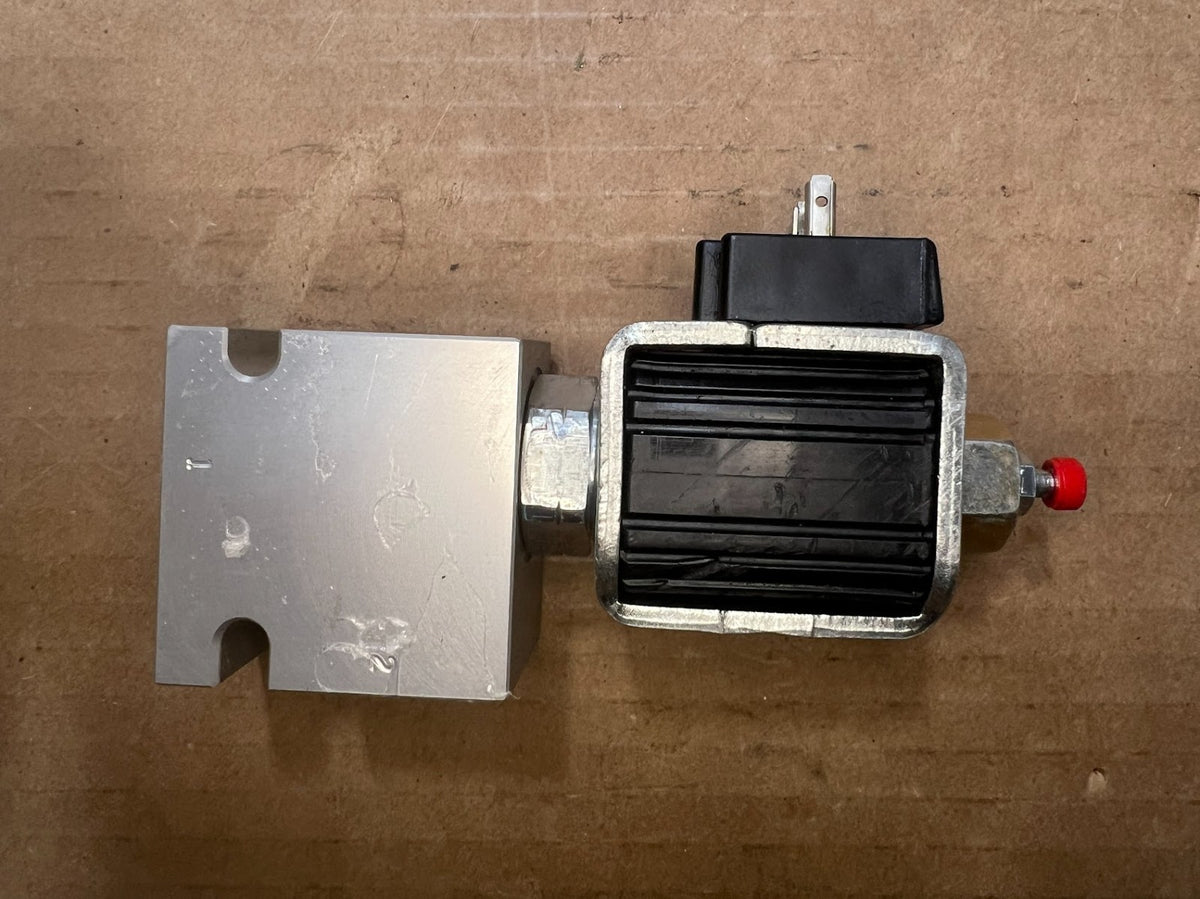

HEMTT PARKER-HANNIFIN B10-2-A8T 24VDC 23W RH SOLENOID VALVE 4810-01-203-5358 USA

PARKER-HANNIFIN 14C12S-12-F24-T8 Solenoid Valve (4810-01-203-5358)

Aluminum body solenoid valve, 24VDC, normally open, rated to 3000 PSI hydraulic oil, for the Heavy Expanded Mobility Tactical Trucks (HEMTT), all body types (ABT) M977, M978, M983, M984, M984A1, M985.

Part Information

• Manufacturer: Parker-Hannifin Corporation
• Part Number: 14C12S-12-F24-T8
• NSN: 4810-01-203-5358
• End Item: Heavy Expanded Mobility Tactical Trucks (HEMTT), all body types (ABT) M977, M978, M983, M984, M984A1, M985

Specifications

• Thread Class: 2B
• Thread Direction: All Ends, Right-Hand
• Flow Control Device: Disk
• Flow Control Device Normal Position: Open
• Current Rating: 0.800 Amps
• Valve Operation Method: Solenoid

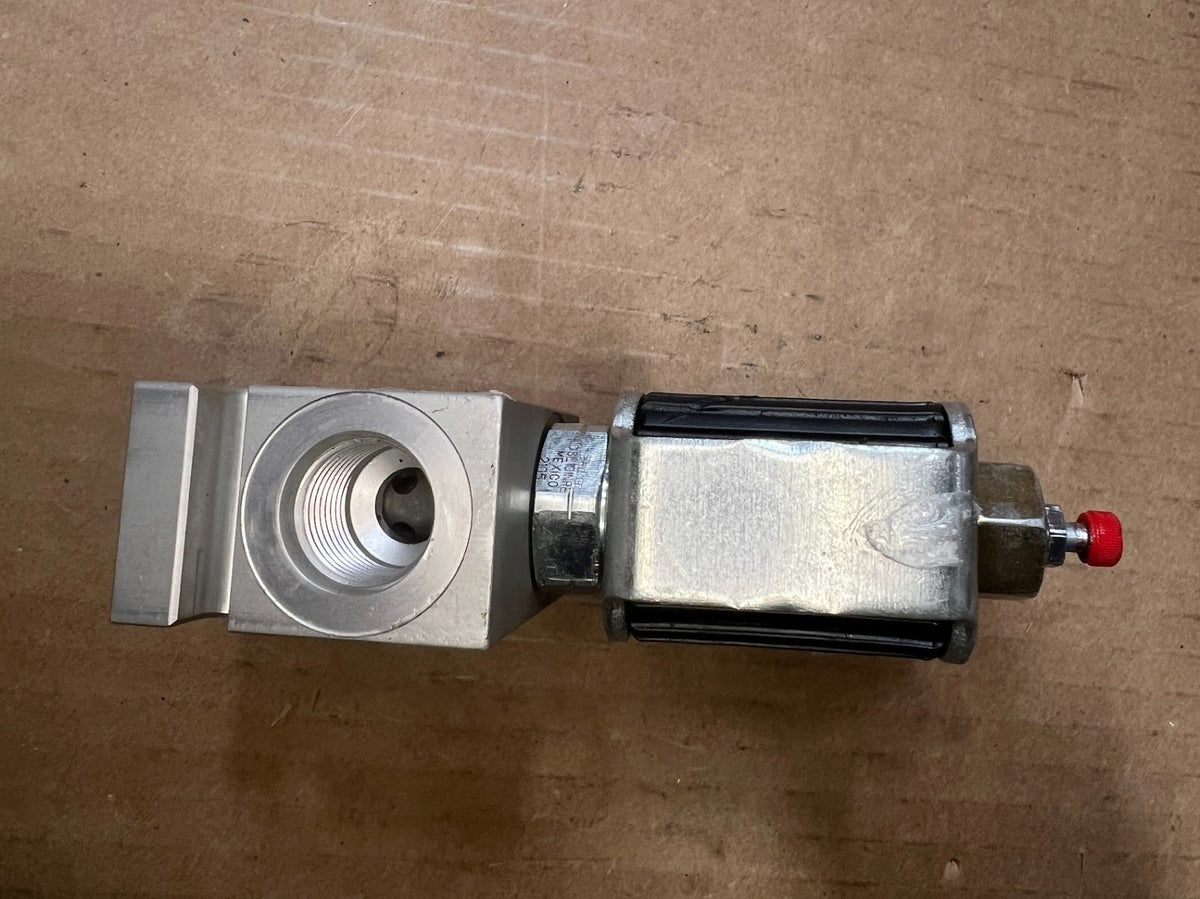

• Connection Type: All Ends, Threaded Internal Tube
• Mounting Position: Vertical
• Nominal Thread Size (First End): 0.750 in, UNF
• Operating Pressure: 3000 PSI Max

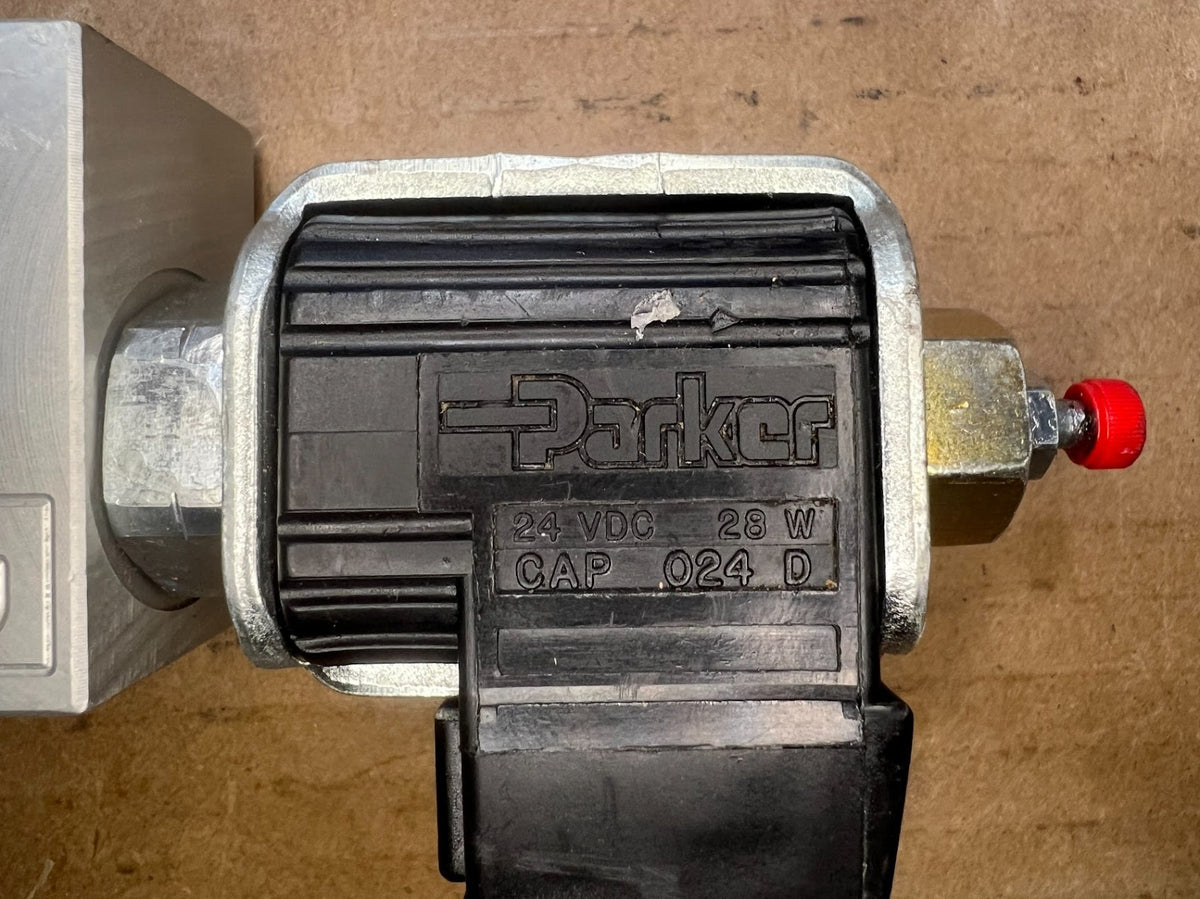

• Voltage: 24.0 VDC
• Nominal OD Tube (All Ends): 0.500 in
• Material: Body - Aluminum
• Media: Oil, Hydraulic
• Surface Treatment: Anodize
