HEMTT TACTICAL TRUCK G1482 FLUID FILTER ELEMENT HC9800FKN8HY334 4330-01-192-7903

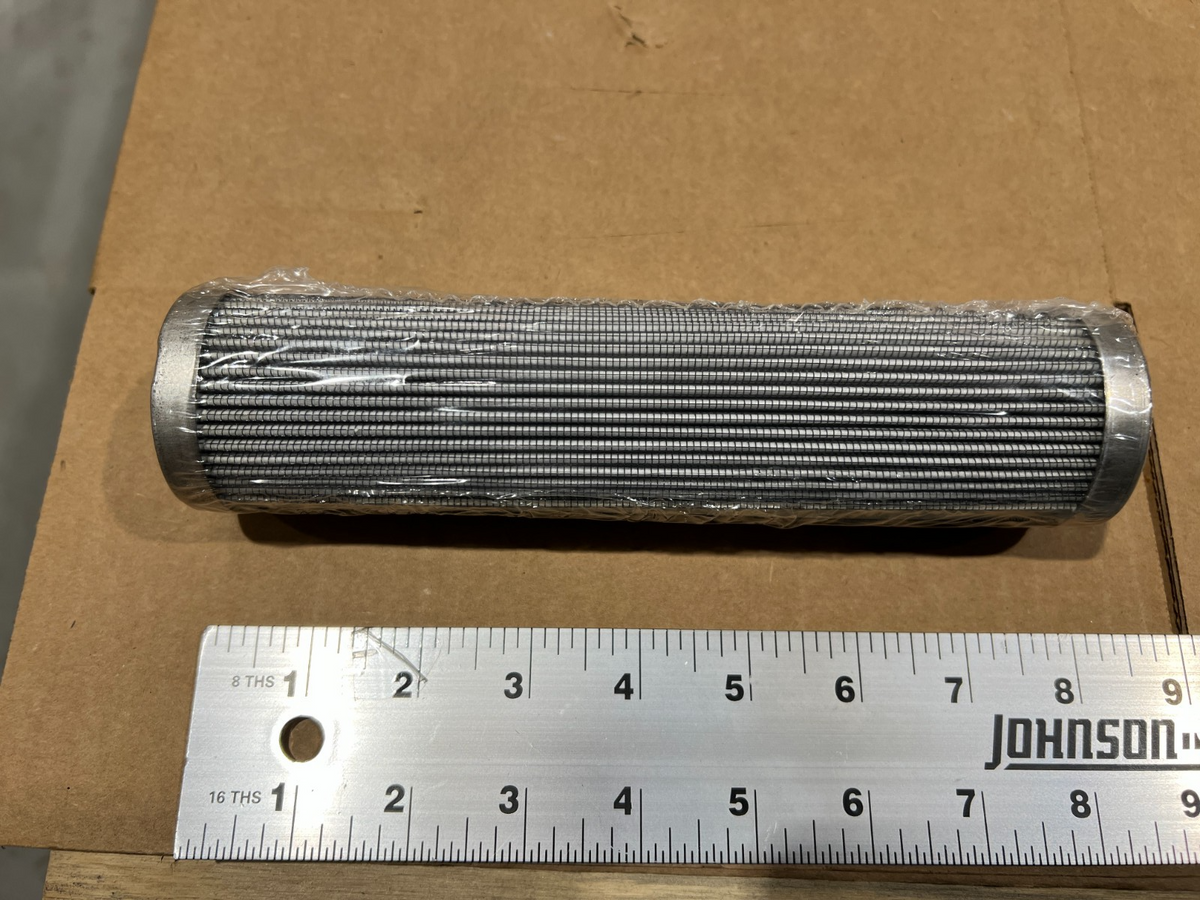

PALL CORP HC9800FUN8H Fluid Filter Element (4330-01-192-7903)

Nonreusable pleated fluid filter element, full flow, with CRES end caps, for the HEMTT Tactical Truck G1482.

Part Information

• Manufacturer: Pall Corp
• Part Number: HC9800FUN8H

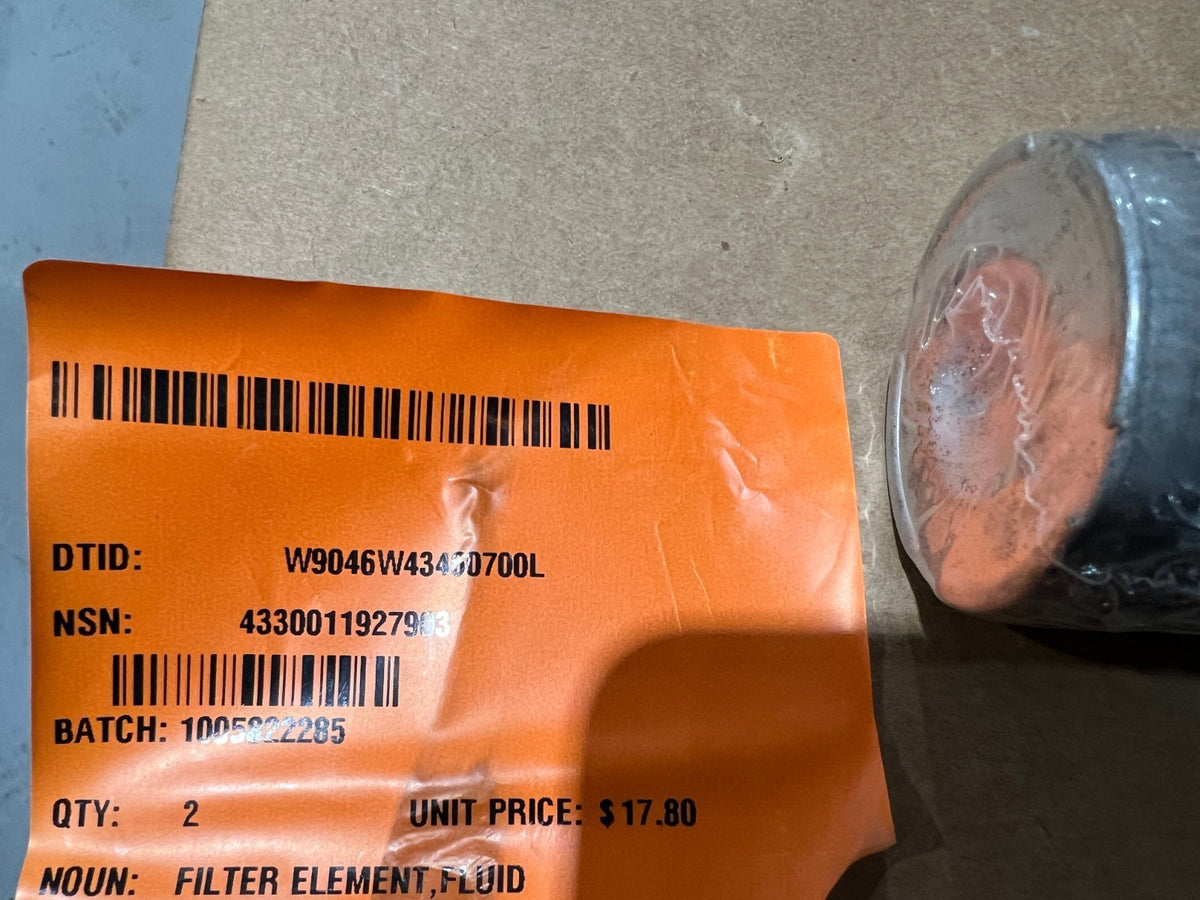

• NSN: 4330-01-192-7903
• End Item: HEMTT Tactical Truck G1482
• CAGE Code: (PALL CORP)

Specifications

• Body Inside Diameter: 1.000 in nominal
• Body Overall Length: 8.556 in nominal
• Filtration Rating: 6.0 microns absolute
• Flow Direction: Outside in
• Differential Pressure: 150.0 PSI
• Temperature Rating: -45°F to 225°F
• Filtering Media: Single media, pleated
• Filtering System: Full flow
• Material, Filtering Medium: Synthetic fiber and synthetic resin
• Material, Seal: Buna N rubber
• Media Designed For: Fuel/oil, hydrocarbon
• Special Features: With CRES end caps
