HEMTT Tactical Truck R5104501 Piston Connecting Rod 05104501 2815-01-062-7272

MILITARY VEHICLES OPN GENERAL MOTORS 5104501 Piston Connecting Rod (2815-01-062-7272)

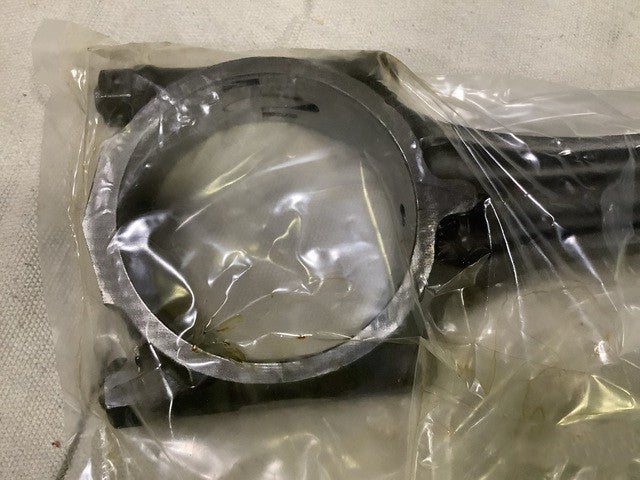

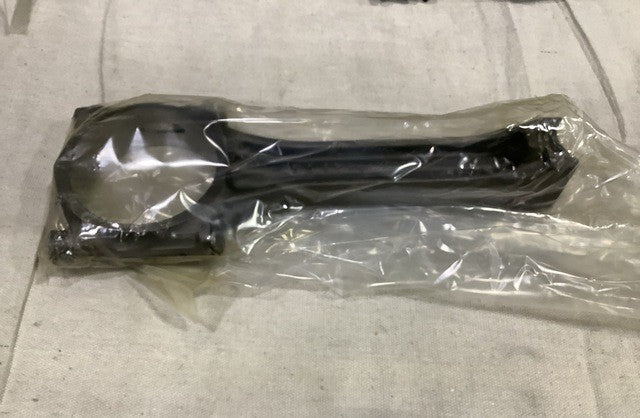

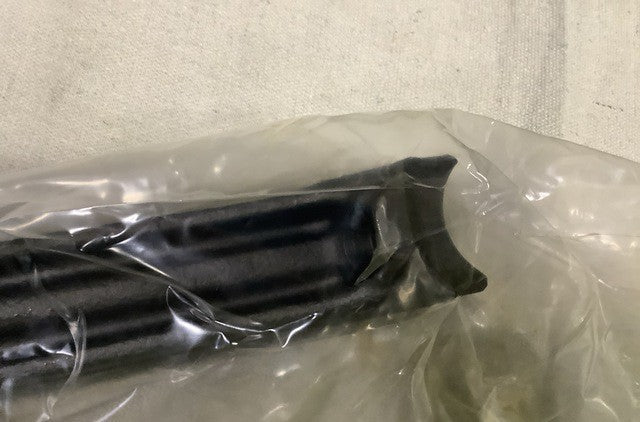

Cast and machined steel piston connecting rod for the HEMTT Tactical Truck.

Part Information

• Manufacturer: Military Vehicles OPN General Motors
• Part Number: 5104501
• NSN: 2815-01-062-7272
• End Item: HEMTT Tactical Truck

Specifications

• Fabrication Method: Cast and Machined
• Material: Steel
• Piston Connecting End Bearing: Not Included
• Piston Connecting End Lubrication Drill Feature: Included
• Shaft Connecting End Bearing: Not Included
• Shaft Connecting End Hole Inside Diameter: 3.258 in nominal
• Shaft Connecting End Edge Radius: 1.841 in nominal
• Shaft Connecting End Width: 4.225 in nominal
• Shaft Connecting End Thickness: 1.320 in nominal
• Shaft Connecting End Lubrication Drill Feature: Included
• Center to Center Effective Length: 9.875 in nominal
• Body Width at Piston Connecting End: 1.512 in nominal
• Body Width at Shaft Connecting End: 1.535 in nominal
• Body Thickness at Piston Connecting End: 0.890 in nominal
• Body Thickness at Shaft Connecting End: 0.900 in nominal
