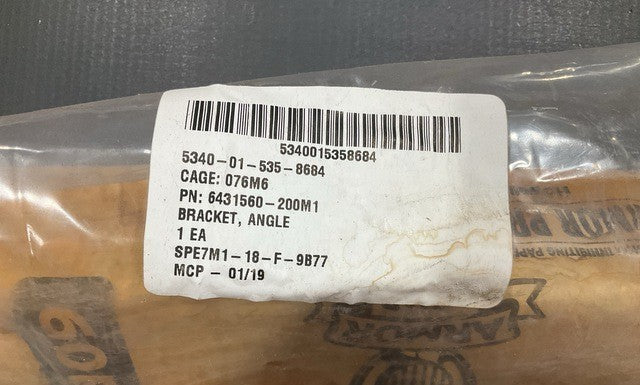

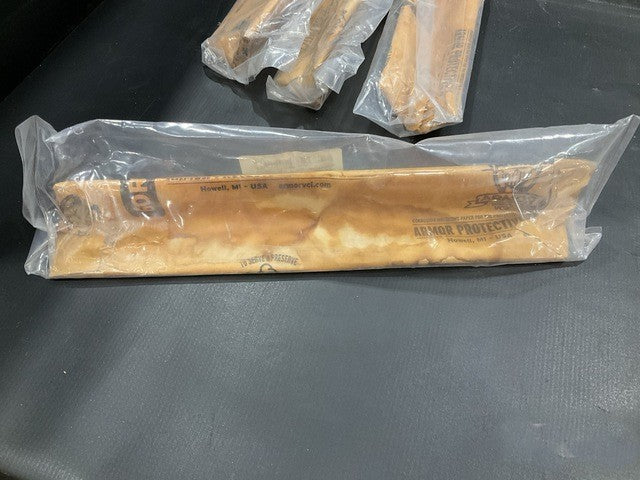

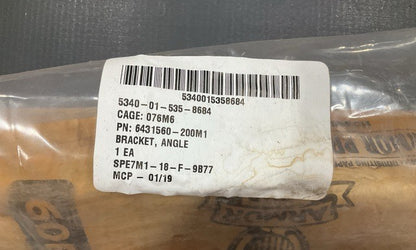

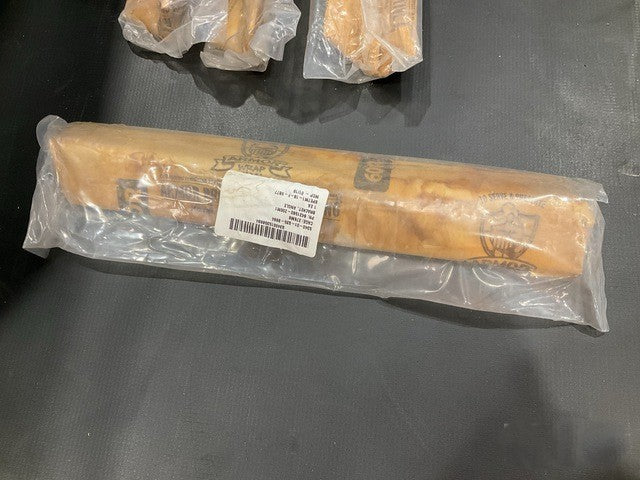

HMMWV 1 1/4 TON BAE SYSTEMS 6431560-200M1 LEFT ANGLE BRACKET 5340-01-535-8684

AMZ ALABAMA INC 6431560-200M1 Left Angle Bracket (5340-01-535-8684)

Steel left angle bracket, corner brace configuration, for the HMMWV 1 1/4 Ton.

Part Information

• Manufacturer: AMZ Alabama Inc.
• Part Number: 6431560-200M1
• NSN: 5340-01-535-8684
• End Item: HMMWV 1 1/4 Ton

Specifications

• First Leg Length: 1.756 in nominal
• Second Leg Length: 1.756 in nominal
• First Leg Thickness: 0.134 in nominal
• Second Leg Thickness: 0.134 in nominal
• First Leg Hole Diameter: 0.531 in nominal
• First Leg Angle: 0.1 radians nominal
• Mounting Hole Type: Plain
• Second Leg Relationship to First Leg: Identical
• Material: AST-A1008 CS Type B 10 GA (0.135) Thk
• Surface Treatment: MIL-DTL-53072
• Special Features: Hue Tan 686A Desert Application
