HMMWV 1 1/4-TON TRUCK 12540102 MOUNTING BRACKET 6431612-200M1 5340-01-536-0543
HMMWV 1 1/4-TON TRUCK 12540102 MOUNTING BRACKET 6431612-200M1 5340-01-536-0543
Regular price
$45.95 USD
Regular price
Sale price
$45.95 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5340-01-536-0543 Specs and cross-references for NSN 5340-01-536-0543 (opens in a new tab) ↗
12540102 Mounting Angle-Large Bracket (5340-01-536-0543)

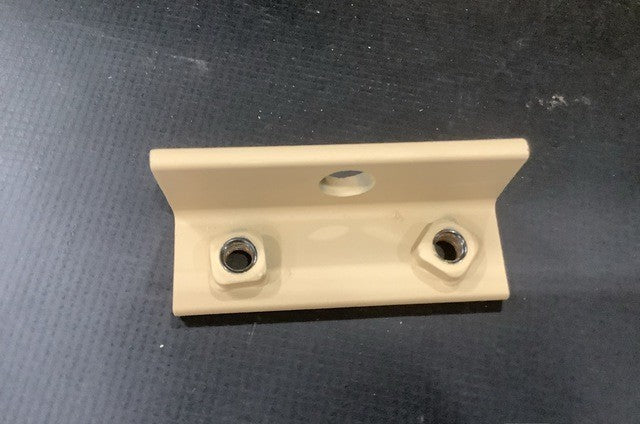

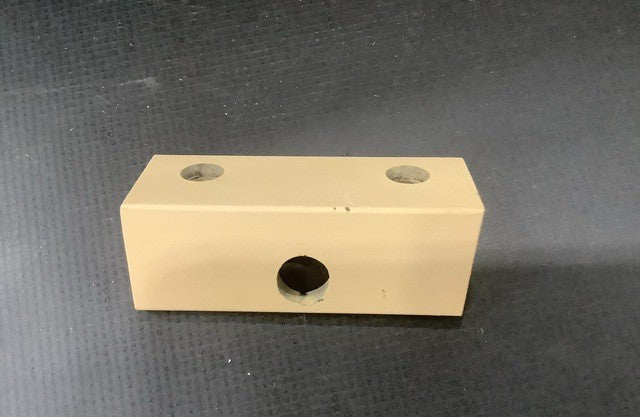

Steel mounting angle-large bracket with two weld nuts, for the HMMWV 1 1/4-TON TRUCK.
Part Information
- Design Control Activity: U S Army Tank Automotive Command
- Part Number: 12540102
- NSN: 5340-01-536-0543
- End Item: HMMWV 1 1/4-TON TRUCK
Specifications
- Overall Length: 4.000 in
- Overall Height: 1.500 in
- Overall Width: 1.500 in
- Mounting Hole Diameter: 0.531 in
- Mounting Hole Quantity: 2
- Mounting Hole Type: Plain
- Features Provided: Nut and Notched Slide
- Special Features: Includes two (2) nut, sq. weld, UNC .375-16
- Material: Steel (ASTM A36)
- Surface Treatment: Primer and Enamel (MIL-DTL-53072)
