HMMWV ARROWLITE SAE-A217 CLEARANCE INDICATING REFLECTOR 3330DAM 9905-00-202-3639
HMMWV ARROWLITE SAE-A217 CLEARANCE INDICATING REFLECTOR 3330DAM 9905-00-202-3639
Regular price
$149.08 USD
Regular price
Sale price
$149.08 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 9905-00-202-3639 Specs and cross-references for NSN 9905-00-202-3639 (opens in a new tab) ↗
GROTE INDUSTRIES 0-110R Clearance Indicating Reflector (9905-00-202-3639)

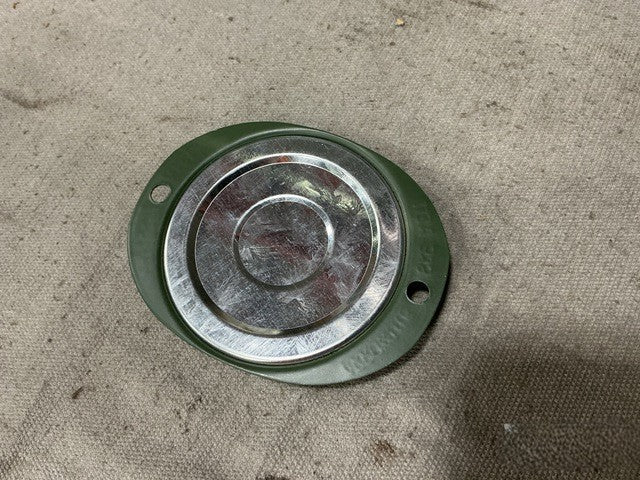

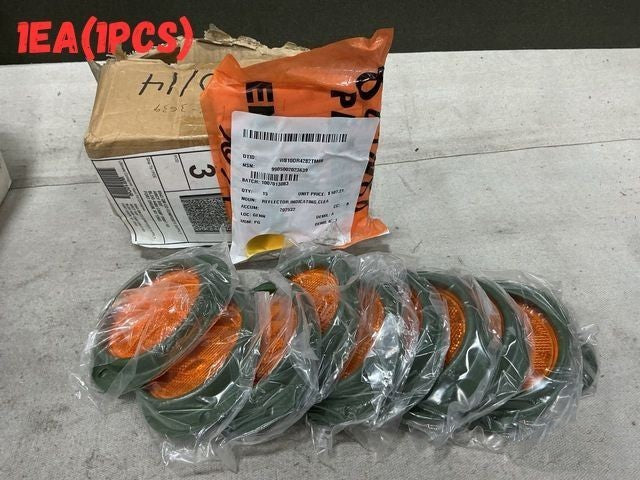

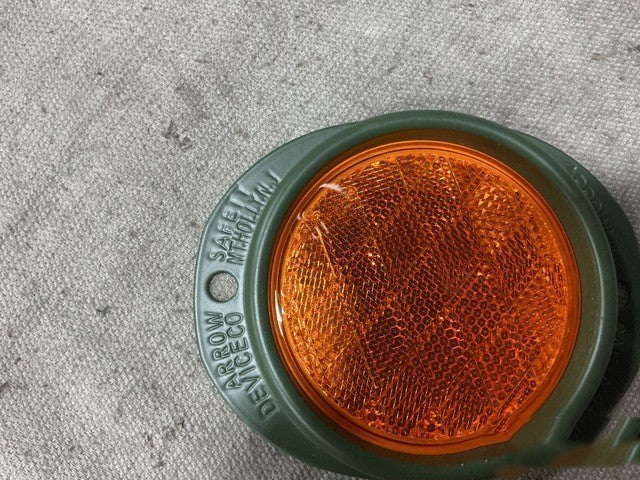

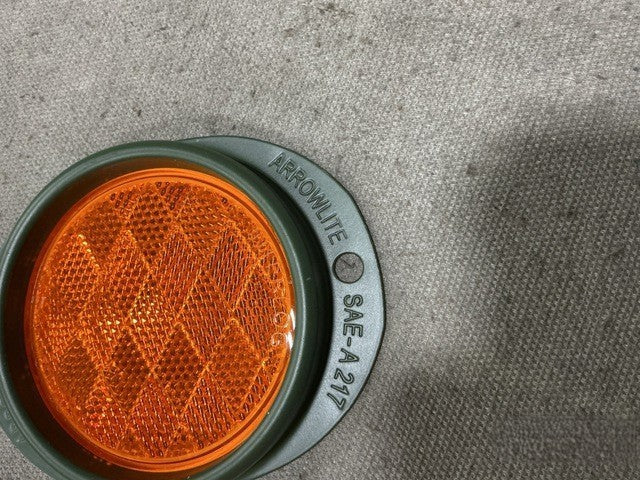

Amber round reflex lens clearance indicating reflector, flush mount, plastic lens, for HMMWV.
Part Information
- Manufacturer: Grote Industries Inc
- Part Number: 0-110R
- NSN: 9905-00-202-3639
- End Item: HMMWV
Specifications
- Mounting Type: Flush
- Overall Length: 4.500 in nominal
- Overall Width: 3.625 in nominal
- Overall Thickness: 0.625 in nominal
- Mounting Hole Diameter: 0.281 in nominal
- Mounting Hole Quantity: 2
- Hole Spacing: Spaced 180 deg apart on 3.937 in bolt circle of holes
- Lens Color: Amber
- Lens Type: Reflex
- Lens Shape: Round
- Lens Effective Diameter: 3.015 in
- Material: Lens, Plastic
