HMMWV M1102 CARGO TRAILER 12479774 RING DRAWBAR COUPLER 2103014 2540-01-495-8288

12479774 Ring Drawbar Coupler (2540-01-495-8288)

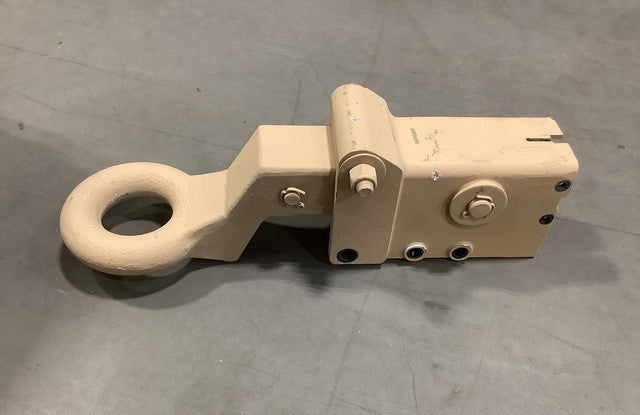

Steel ring drawbar coupler with offset ring, for the M1102 Cargo Trailer.

Part Information

• Design Control Activity: Army, United States Department Of
• Part Number: 12479774
• NSN: 2540-01-495-8288
• End Item: M1102 Cargo Trailer

Specifications

• Ring Inside Diameter: 3.000 in nominal
• Ring Outside Diameter: 6.300 in nominal
• Overall Length: 18.900 in nominal
• Shank Hole: 0.625 in diameter, 9.250 in from shank end to hole centerline
• Shank End Thread Provision: Unthreaded
• Furnished Items: Shank end keyway and painted

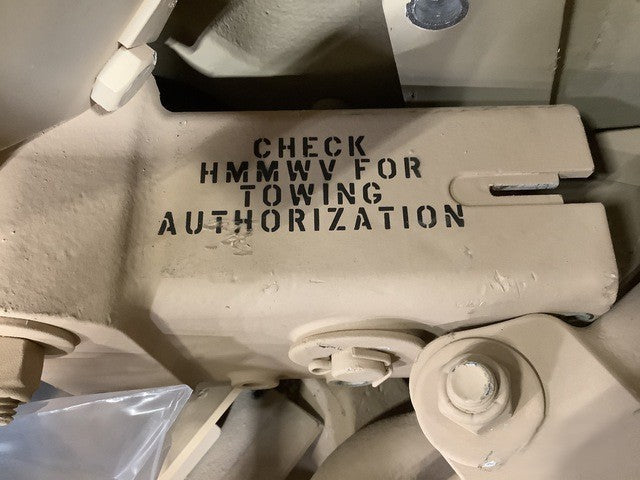

• Special Features: Offset ring; slots on sides and open-ended slot on top
• Material: Steel
• Finish: IAW 12369003, except color Black No. 37030
• Inspection: Magnetic particle inspection per MIL-STD-1907
• Color: Black, 37030

Technical References

• MIL-STD-1907
• 12369003
