HMMWV M1113 4X4 TRUCK EX4855-2 FRONT RH AUTOMOTIVE AXLE SHAFT 2520-01-474-3901

GKN Driveline North America EX4855-2 Front RH Automotive Axle Shaft (2520-01-474-3901)

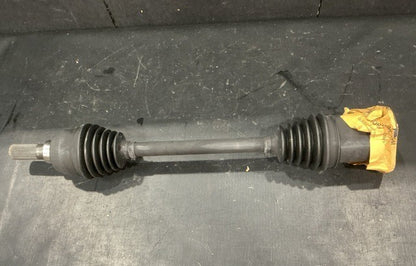

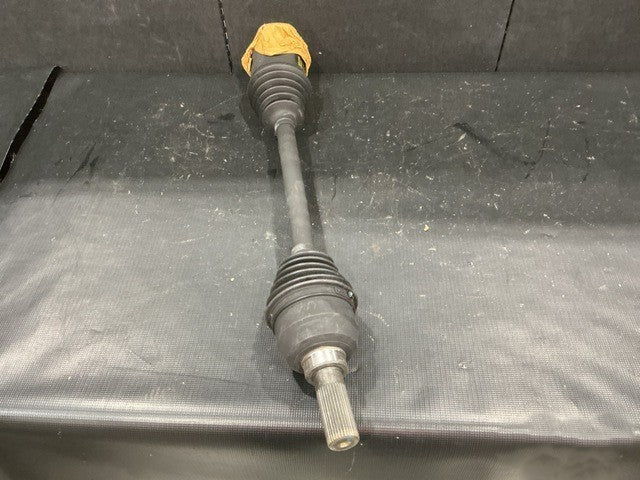

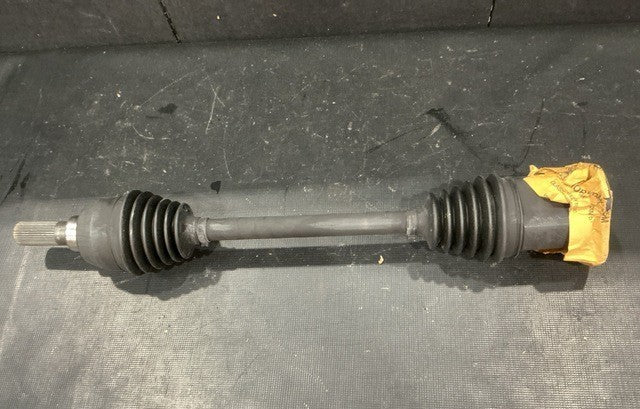

Flanged automotive axle shaft with splined second end, right-hand only, for the HMMWV M1113.

Part Information

• Manufacturer: GKN Driveline North America, Inc.
• Part Number: EX4855-2
• NSN: 2520-01-474-3901
• End Item: HMMWV M1113

Specifications

• First End Type: Flanged
• Second End Type: Splined
• Overall Length: 29.770 - 30.240 in
• Flange Outside Diameter: 2.948 - 2.952 in
• Flange Overall Thickness: 0.303 - 0.355 in
• Mounting Facility: 6 Unthreaded Holes
• Second End Spline: 32 Teeth, 45° Pressure Angle, Involute
• Special Features: Item for right hand only; surface hardness Rockwell C 58-63, core hardness Rockwell C 35 max; boot clamp material stainless steel Type 304 IAW ASTM A167
