US Army

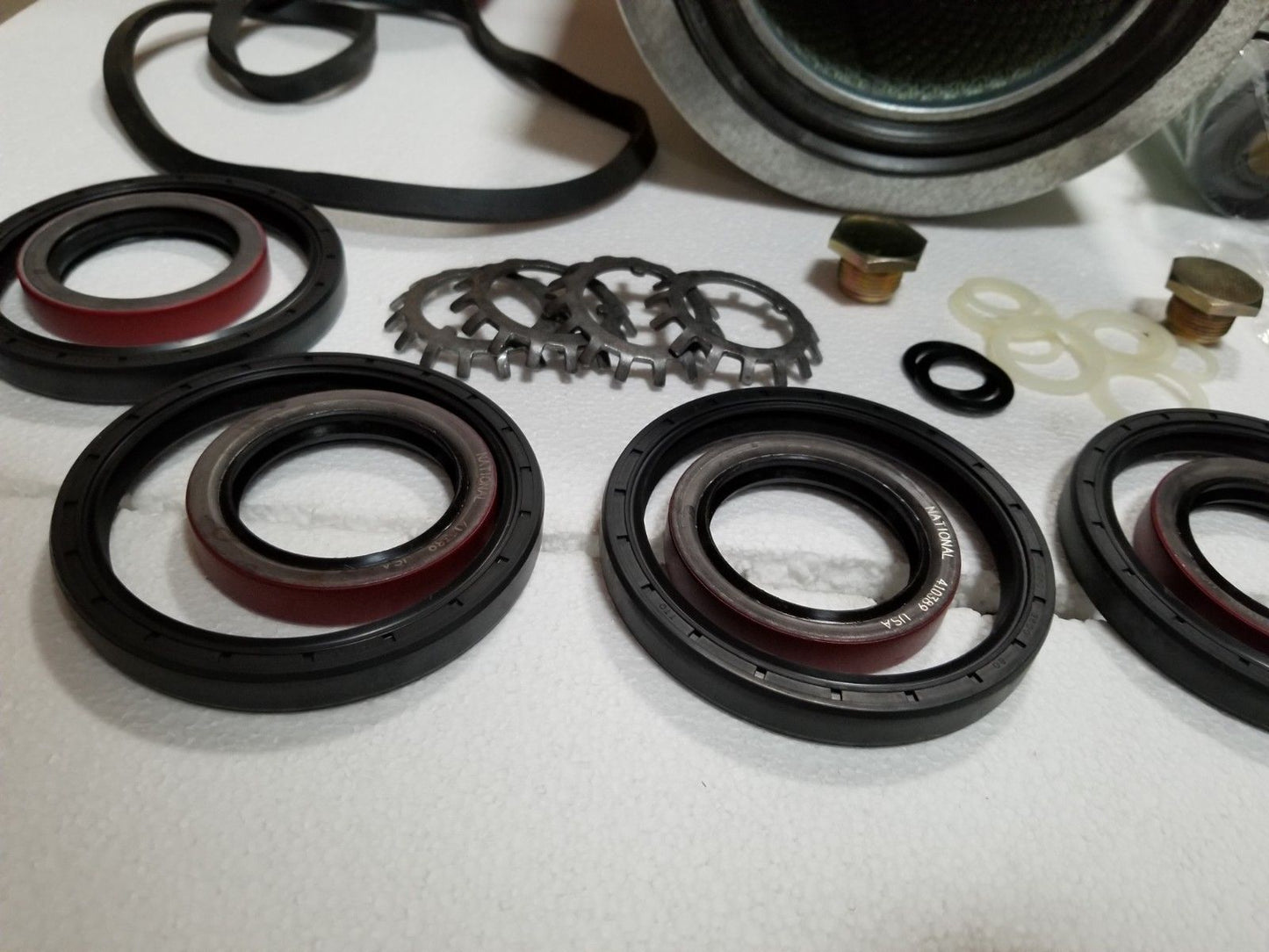

HMMWV M998 Humvee Fuel Filter, Geared Hub, Oil Filter, Maintenance Kit

HMMWV M998 Humvee Fuel Filter, Geared Hub, Oil Filter, Maintenance Kit

Regular price $290.00 USD
Regular price Sale price $290.00 USD
Sale Sold out
Shipping calculated at checkout.
New HMMWV Modification Reset Kit
THIS IS THE MILITARY MAINTENANCE KIT USED TO PERFORM RESET MAINTENANCE ON THE HMMWV
Recommended  to use this kit for every 6,000 miles driven or when purchasing a high mileage HMMWV.

 FILTER, FLUID PRESSURE KIT
                                    (consist of the following items):
            5305-00-061-4650   LOCKNUT ……………………...…1;
            5310-01-252-2999   SELF-LOCKING NUT ……….…..4;
            5310-00-449-2381   LOCKNUT ……………………..….4;
            5315-00-616-5526   WOODRUFF KEY ……………….1;
            5315-00-012-0123   COTTER PIN ………………….….1;
            5310-00-061-4651   LOCKNUT ……………………..….1;
            5310-00-935-9021   LOCKNUT ……………………..….1;
            5310-00-488-3889   LOCKNUT ……………………..….4;
            5310-00-763-8919   LOCKNUT ……………………..….2;
            5310-00-407-9566   LOCKWASHER ……….………….2;
            5310-01-213-4185   WASHER KEY ……………….…...4;
            5310-01-382-5031   SELF-LOCKING NUT …….……...4;
            5310-01-174-8607   WASHER KEY ……………….…...4;
            2940-01-188-3776   FILTER ELEMENT ………….……1;
            5330-01-452-2474   GASKET ……………………….…..1;
            2910-01-210-5872   FLUID FILTER ………………….....1;
            5310-00-011-5093   LOCKWASHER …………………...4;
            5305-00-543-2419   HEX CAP SCREW ………………..4;
            5306-01-185-7048   BOLT …………………………….....32;
          5310-01-185-7218   LOCKWASHER …………………...32

2.         GEARED HUB PARTS KIT
                                    (consist of the following items):
            5330-01-456-3884   SEAL…………………………………4
            5330-01-203-6551   SPINDLE SEAL……………………..4
            5310-01-213-4185   LOCK WASHER, SPINDLE………..4
            5310-01-176-0839   WASHER, FLAT…………………….4
            5310-01-231-0596   WASHER, LOCK UPPER………….4


3.         FUEL SEPARATOR   NSN 4330-01-189-0889………….1

4.         FUEL FILTER       NSN ………………1

5.         MACHINE TREAD PLUGS   NSN 5365-01-305-7067…..2
6.         TRANS. OIL FILTER KIT   NSN 2520-01-121-6350…….1

7.        OIL FILTER   NSN  ……………………1

FOR  M998, M1038, M1025, M1026, M1037, M1097, M1113, M997 SERIES
