Military Landing Craft Air Cushion 2-161-109-03 90.0 degrees nominal Steel ANGLE BRACKET NSN 5340-00-890-7775 OEM New

HONEYWELL INTERNATIONAL INC 2-161-109-03 Angle Bracket (5340-00-890-7775)

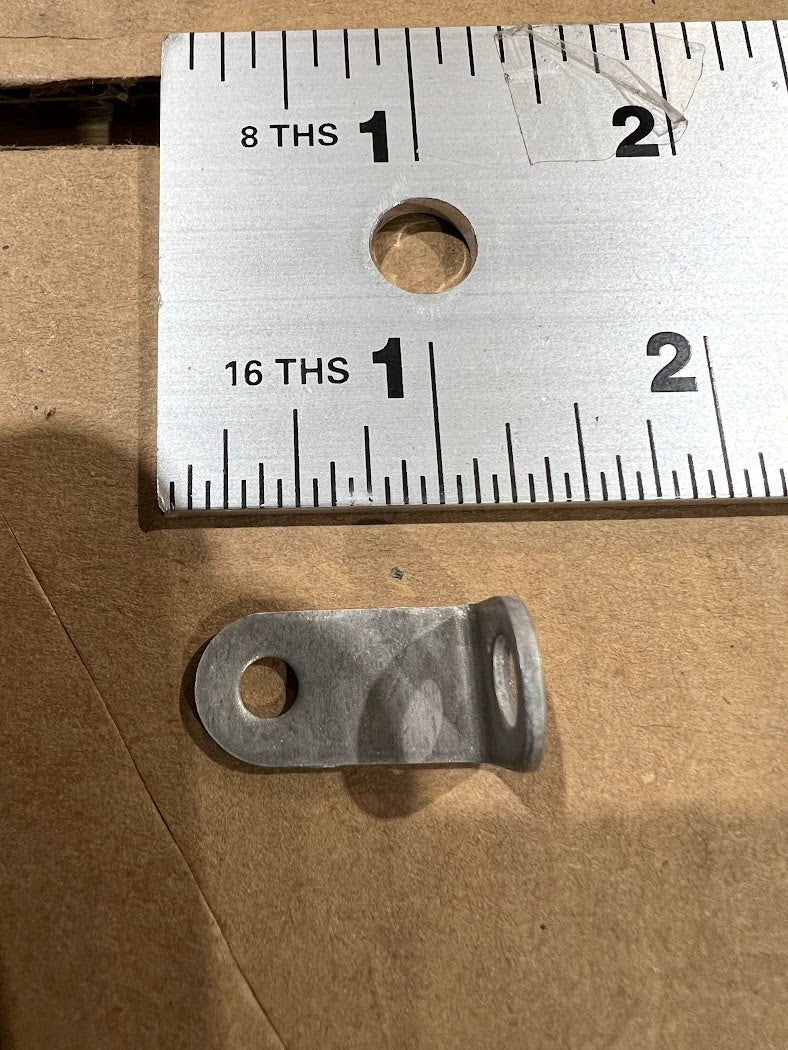

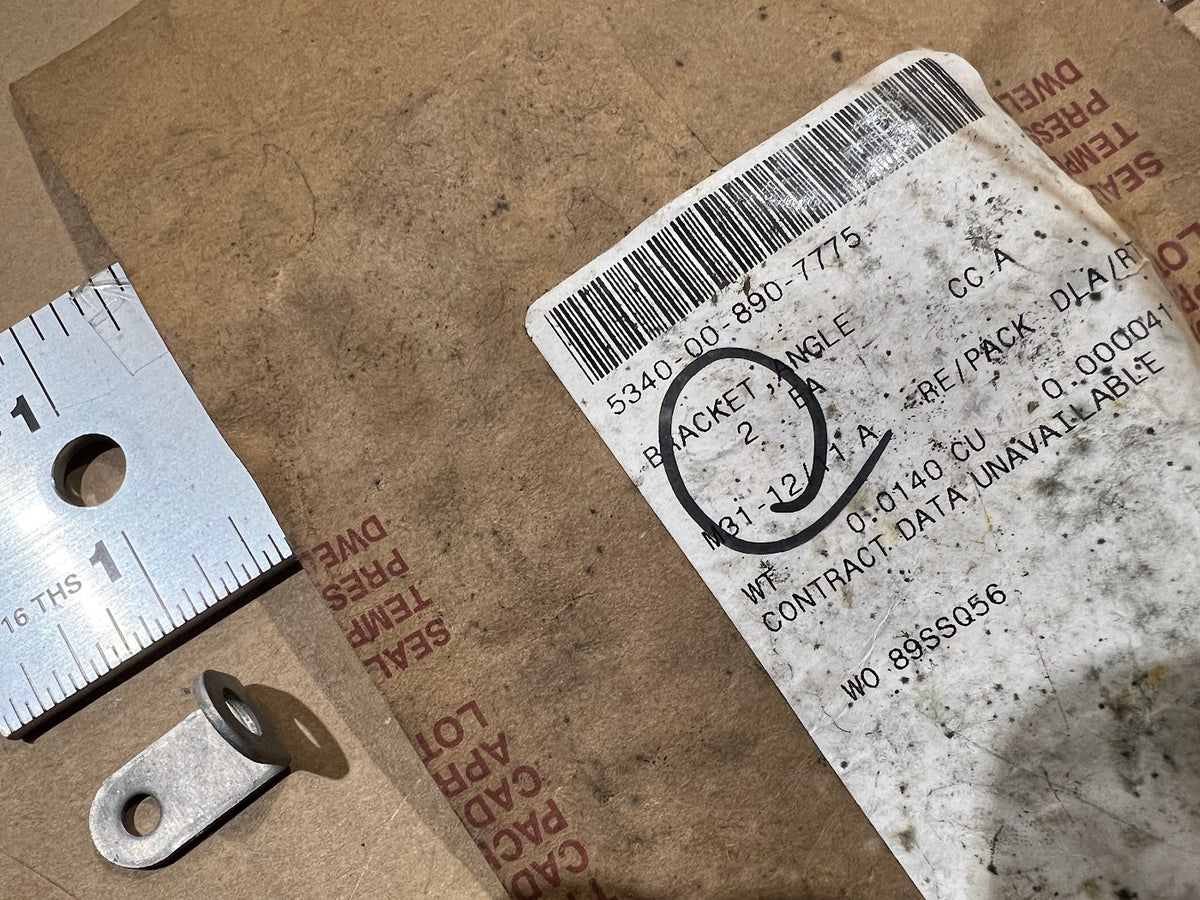

Steel angle bracket, 90.0 degree nominal angle, for Military Landing Craft Air Cushion.

Part Information

• Manufacturer: Honeywell International Inc.
• Part Number: 2-161-109-03
• NSN: 5340-00-890-7775
• End Item: Military Landing Craft Air Cushion

Specifications

• Material: Steel Comp 321
• First Leg Length: 0.670–0.710 in
• Second Leg Length: 1.110–1.150 in
• First Leg Width: 0.490–0.510 in
• Second Leg Width: 0.490–0.510 in
• First Leg Thickness: 0.057–0.069 in
• Second Leg Thickness: 0.057–0.069 in
• First Leg Hole Diameter: 0.270–0.290 in
• Second Leg Hole Diameter: 0.210–0.230 in
• First Leg Angle: 90.0 degrees nominal
• Second Leg Relationship to First Leg: Not identical
• Material Document and Classification: ASSN STD, Single Material Response, A-S 5510
