M1095 Mtv 5-TON Oshkosh Defense 12423293 Multiple Angle Bracket | NSN 5340-01-709-0045
M1095 Mtv 5-TON Oshkosh Defense 12423293 Multiple Angle Bracket | NSN 5340-01-709-0045
Regular price
$2,008.62 USD
Regular price
Sale price
$2,008.62 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 5340-01-709-0045 Specs and cross-references for NSN 5340-01-709-0045 (opens in a new tab) ↗
12423293 Ladder Plug (NSN 5340-01-709-0045)

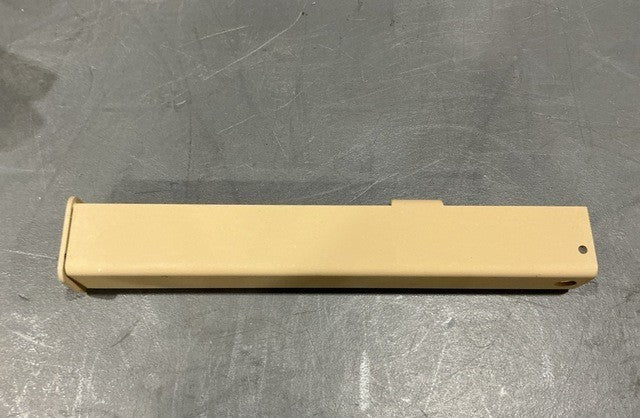

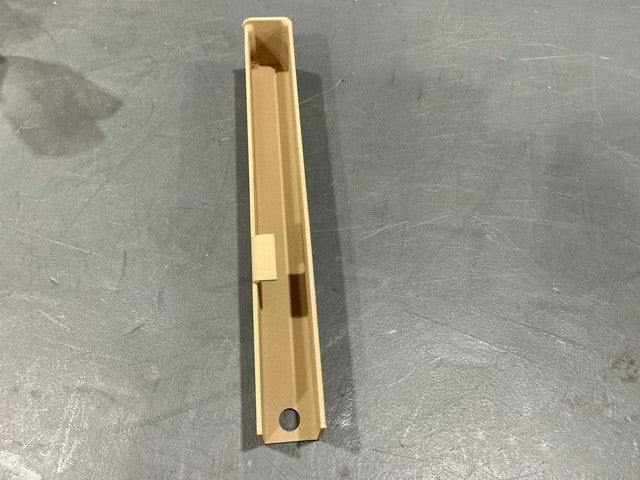

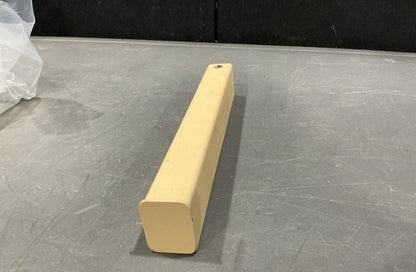

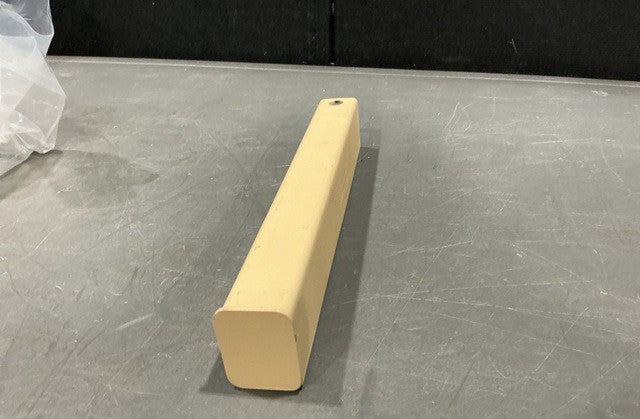

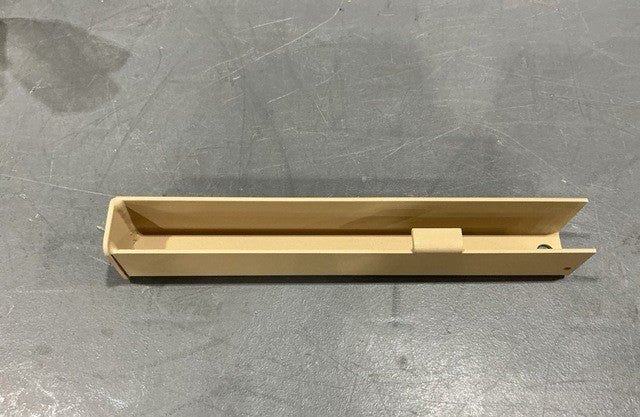

Steel multiple angle bracket, ladder plug, with two mounting holes, for the M1095 MTV 5-TON.
Part Information
- Design Control Activity: U S Army Tank Automotive Command
- Part Number: 12423293
- NSN: 5340-01-709-0045
- End Item: M1095 MTV 5-TON
Specifications
- Overall Length: 295.7 mm
- Overall Height: 47.0 mm
- Overall Width: 36.0 mm
- Material Thickness: 2.667 mm
- Hole Quantity: 2
- First Leg Angle: 3.0 radians
- Second Leg Angle: 3.0 radians
- Material: Steel, ASTM A606 Type 4, or ASTM A1008 CS Type B, or ASTM A1011 CS Type B, 0.105 in (12GA) sheet
- Surface Treatment: Primer and CARC (Chemical Agent Resistant Coating)
