M9 Ace Combat Excavator 13211E8877 Prebent Metal Tube Assembly | NSN 4710-01-192-9816
M9 Ace Combat Excavator 13211E8877 Prebent Metal Tube Assembly | NSN 4710-01-192-9816
Regular price
$59.25 USD
Regular price
Sale price
$59.25 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
NSN 4710-01-192-9816 Specs and cross-references for NSN 4710-01-192-9816 (opens in a new tab) ↗

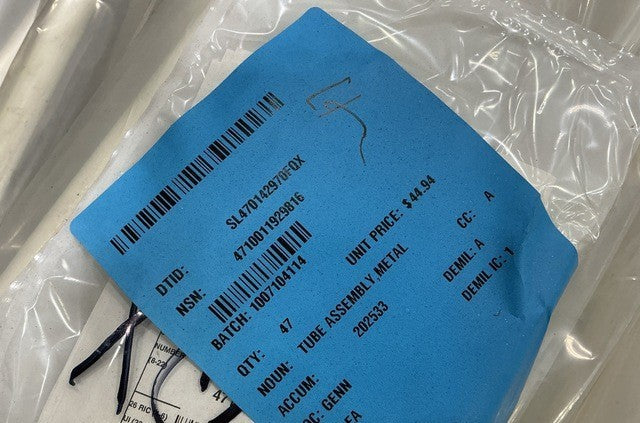

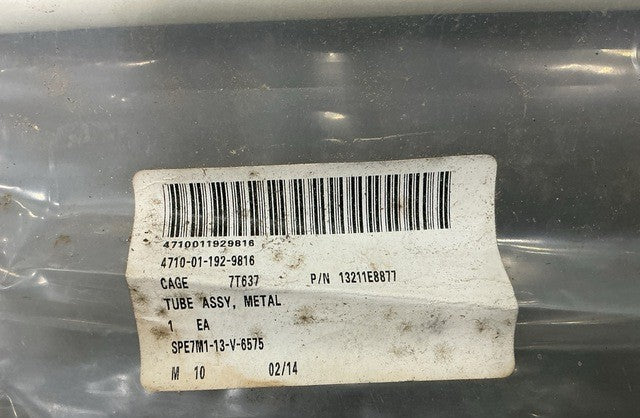

13211E8877 Prebent Metal Tube Assembly (NSN 4710-01-192-9816)

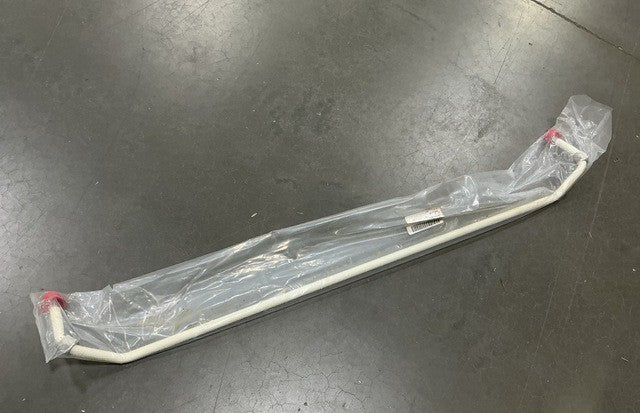

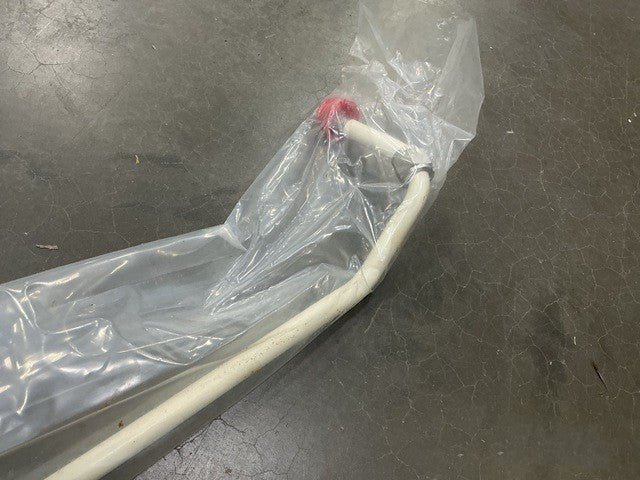

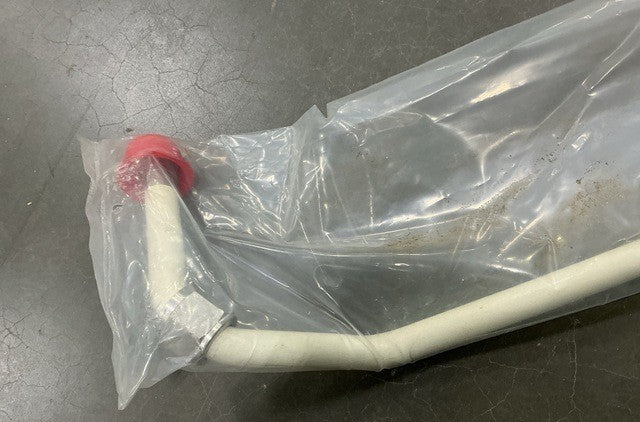

Prebent steel metal tube assembly for the M9 Ace Combat Excavator.
Part Information
- Design Control Activity: CECOM LR Center
- Part Number: 13211E8877
- NSN: 4710-01-192-9816
- End Item: M9 Ace Combat Excavator
Specifications
- Design Form: Prebent
- Wall Thickness: 0.065 in nominal
- Tube Outside Diameter: 0.625 in nominal
- Mating End Quantity: 2
- Thread Class: 3B
- Thread Direction: Single end, right-hand
- Thread Series: Unified National Joint Fine (UNJF)
- Nominal Thread Size: Single end, 0.875 in
- Seat Angle: 33.0 deg
- End Connection Spec: MS20819-10 and AN818-10
- Material, Tubing: Steel, Comp 304
- Material, Single End: Steel
- Material Document: MIL-T-6845, Type 304
