M977 SERIES TRUCK BENDIX 806527 BRAKE SHOE ACTUATING CAMSHAFT 2530-01-511-0241

Spicer Heavy Axle & Brake, Inc. 18-942 Actuating Camshaft (2530-01-511-0241)

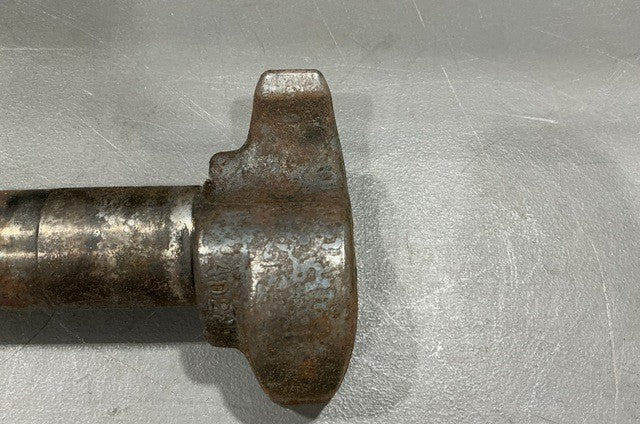

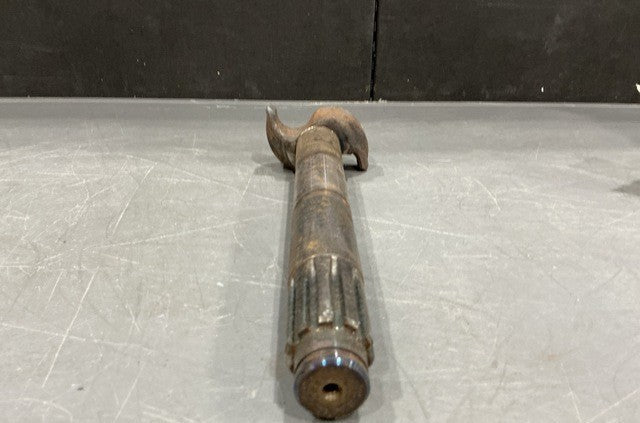

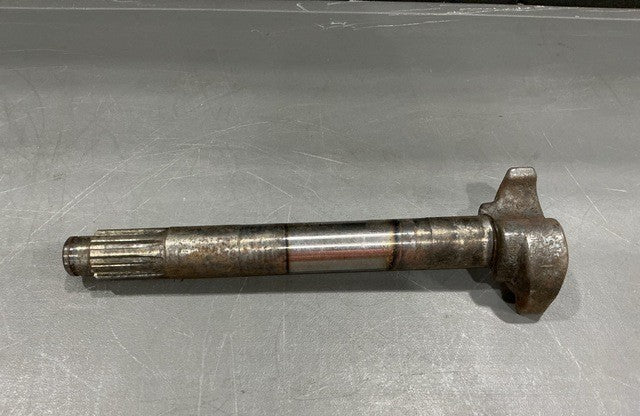

S-cam brake shoe actuating camshaft, right-hand, 10-spline, for the M977 series truck.

Part Information

• Manufacturer: Spicer Heavy Axle & Brake, Inc.
• Part Number: 18-942
• NSN: 2530-01-511-0241
• End Item: M977 Series Truck

Specifications

• Part Name Assigned by Controlling Agency: S-Cam
• Spline Quantity: 10
• Drive Type: Straight Spline
• Shaft Diameter: 1.500 in nominal
• Shaft Length: 11.500 in nominal
• Cam Width: 1.500 in nominal
• Cam Quantity: 1
• Cam Location: On End
• Cam Shape: S
• Cam Center Thickness: 1.125 in nominal
• Special Features: 16-1/2 drive axle brake or ES extended service brake application w/ 1-1/2 x 10 spline, 1-1/2 diam at spider. Uses camshaft repair kit 43-7068 (severe service bronze spider bushing) or 43-7069 (all nylon bushing).
• Supplementary Features: RH right hand side
