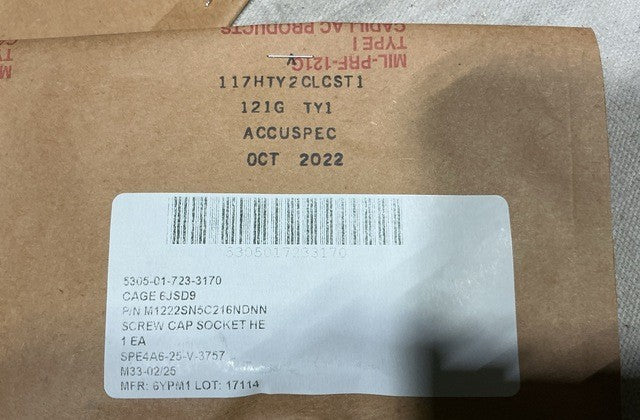

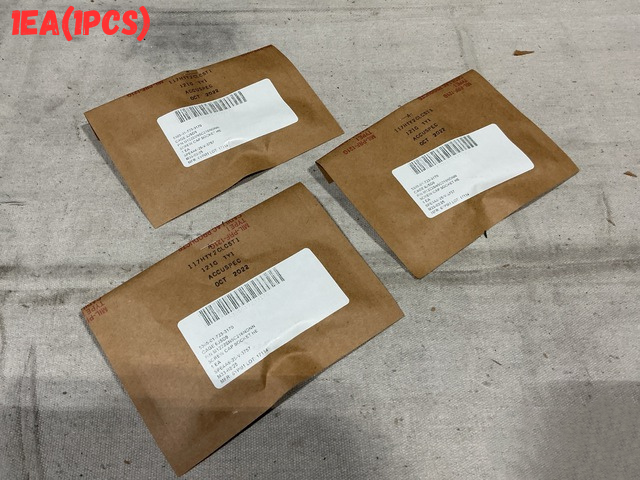

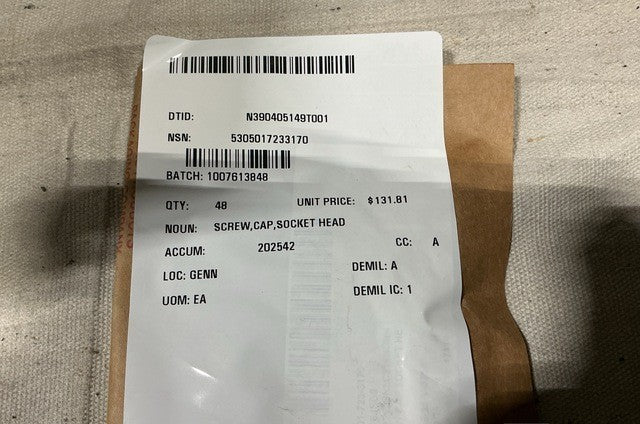

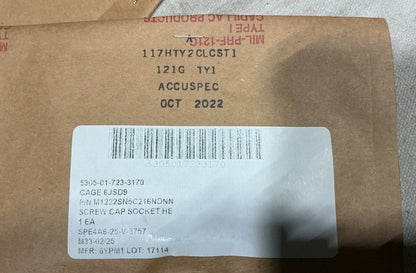

MIDWEST MILITARY FASTENERS M1222SN5C216NDNN HEXAGON CAP SCREW 5305-01-723-3170

BAE Systems 6962249P3 Socket Head Cap Screw (NSN 5305-01-723-3170)

Nickel alloy socket head cap screw, 5/16-18 UNC-2A thread, 1.000 in nominal length.

Part Information

• Manufacturer: BAE Systems
• Part Number: 6962249P3
• NSN: 5305-01-723-3170
• CAGE Code: (see record)

Specifications

• Thread Class: 2A
• Thread Direction: Right-hand
• Thread Series: Unified National Coarse (UNC)
• Nominal Thread Diameter: 0.3125 in
• Threads Per Inch: 18
• Thread Length: 0.875 in nominal
• Fastener Length: 1.000 in nominal
• Head Diameter: 0.457–0.469 in
• Head Height: 0.306–0.312 in
• Width Across Flats: 0.250 in
• Chamfer Angle: 30.0–45.0 degrees
• Minimum Tensile Strength: 120,000 psi
• Minimum Yield Strength: 60,000 psi
• Material: Nickel alloy, ASTM B446 Grade 1, annealed
• Specification: 81349-IL-DTL-1222J
