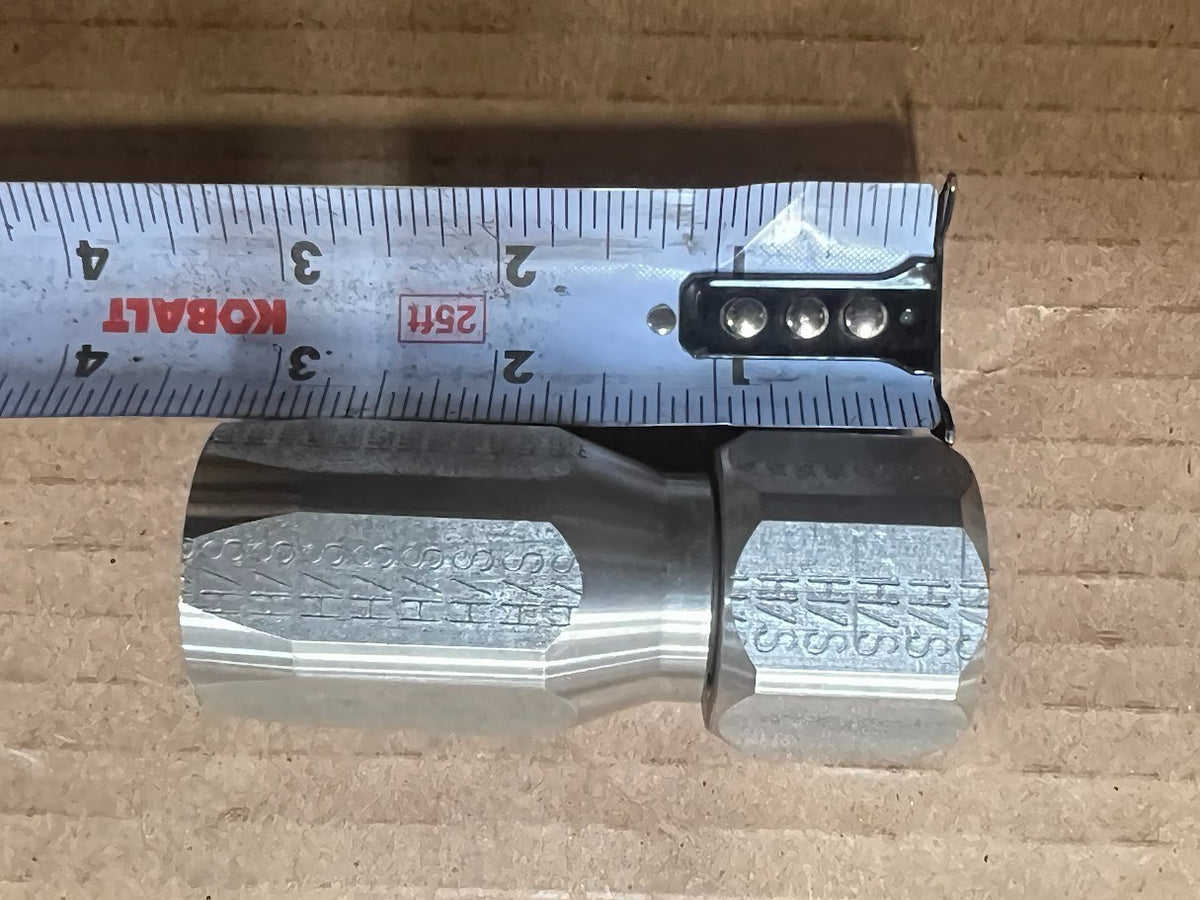

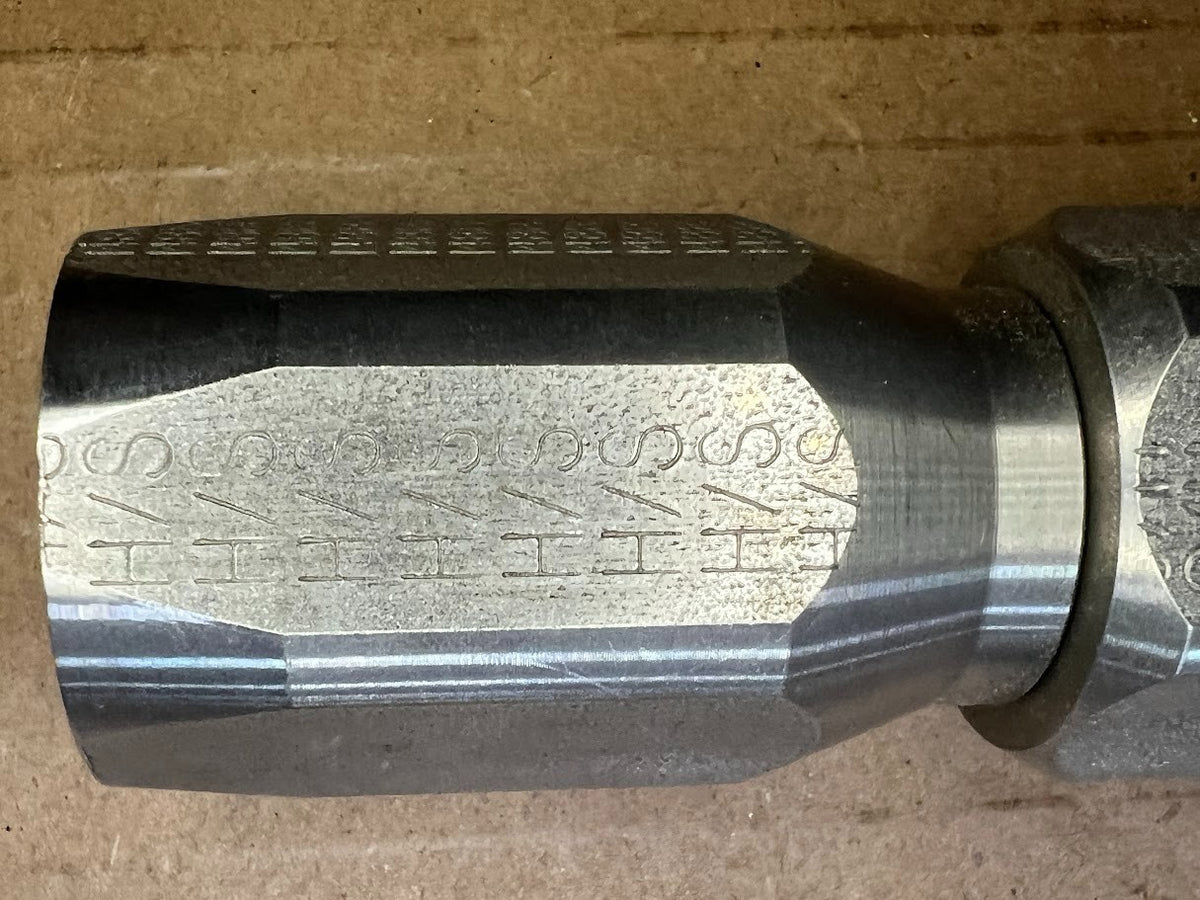

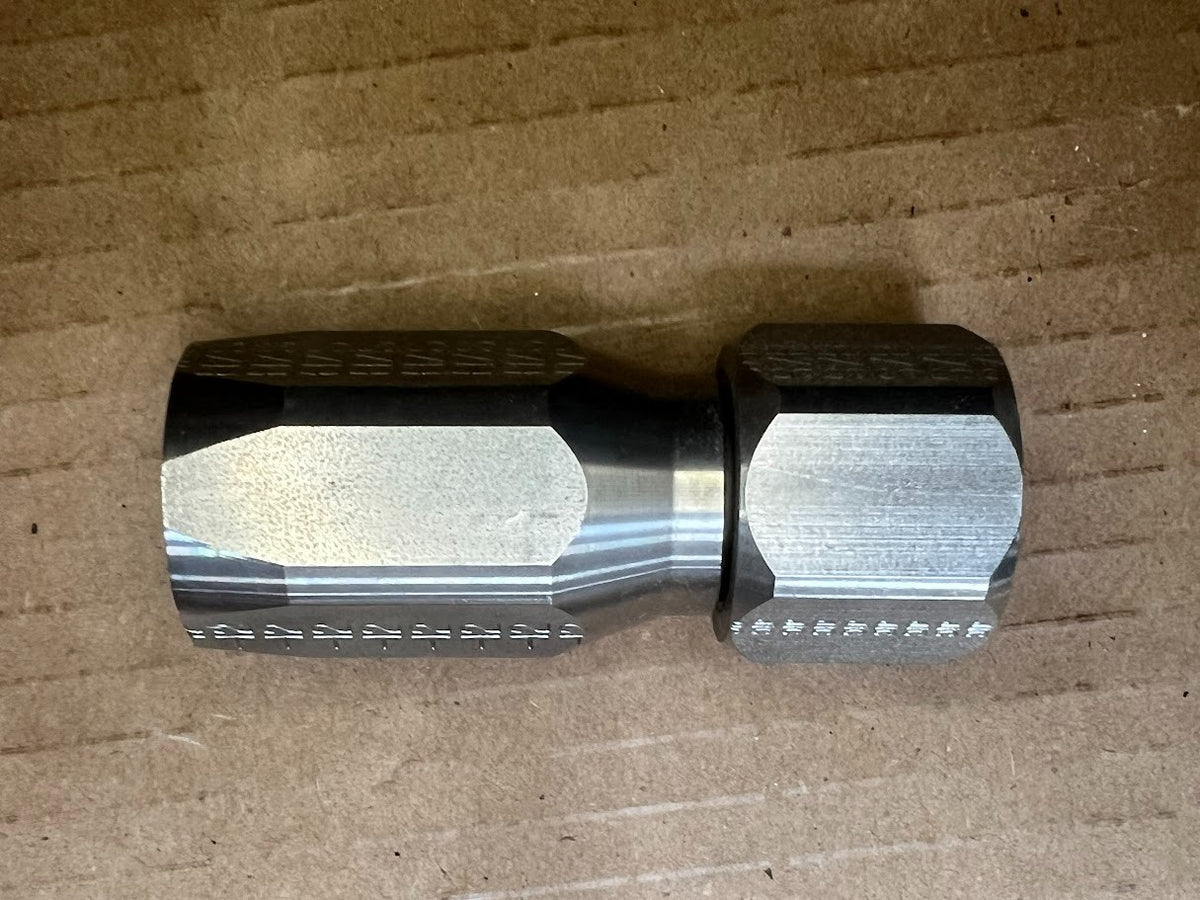

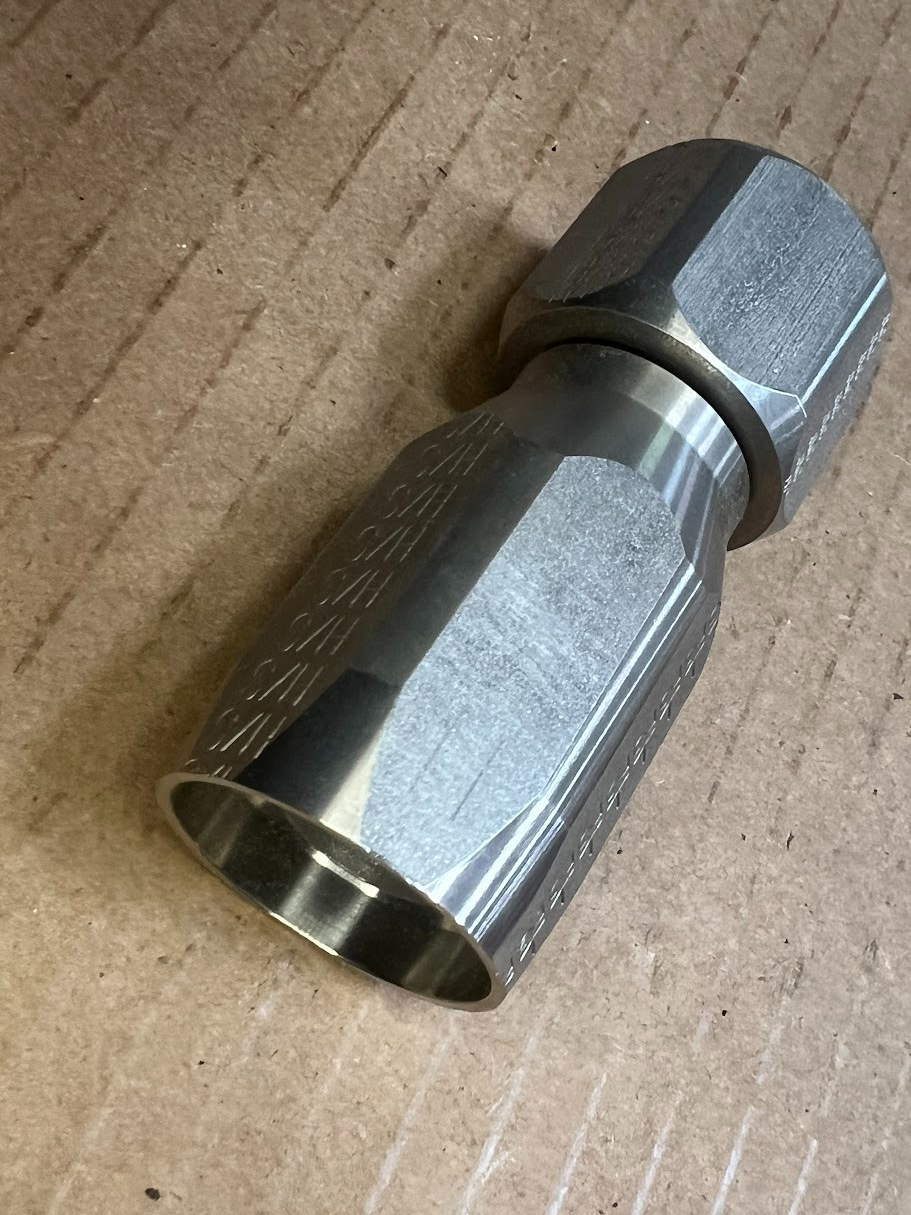

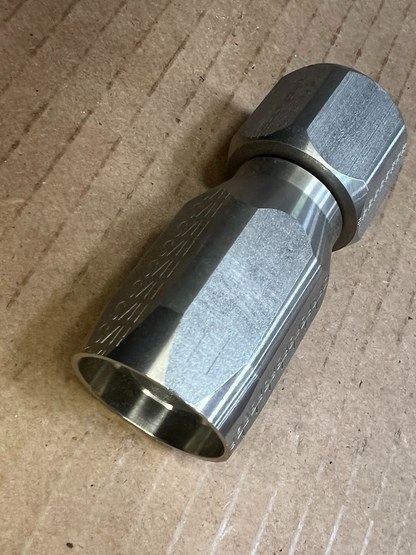

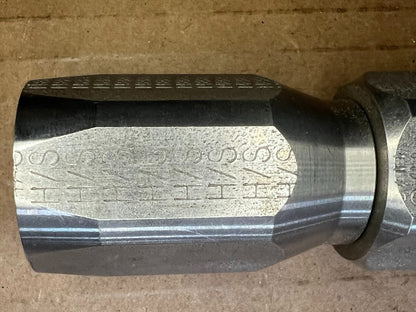

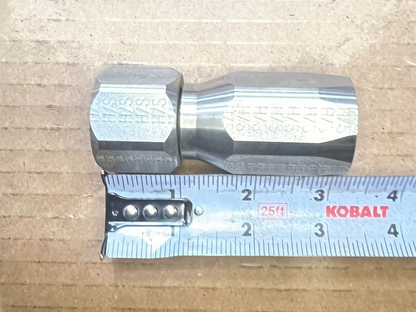

MILITARY EF-SS1488A-1212 TUBE TO HOSE STRAIGHT ADAPTER 319-12CR 4730-01-386-0656

DANFOSS POWER SOLUTIONS II, LLC 10-411-12 Straight Tube To Hose Adapter (NSN 4730-01-386-0656)

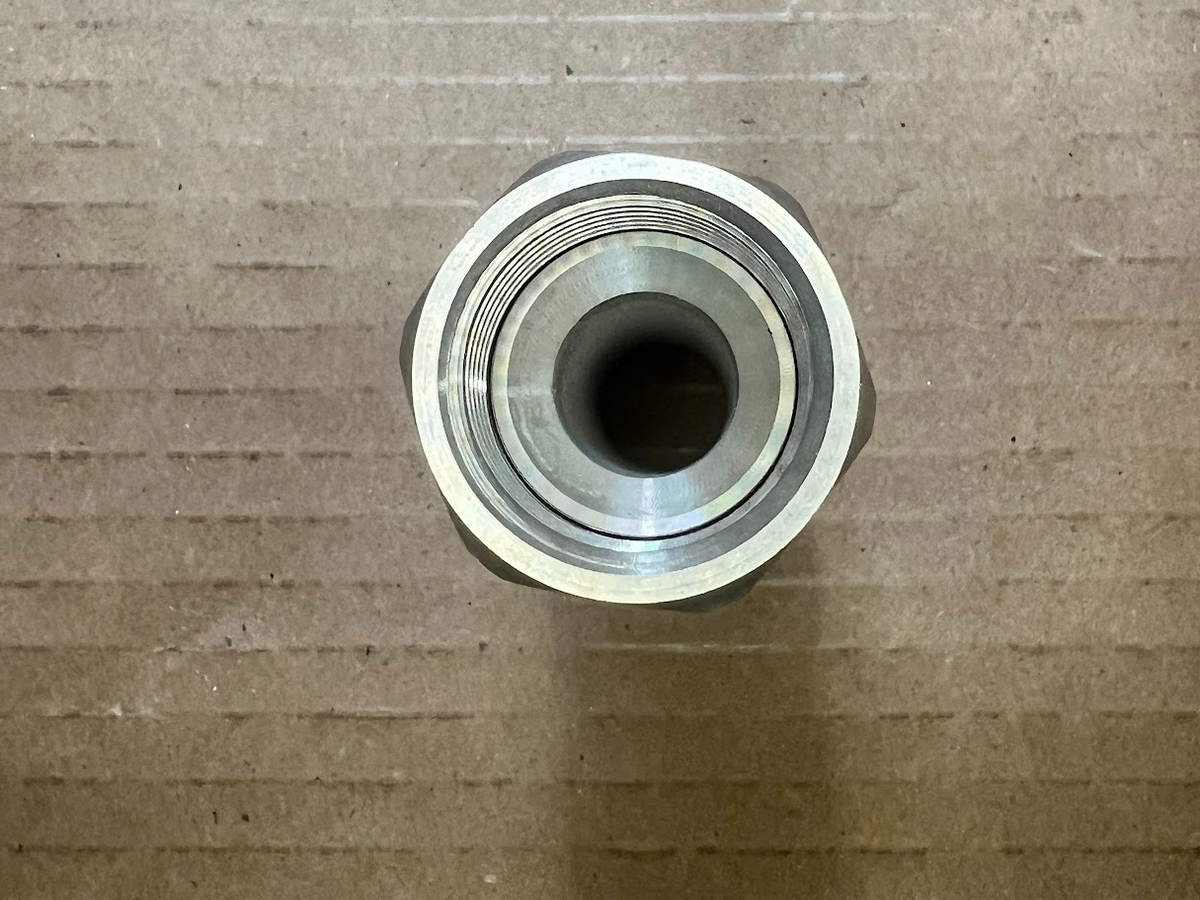

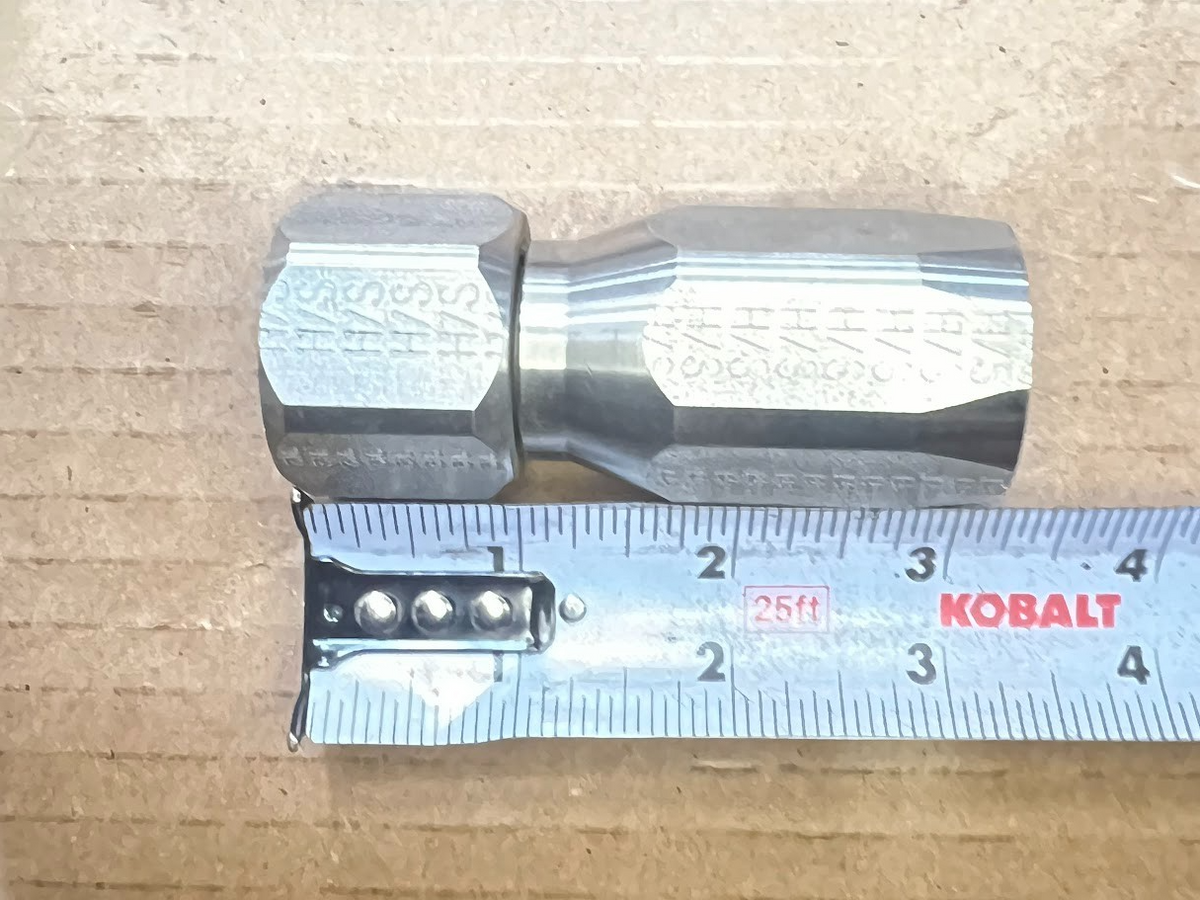

Steel corrosion resisting straight adapter, threaded internal tube first end, threaded external hose gripping second end.

Part Information

• Manufacturer: Danfoss Power Solutions II, LLC
• Part Number: 10-411-12
• NSN: 4730-01-386-0656
• CAGE Code: (see record)

Specifications

• Thread Class: 2B
• Connection Type (First End): Threaded Internal Tube
• Connection Type (Second End): Threaded External Hose Gripping
• Thread Quantity Per Inch: 12
• Nominal Thread Size (First End): 1.063 in
• Seat Angle (First End): 37.0 degrees
• Nominal Inside Diameter Hose Accommodated (Second End): 0.610 in
• Nominal Outside Diameter Tube Accommodated (First End): 0.750 in
• Nominal Overall Length: 3.150 in
• Material: Steel, Corrosion Resisting
• Media For Which Designed: Water-Oil-Gas
• Thread Series Designator (First End): UN
