MILITARY HOWIE 7539663 FLAT CHAMFER HEADED STRAIGHT PIN 66742 5315-00-753-9663

5315007539663 Headed Straight Pin (5315-00-753-9663)

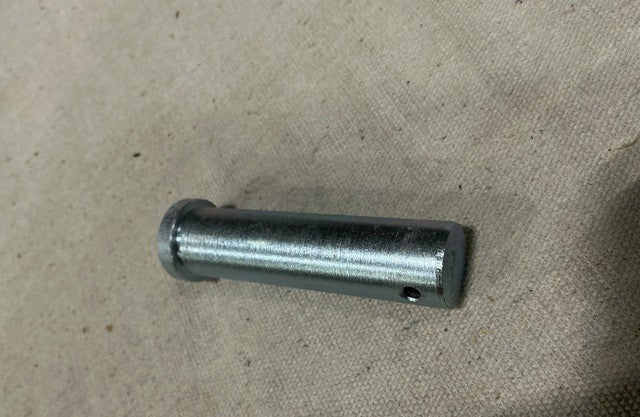

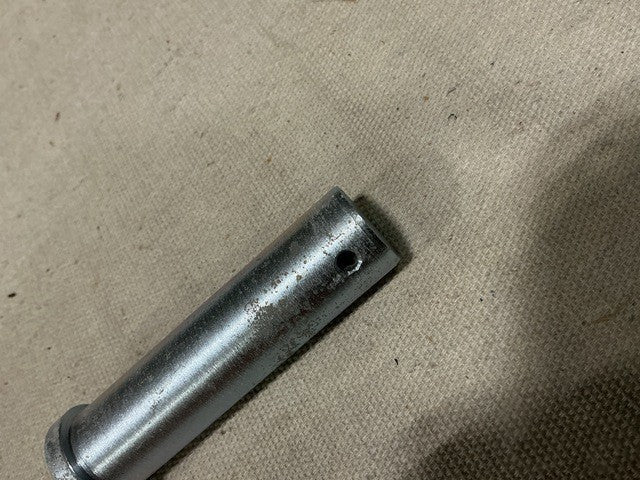

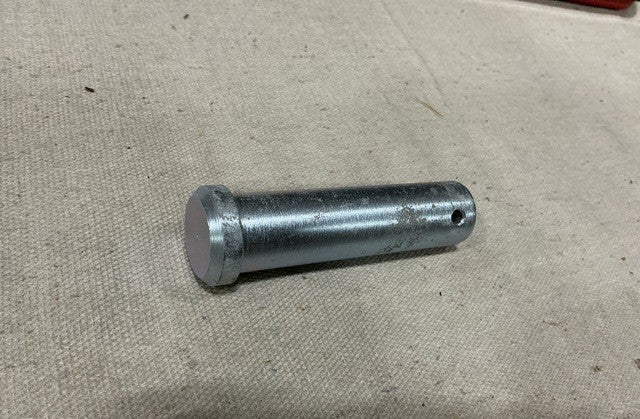

Steel headed straight pin, case-hardened, zinc-plated finish.

Part Information

• Design Control Activity: E.C.A ETABLISSEMENT CENTRAL DES
• Part Number: 5315007539663
• NSN: 5315-00-753-9663

Specifications

• Material: Steel Comp 1010 or Steel Comp 1111
• Surface Treatment: Zinc, FED SPEC QQ-Z-325 TY 1 CL1
• Features: Case-hardened
• Diameter: 0.859–0.891 in
• Under Head Length: 3.234–3.266 in
• Head Diameter: 1.047–1.078 in
• Height: 0.297–0.328 in
• Chamfer Length: 0.047–0.078 in
• Chamfer Angle: 15.0° nominal
• First Hole Diameter: 0.156–0.188 in
• Hole-to-End Distance: 0.312 in nominal
