MILITARY PA024-100 110AC REAR ROTARY SWITCH PA2000M 564021-101 5930-00-787-7234

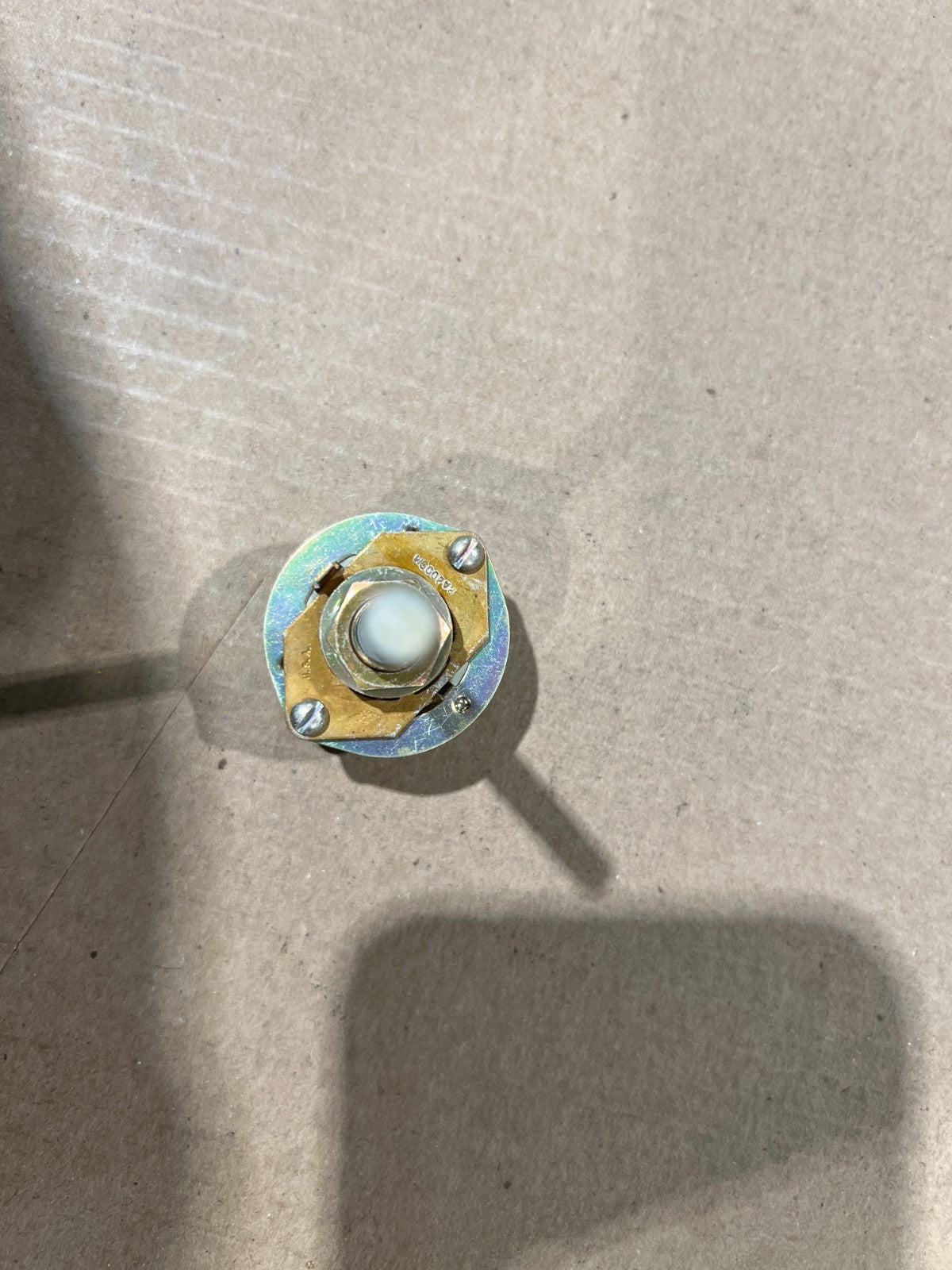

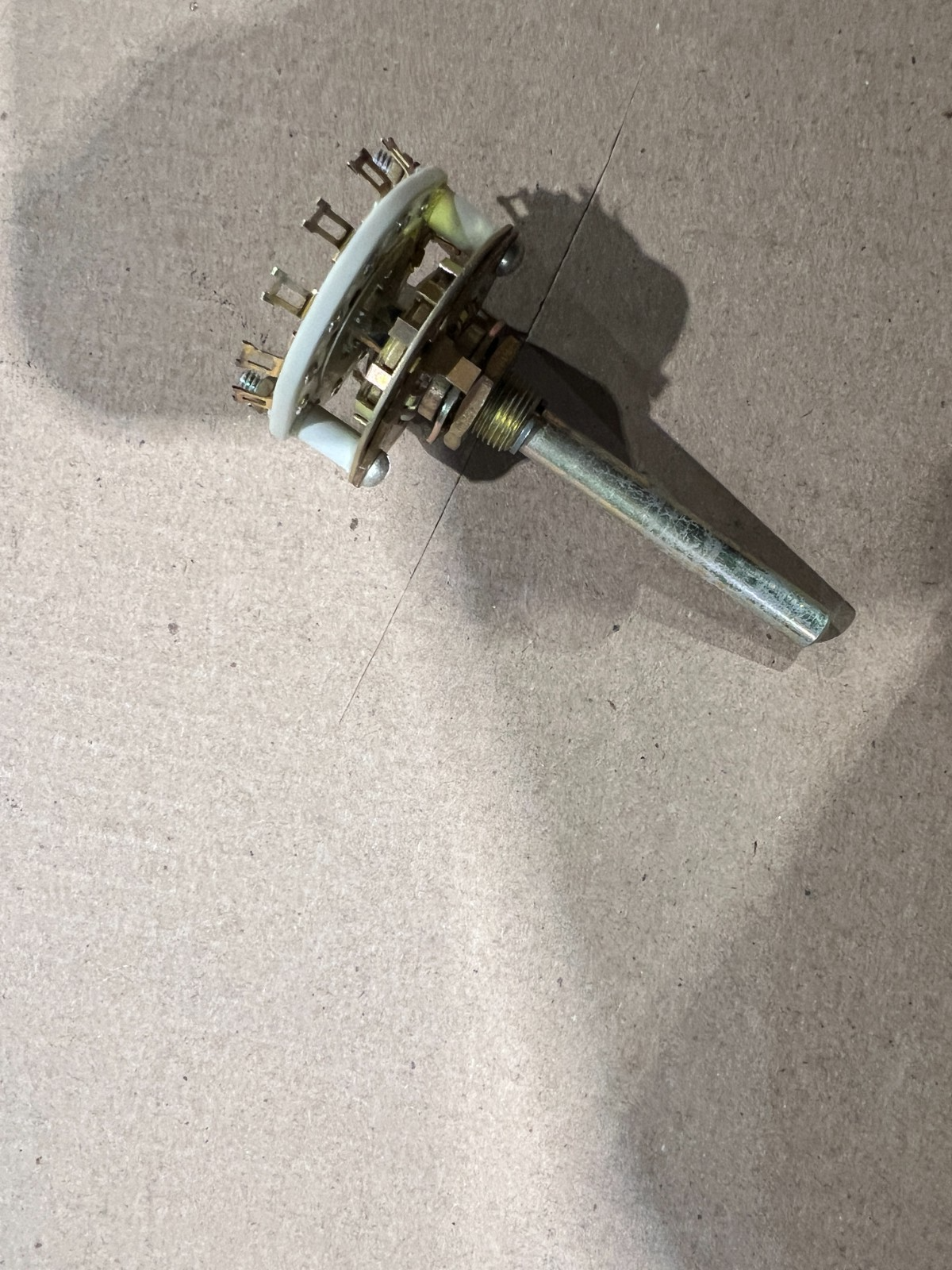

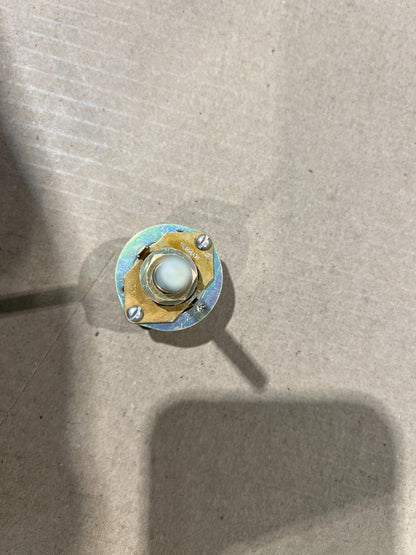

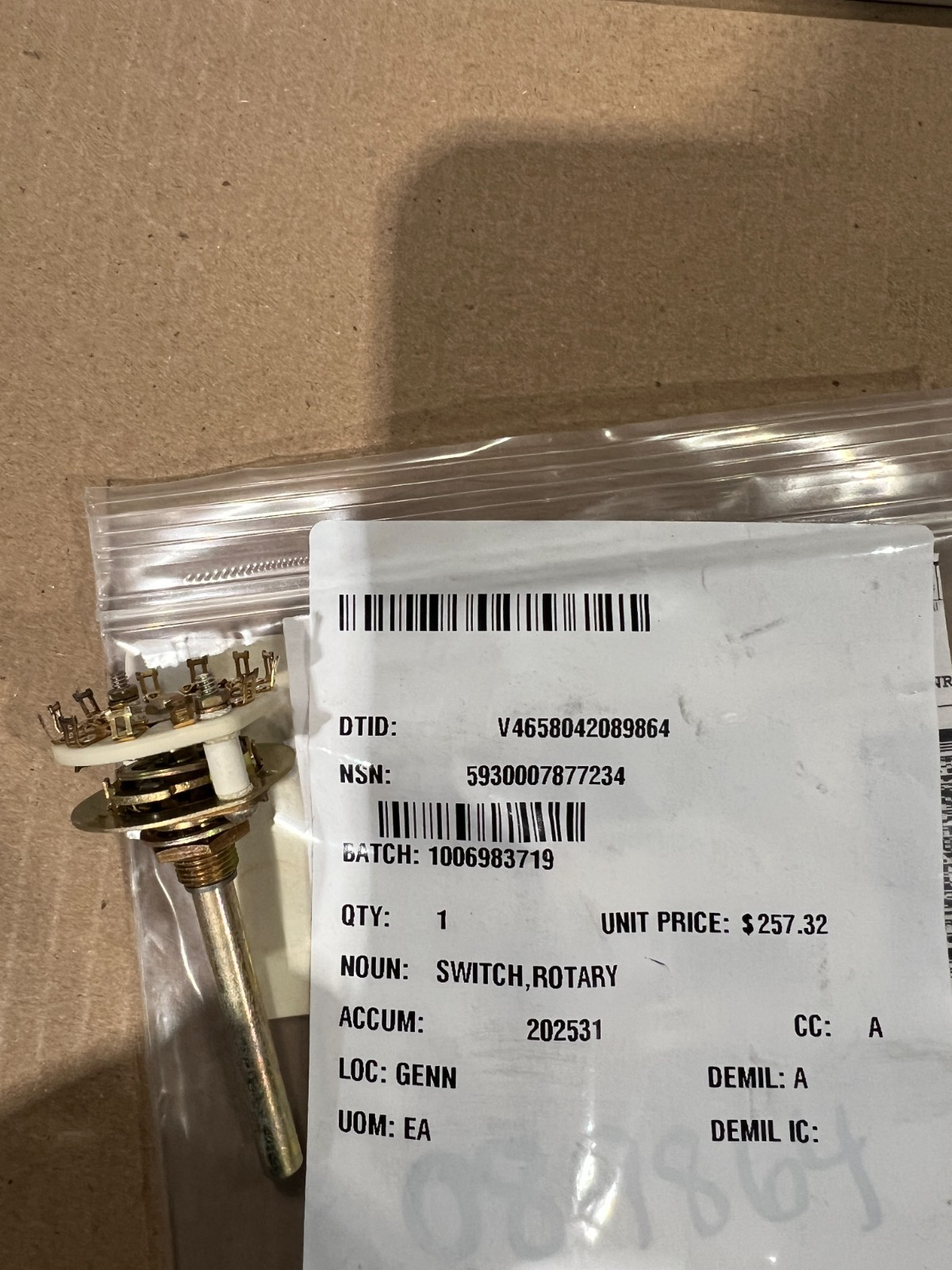

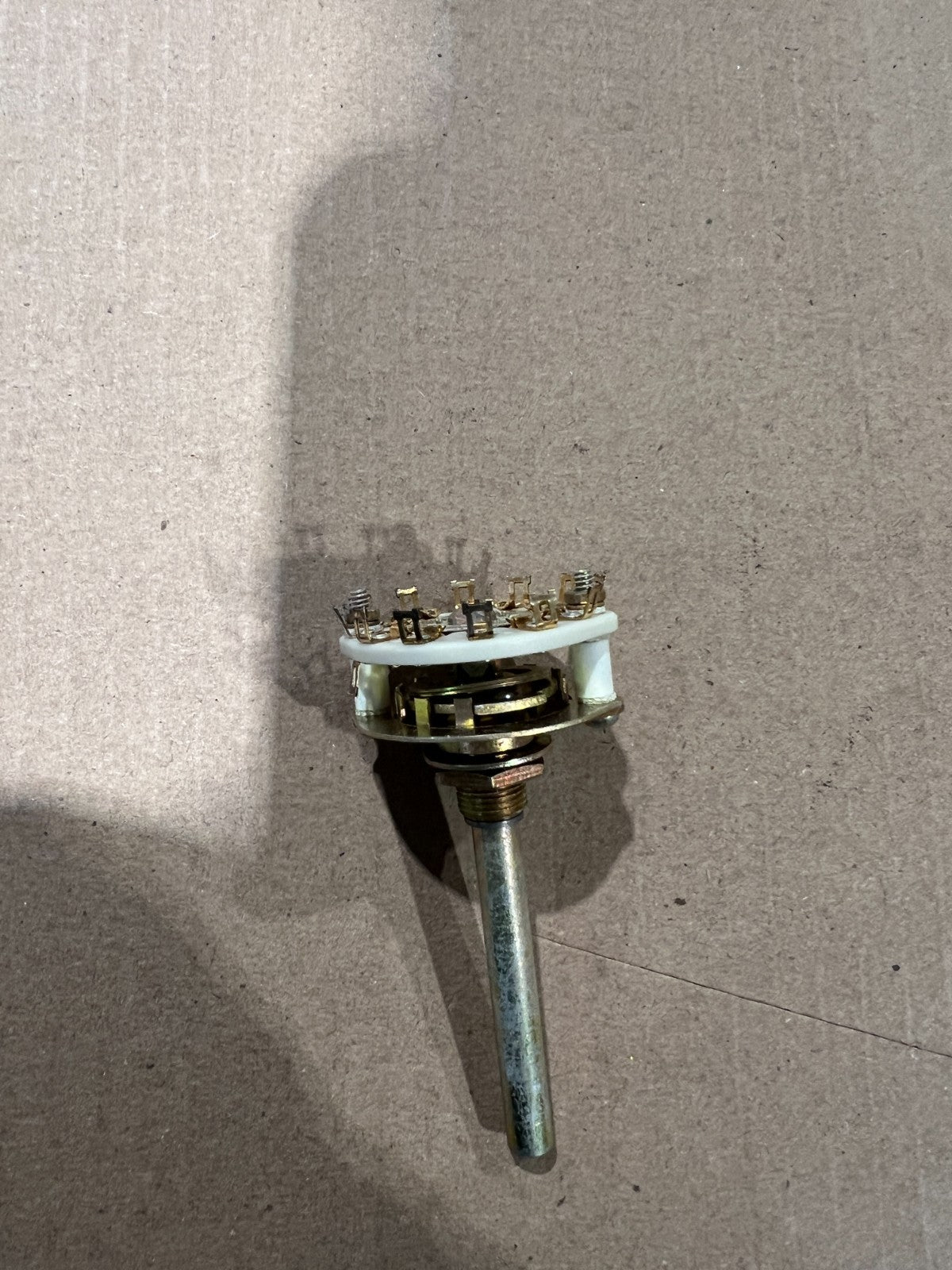

ELECTRO SWITCH CORP PA024-100 Rotary Switch (5930-00-787-7234)

Rotary switch, single pole double throw, 110V AC rated.

Part Information

• Manufacturer: Electro Switch Corp
• Part Number: PA024-100
• NSN: 5930-00-787-7234

Specifications

• Mounting: Single mounting facility, threaded bushing, 0.375 in UNEF thread
• Actuator Shaft: Round, 0.250 in diameter, 0.875 in length
• Pole Quantity: 1
• Throw Quantity: 2
• Switch Actuator Indexing Positions: 2
• Actuator Positioning Increment: 30.0 degrees
• Contact Design: Nonpile-up symmetrical
• Contact Switching Action: Makes before breaks (single section rear)
• Terminal Type: Tab, solder lug
• Contact Voltage Rating: 110.0V / 15.0V
• Contact Load Current Rating: 150.0 mA AC (resistive, sea level) / 2.0 A DC (resistive, sea level)
