MILITARY UTILITY TRUCK MERITOR 23123803 ROTOR DISC BRAKE 2530-01-673-1114 NOS

MILITARY UTILITY TRUCK MERITOR 23123803 ROTOR DISC BRAKE 2530-01-673-1114 NOS

$1,092.54 USD
$1,092.54 USD
Sale Sold out
Shipping calculated at checkout.

NSN 2530-01-673-1114 Specs and cross-references ↗

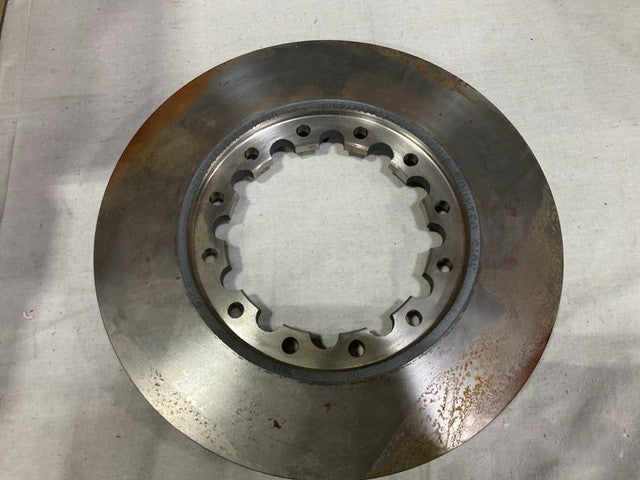

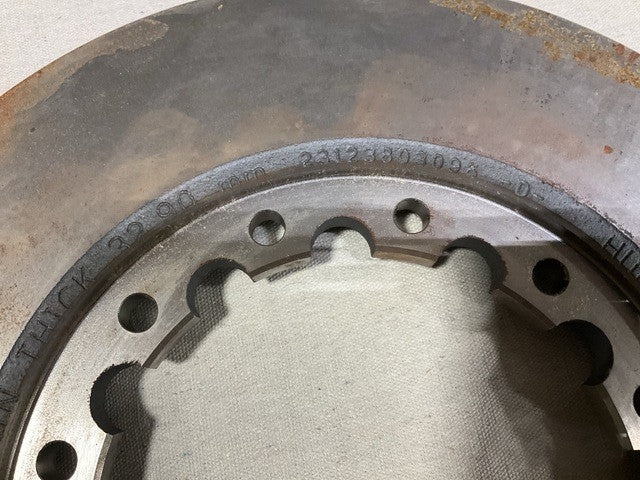

OSHKOSH DEFENSE LLC 4040644 Disc Brake Rotor (2530-01-673-1114)

Gray iron disc brake rotor for the JLTV.

Part Information

  • Manufacturer: Oshkosh Defense LLC
  • Part Number: 4040644
  • NSN: 2530-01-673-1114
  • End Item: JLTV

Specifications

  • Overall Diameter: 405.0 mm nominal
  • Overall Width: 36.0 mm nominal
  • Bolt Circle Diameter: 213.0 mm nominal
  • Mounting Hole Diameter: 13.5 mm nominal
  • Mounting Hole Quantity: 12
  • Spline Minor Diameter: 183.0 mm nominal
  • Spline Quantity: 12
  • Material: Gray iron, SAE J431 G11
  • Minimum Tensile Strength: 240 MPa
